| Article number: | 10.15.055 |
Specifications :
|
Drawing number |
10.15.055 |
|
Description |

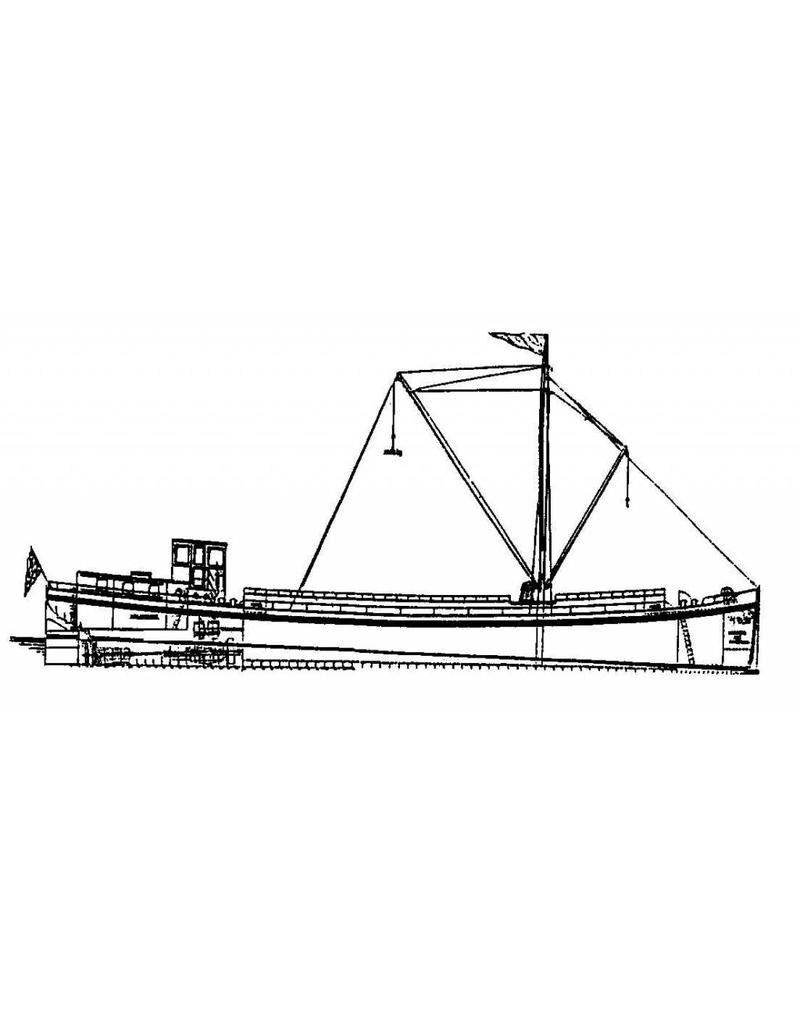

motor cargo boat, luxury motor yacht |
|
Quality |

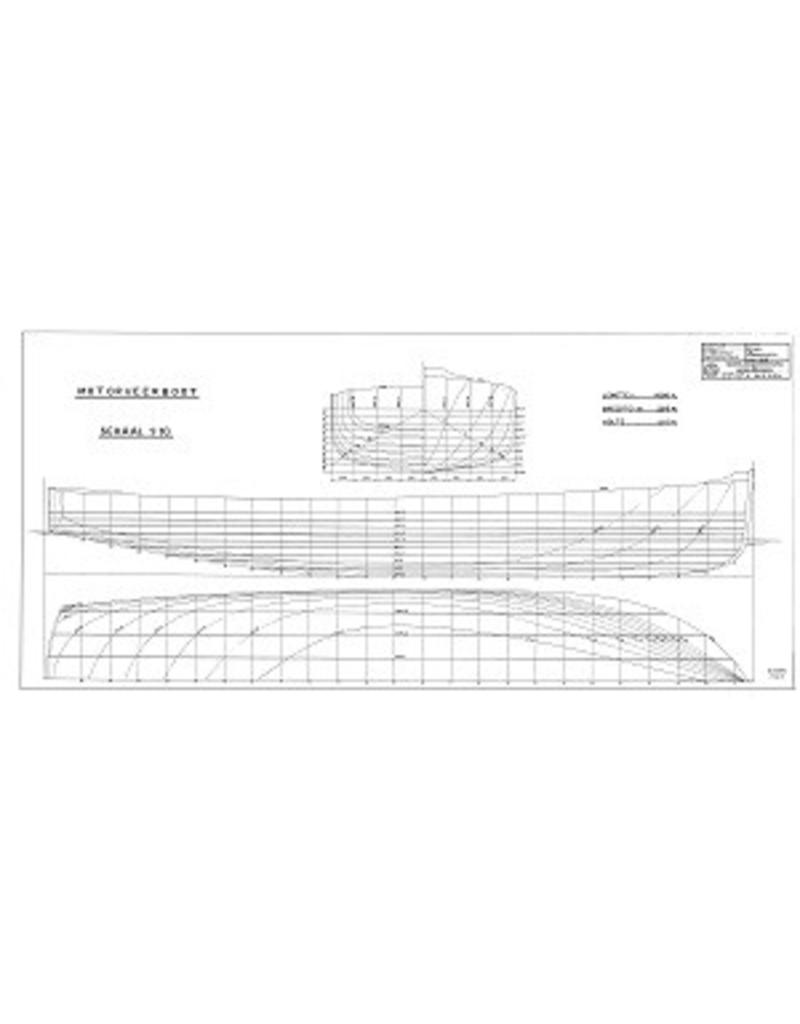

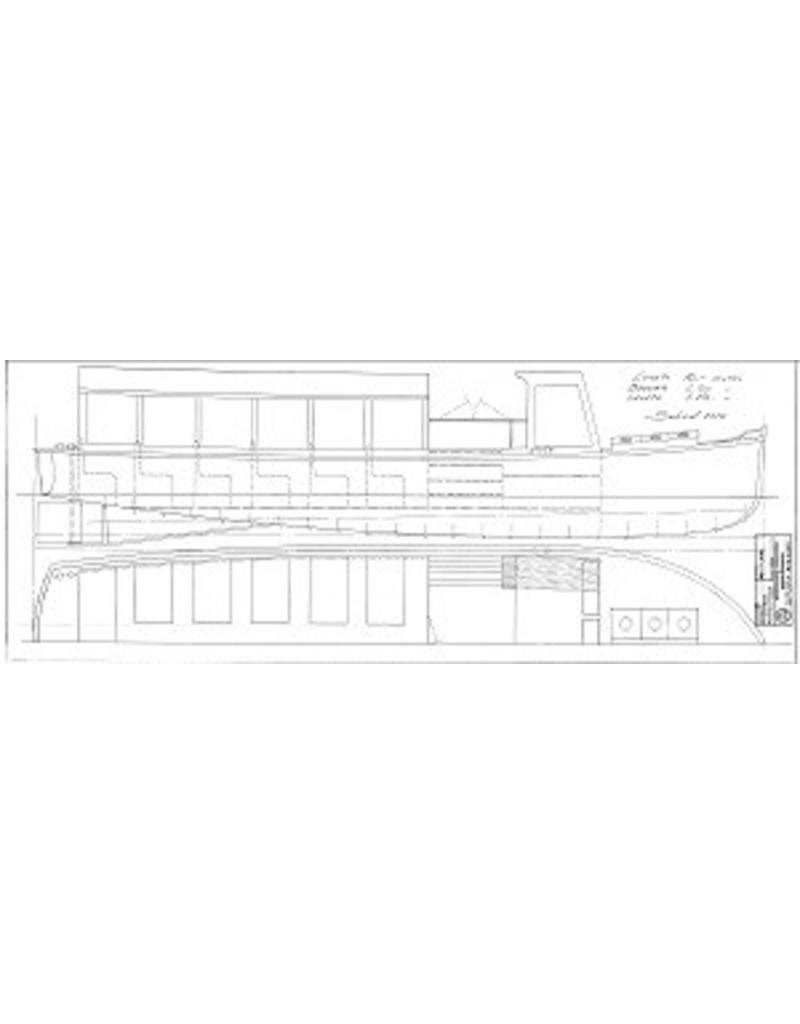

frames/lines; side view and deck plan 1:50 |
|
Scale |
1 : 25 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Details |
l.o.a. 126 cm (based on frames/lines plan) |
|
Remarks |
