| Article number: | 10.15.061 |
Specifications :
|
Drawing number |
10.15.061 |
|
Description |
river car carrier - (1984) - VTR |
|
Quality |

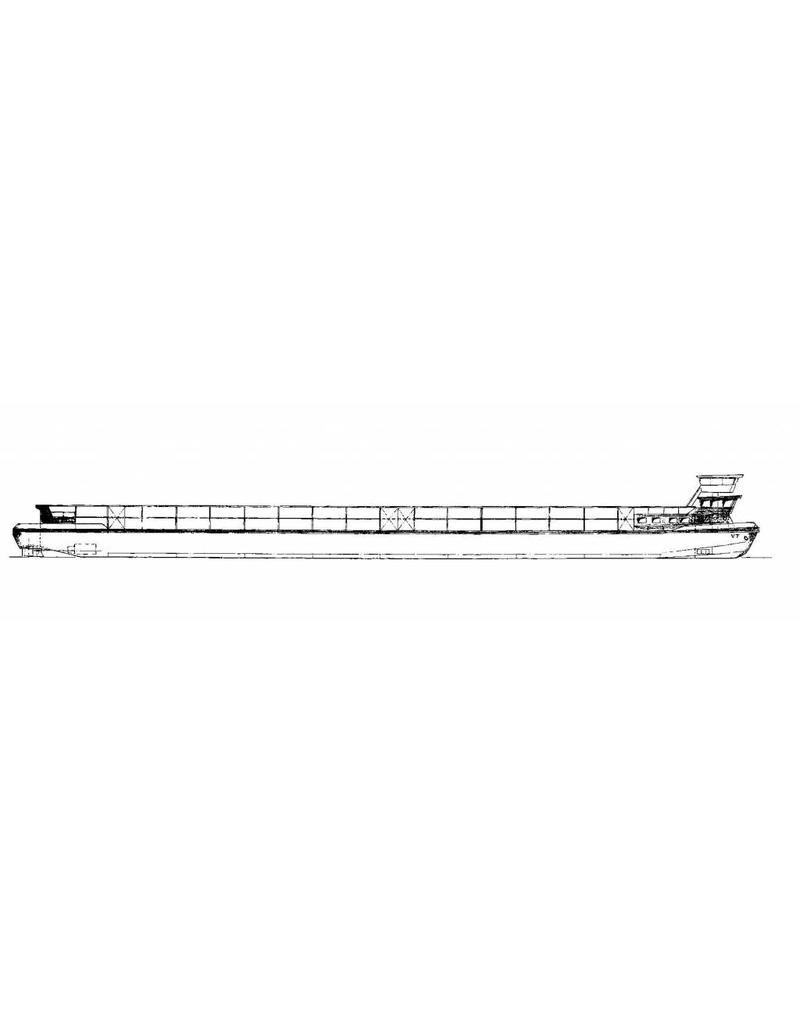

The drawing only shows 2 frames, but it concerns an almost rectangular ship; side view; deck plans |
|
Scale |
unknown |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
l.o.a. 55 cm |
|
Remarks |
