| Article number: | 10.18.009 |
Specifications :
|
Drawing number |
10.18.009 |
|
Author |
W.H. Cnossen |
|
Description |

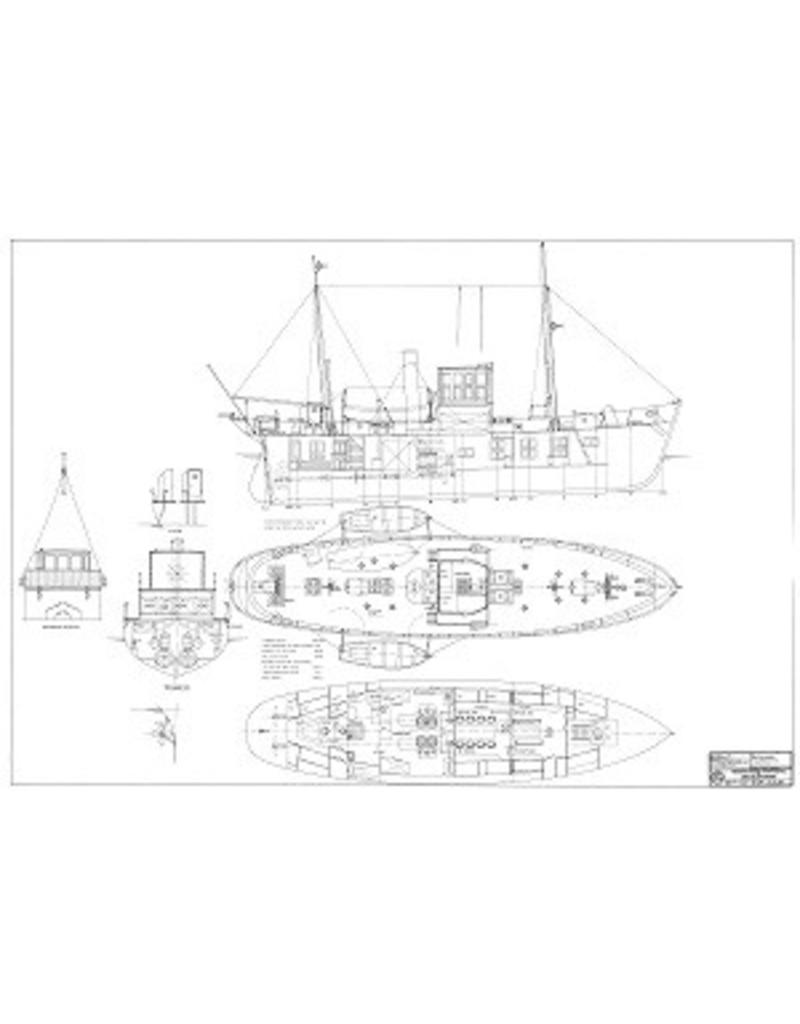

motor pilot vessel no. 3 - ex pilot schooner 13 (1914), after conversion (1930) |
|
Quality |

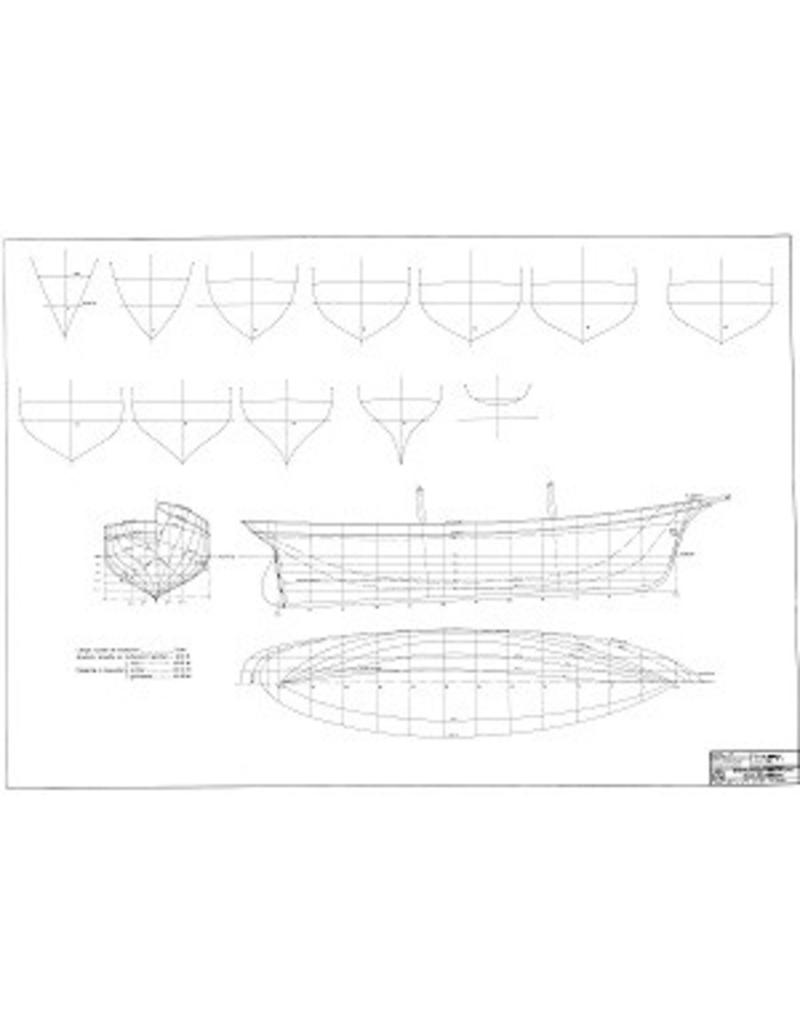

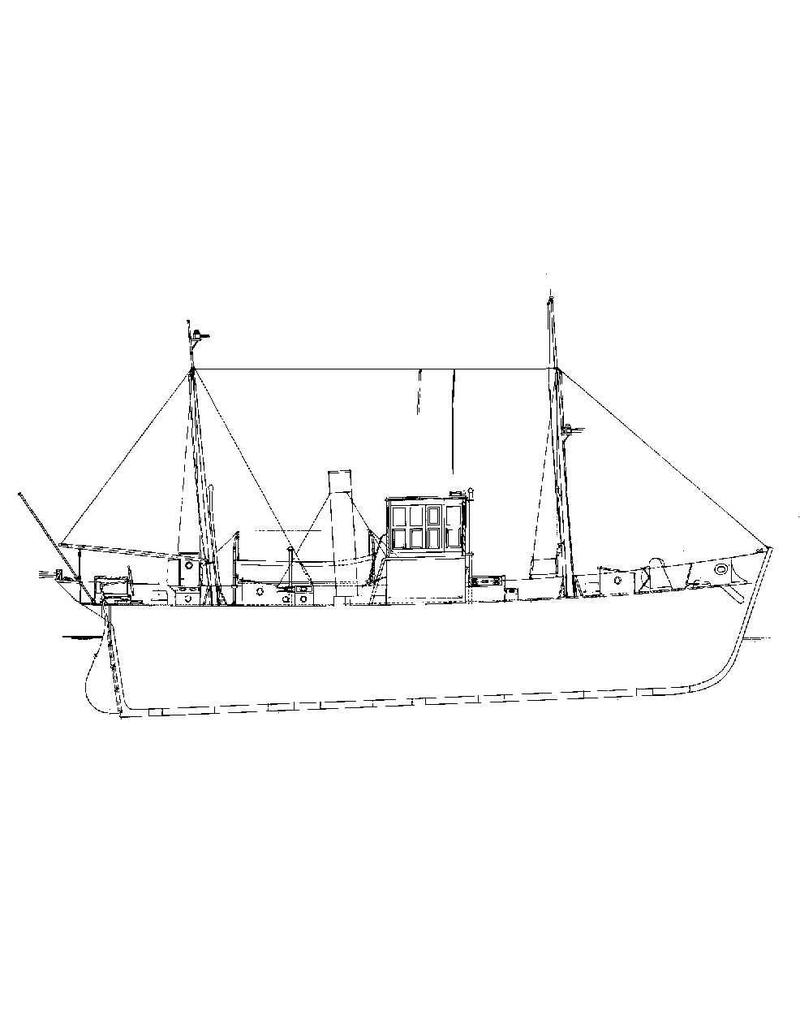

sections/lines; construction frames; side view/cross-section; deck plans |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Particulars |
l.o.a. 67 cm |
|
Remarks |
