| Article number: | 10.20.001 |
Specifications :
|
Drawing number |
10.20.001 |
|
Author |
G. van Schaik - Zillesen |
|
Description |

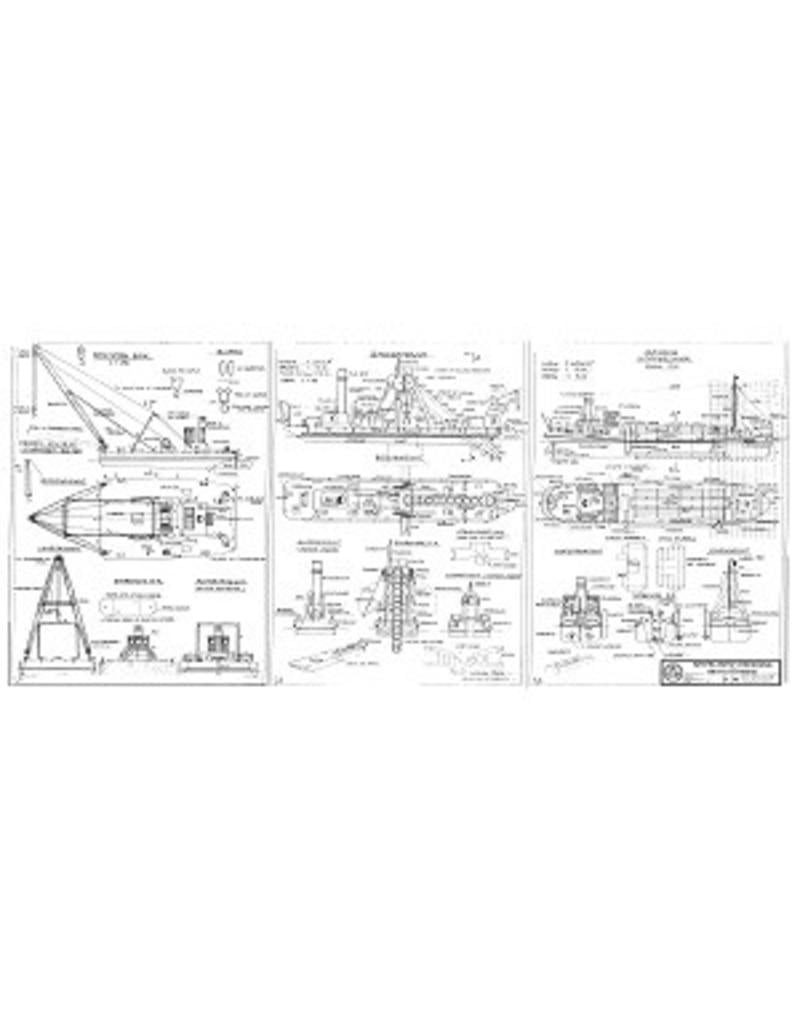

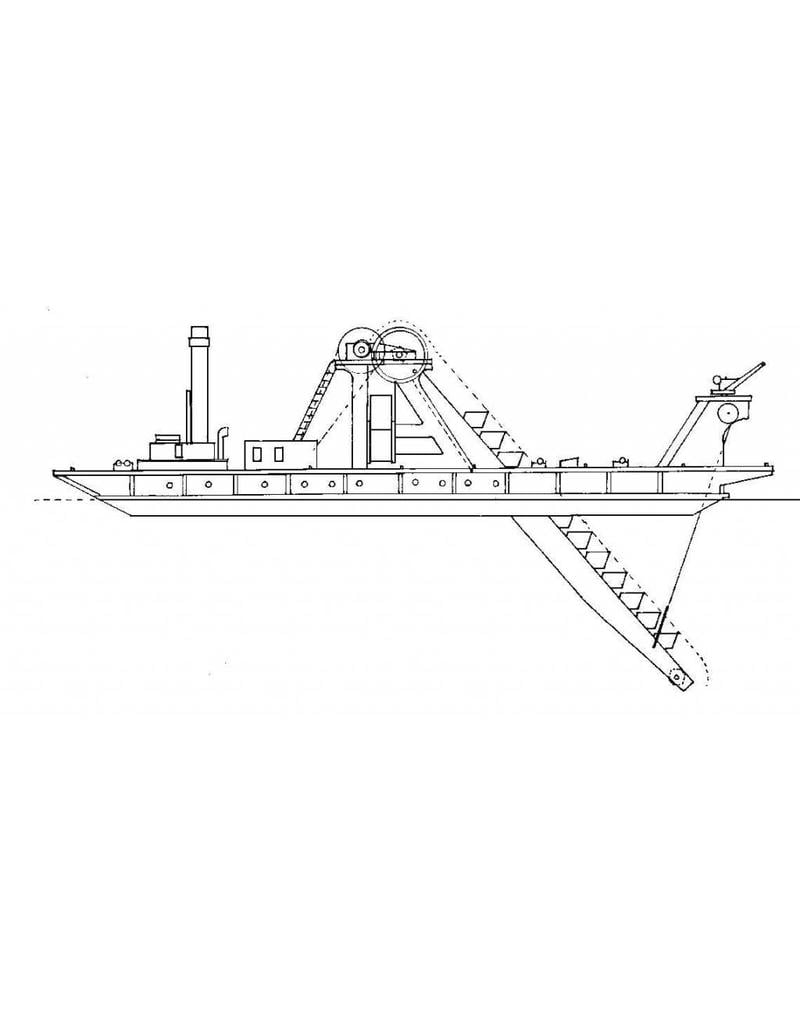

floating crane, bucket dredger and trailing suction hopper dredger |
|
Quality |
all-round views; limited details |
|
Scale |
various |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |

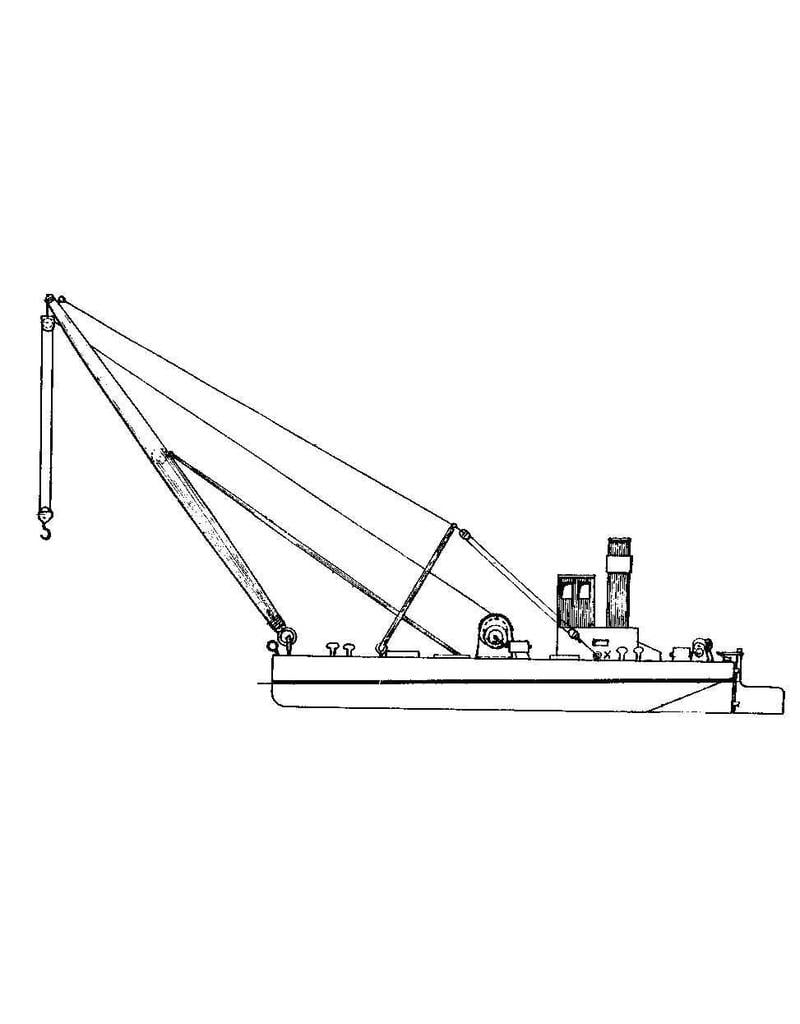

floating crane 1:50, l.o.a. 23 cm |
|
Remarks |
