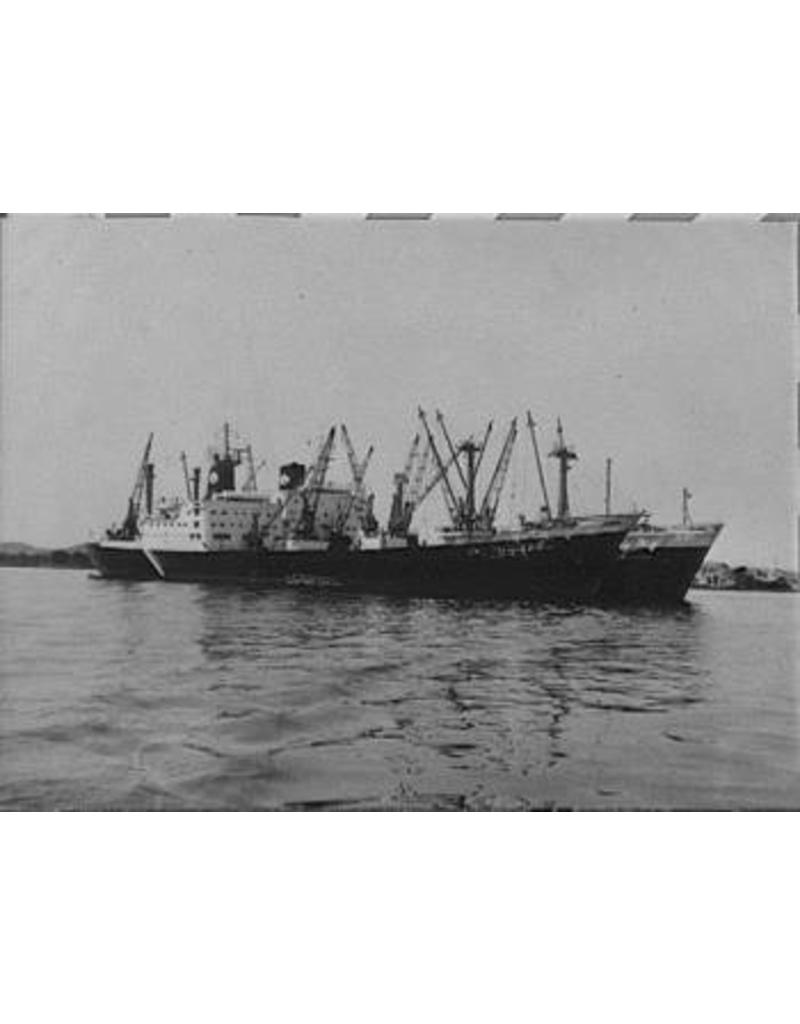

MBT 10.20.057 cargo ship ms "Straat Amsterdam" (1968) - KJCPL, "Straat Algoa", "Straat Auckland"

Drawing number

10.20.057

Author

Th.J. de Klerk

Description

cargo ship ms "Straat Amsterdam" (1968) - KJCPL, "Straat Algoa", "Straat Auckland"

Quality

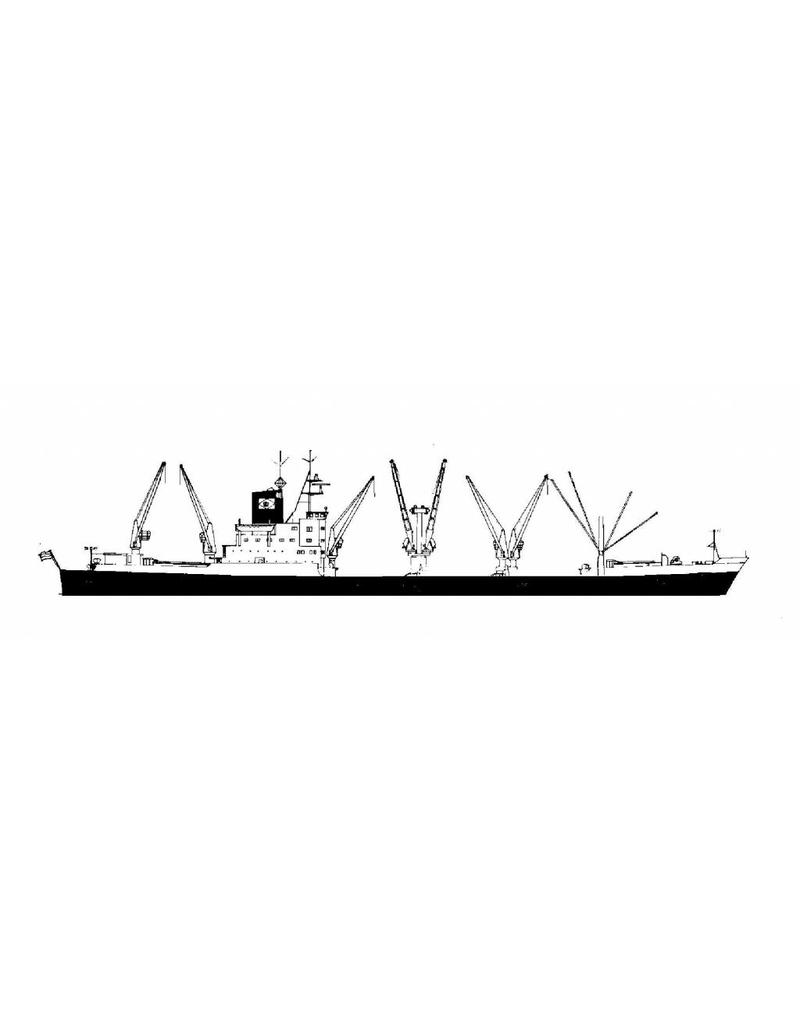

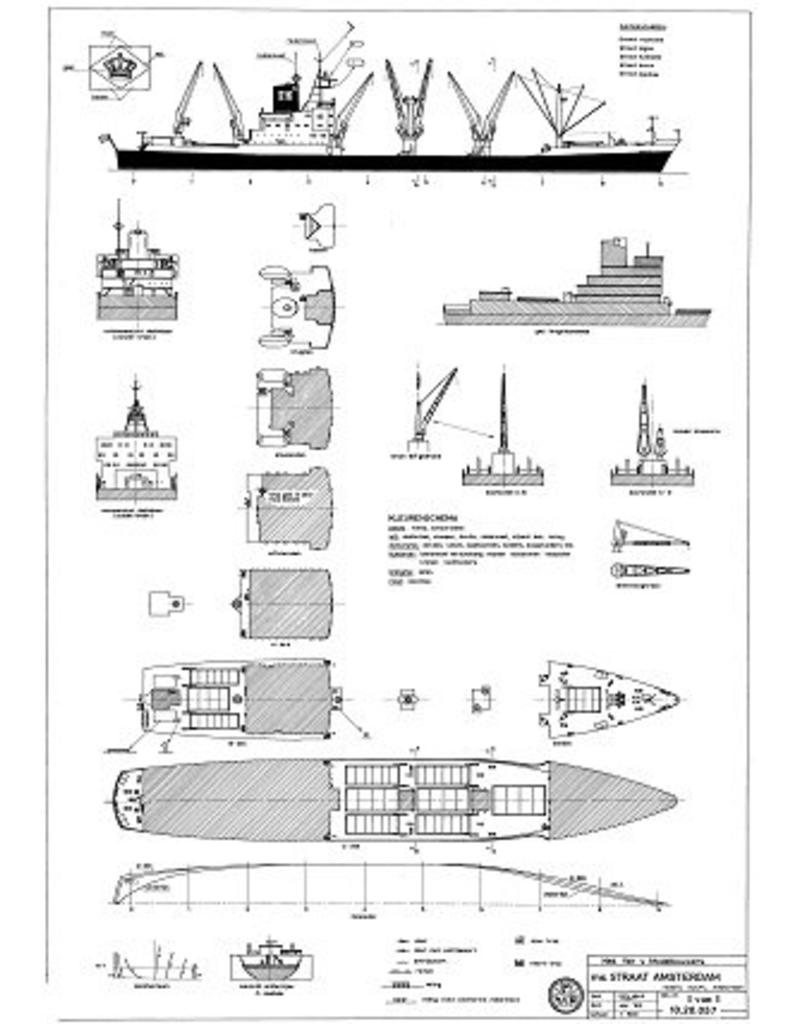

frames to the waterline; side view; deck plans; construction instructions

Scale

1 : 500

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

45

Details

l.o.a. 32 cm

dM 1969/5

Copy of article: 12.20.057 (2 pages)

Remarks
