| Article number: | 11.17.008 |
Specifications :
|
Drawing number |
11.17.008 |
|
Description |
engine lighter screw |
|
Quality |
detailed drawing screw |
|
Scale |
Ì´Ì_ |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Details |

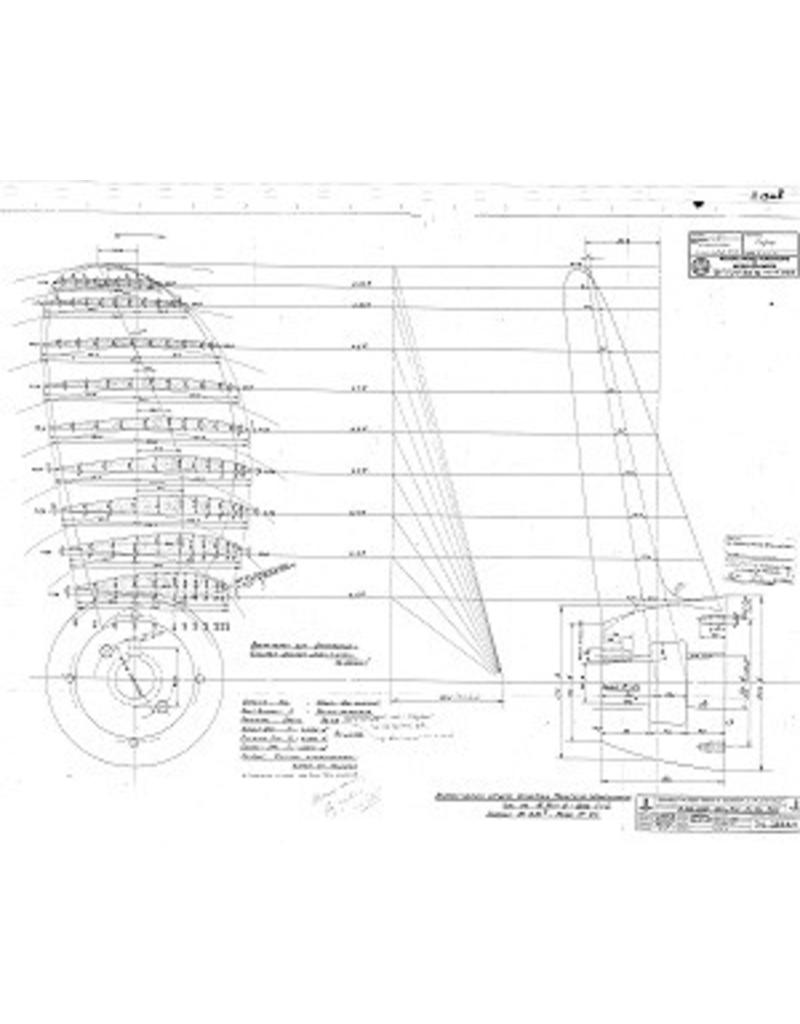

This drawing shows in great detail the shape of the screw of the engine lighter from drawing 10.15.052, but is also suitableÌ´Ì_ as an example for other ships |
|
Notes |
was 10.15.052/A Ì´Ì_
|
