| Article number: | 11.17.007 |
Specifications :
|
Drawing number |
11.17.007 |
|
Description |

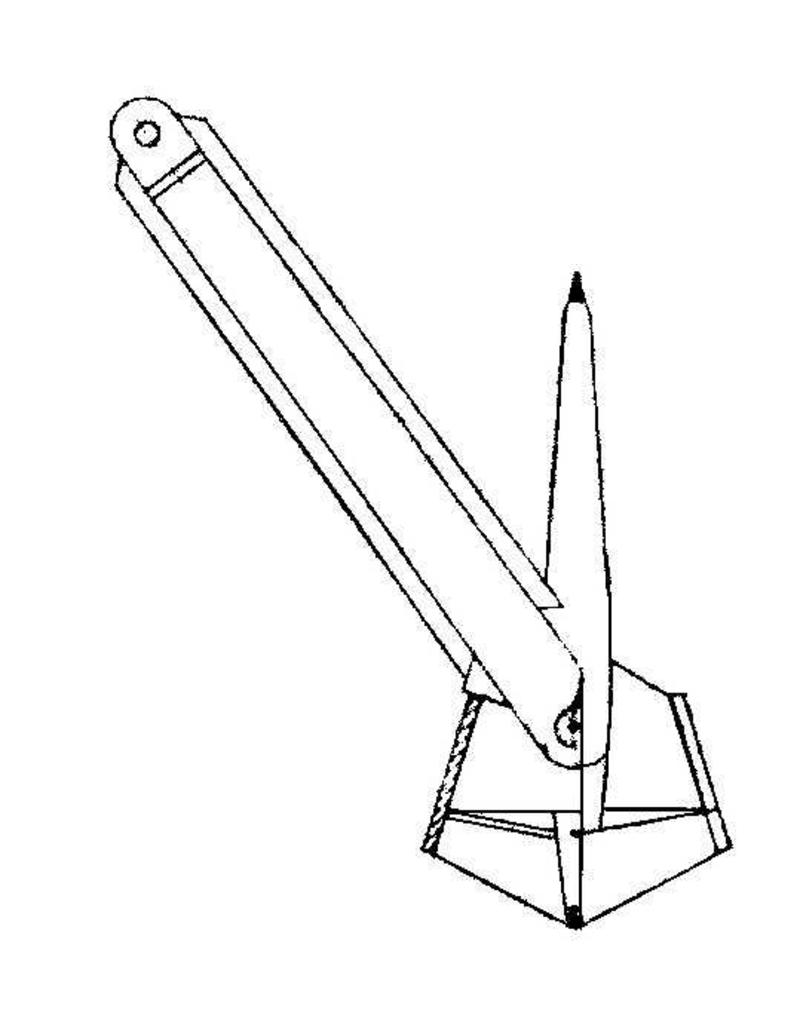

delta/flipper anchor of 2 kg |
|
Quality |
dimensions and details |
|
Scale |
1 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Special features |

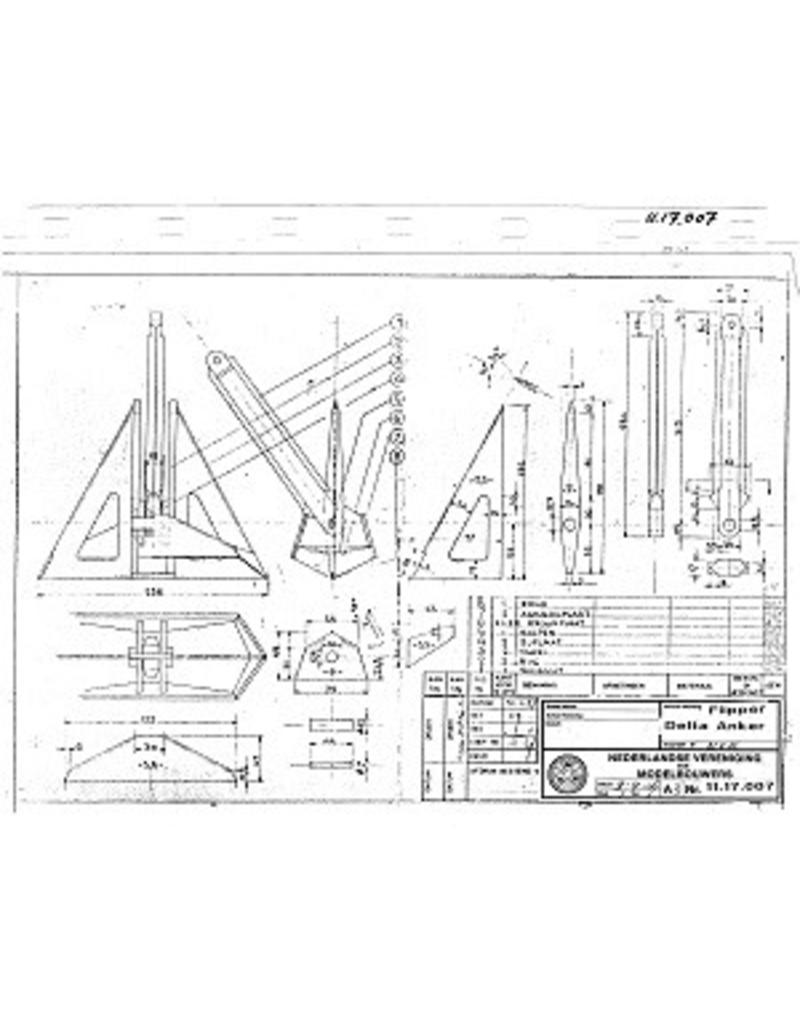

the drawing is fully dimensioned and thus serves as a good guide for making a faithful delta anchor, as used on oil rigs etc. |
|
Remarks |
