| Article number: | 11.17.005 |
Specifications :
|
Drawing number |
11.17.005 |
|
Author |
C. Stout |
|
Description |

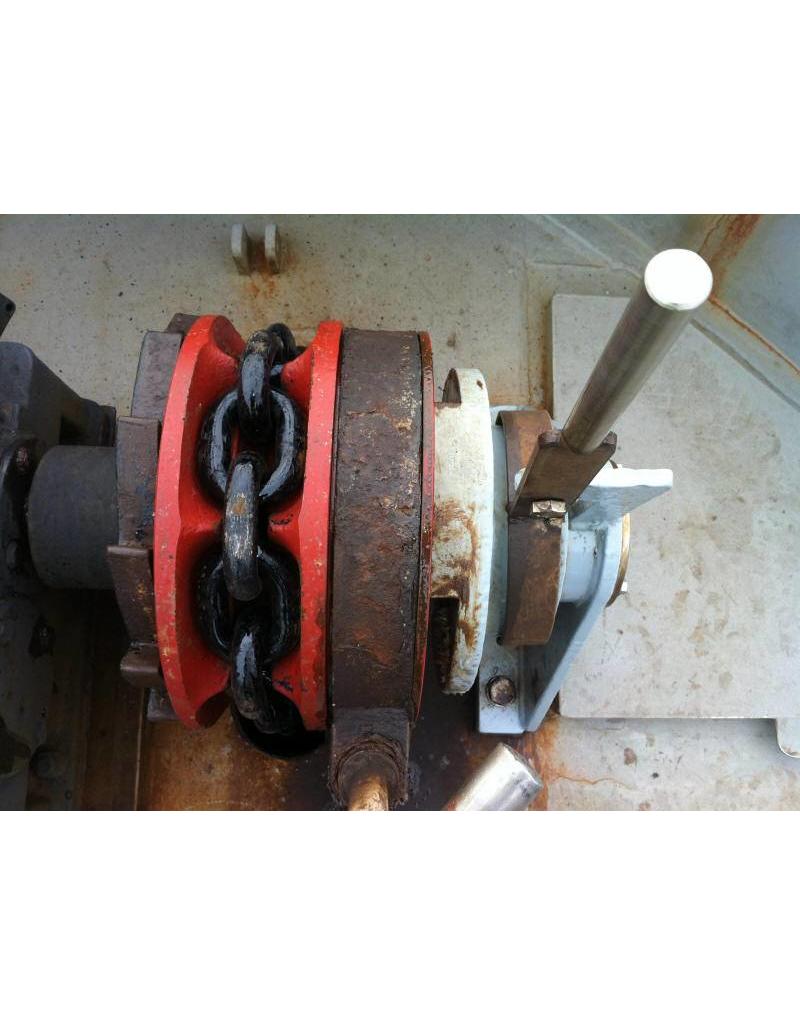

chain sprocket, gypsy wheel |
|
Quality |
construction details |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Special notes |

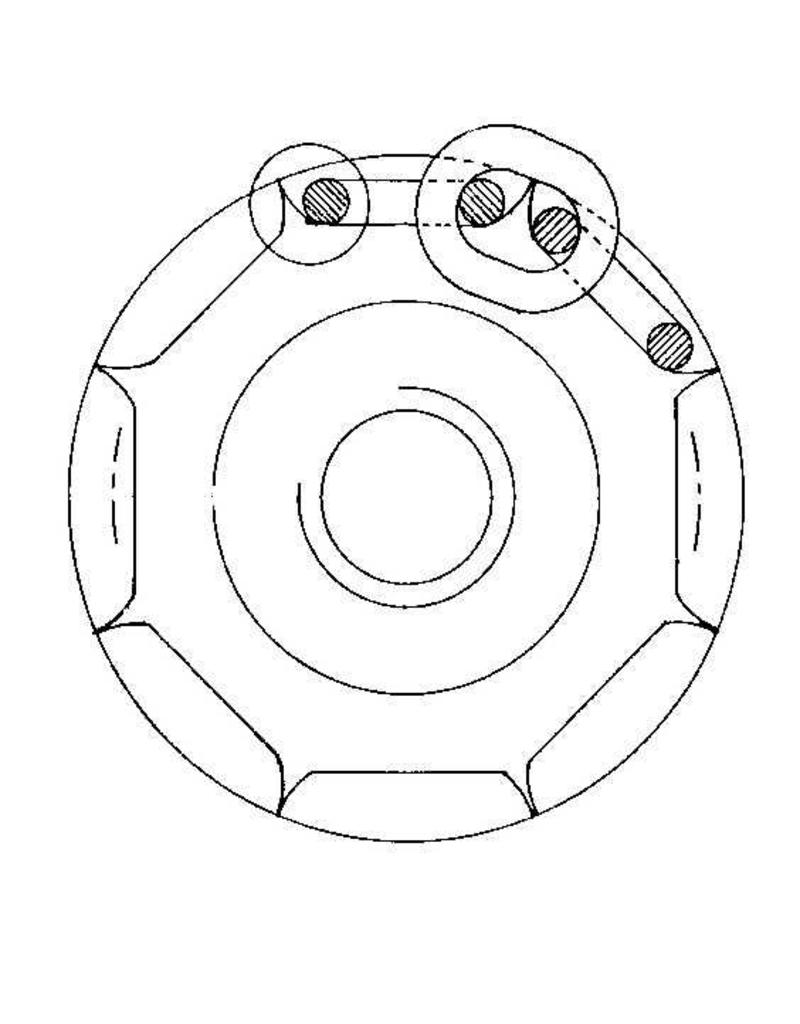

this drawing provides instructions and methods on how to create a realistic gypsy wheel for the windlass |
|
Comments |
