| Article number: | 11.17.011 |
|
Drawing number |
11.17.011 |
|
Author |
G.J. Volgers |
|
Description |
Vertical anchor winch |
|
Quality |
detailed model building drawing |
|
Difficulty level |
D |
|
Scale |
1:50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Special features |

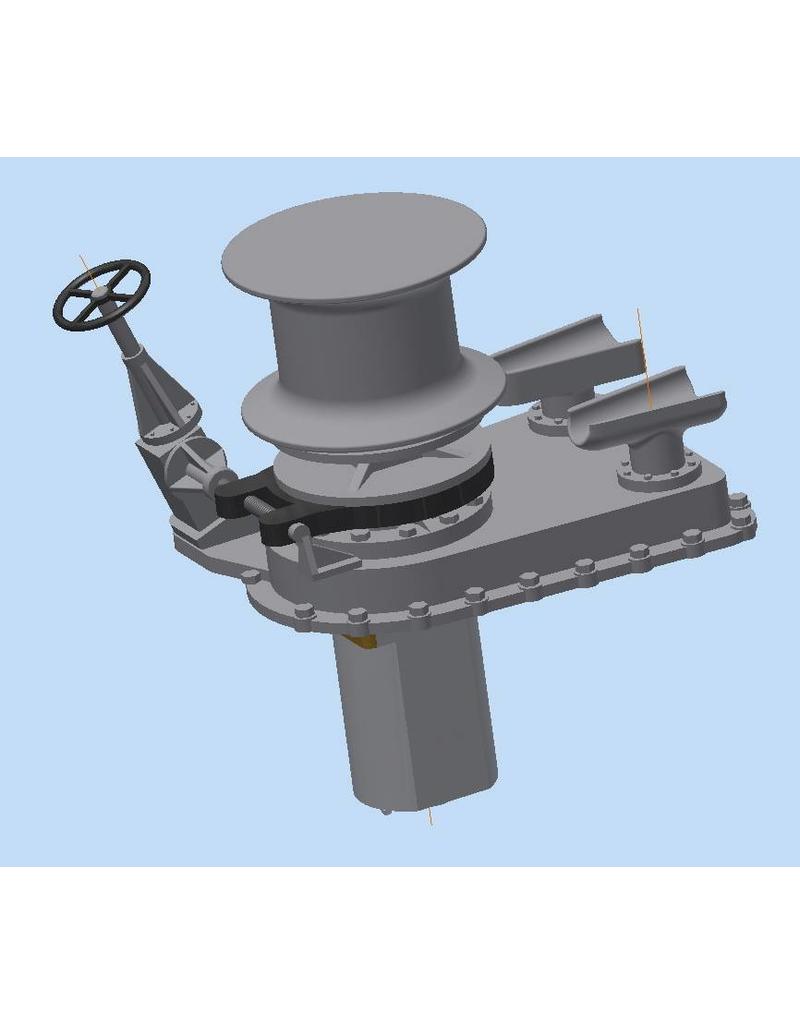

'A detailed drawing of a vertical anchor windlass/capstan head as seen on many modern warships. The model is 3-D printed and can also be ordered via www.shapeways.com/shops/nvm3dmodels dMB 2-2017 Article copy: 12.11.17.011 (2 pages) |
|
Remarks |
|
