| Article number: | 16.11.007 |
Specifications :
|
Drawing number |
16.11.007 |
|
Description |

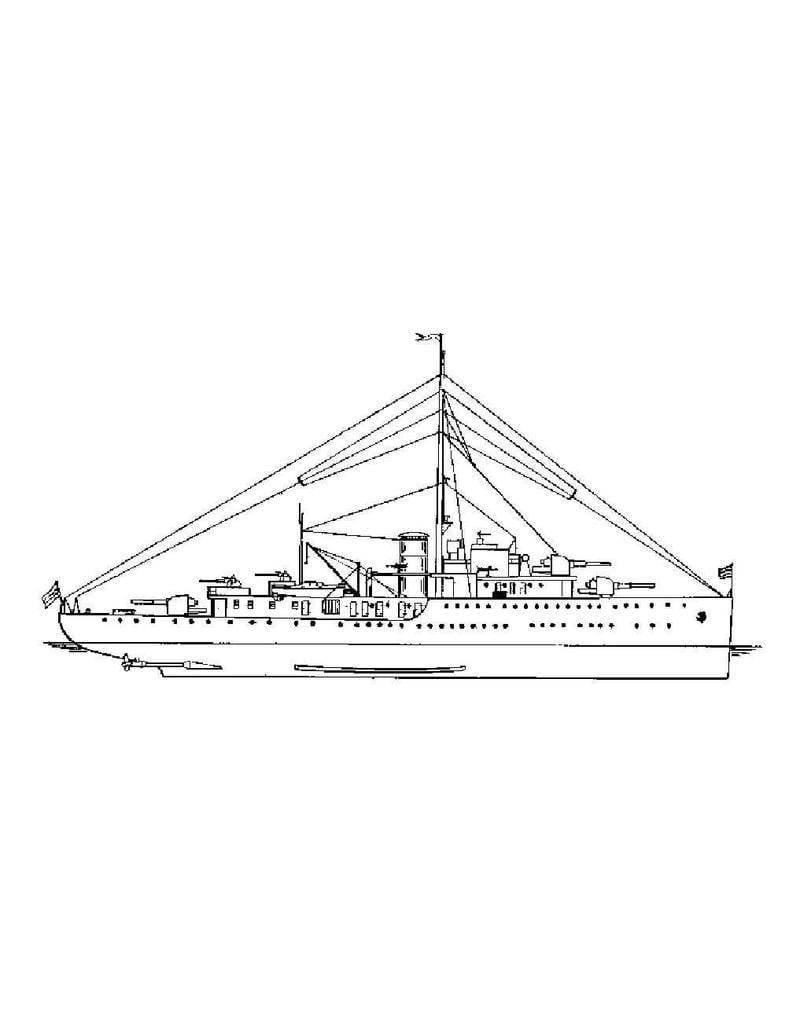

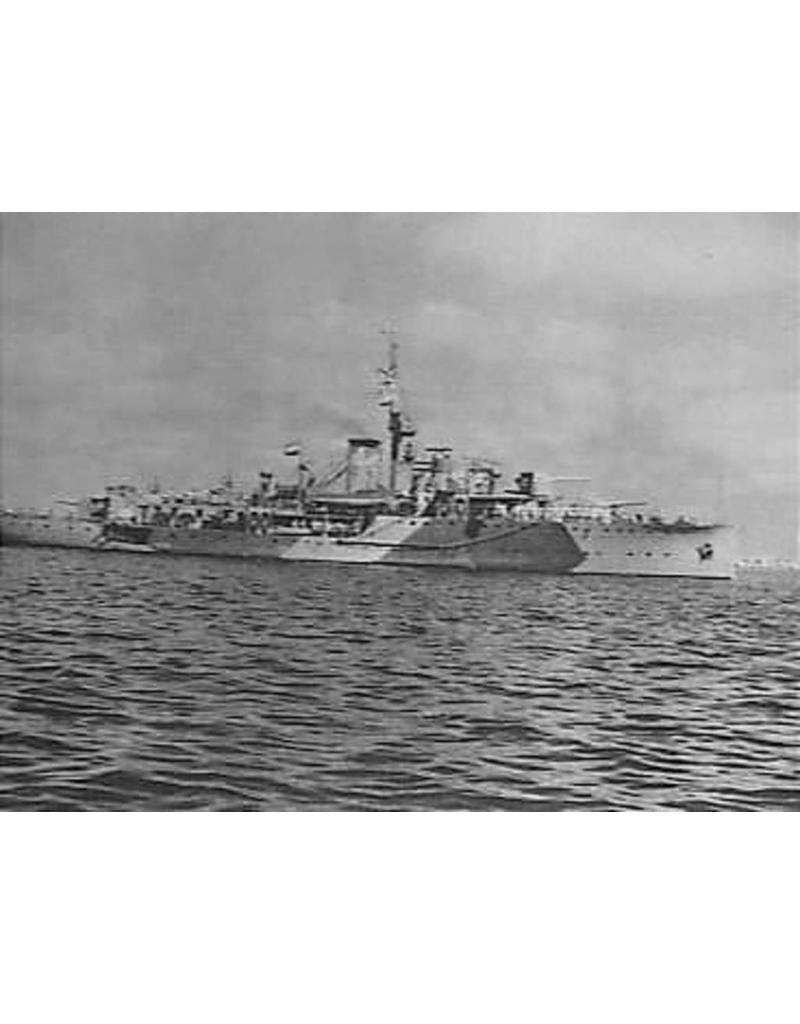

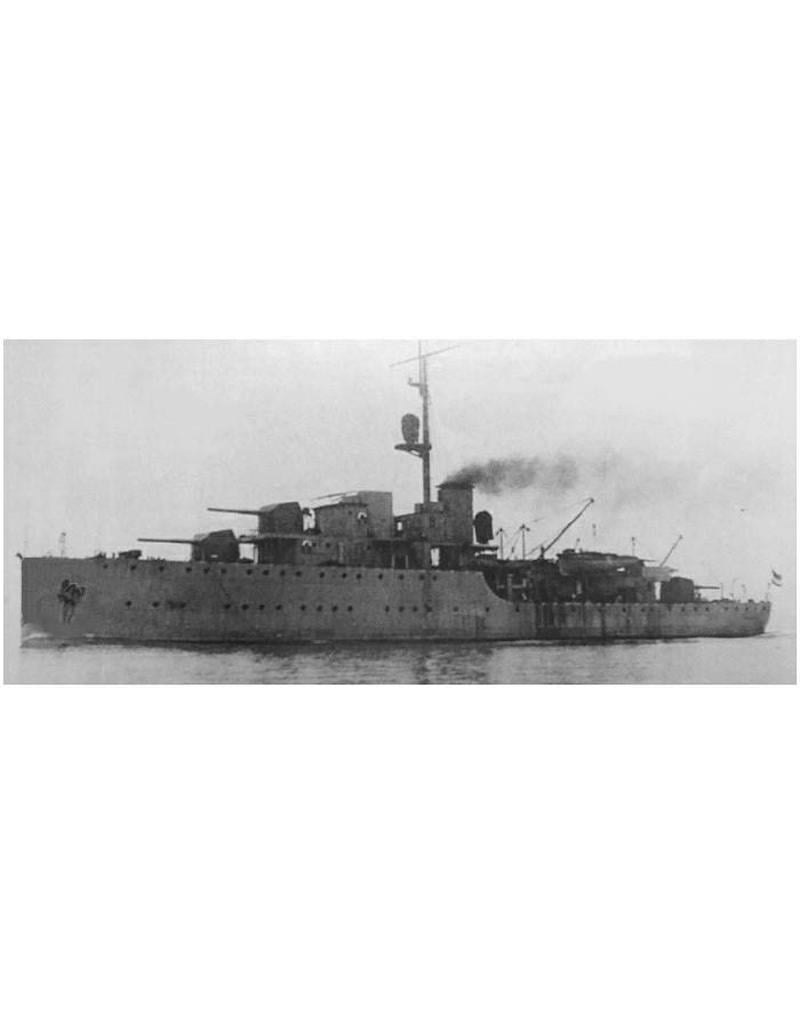

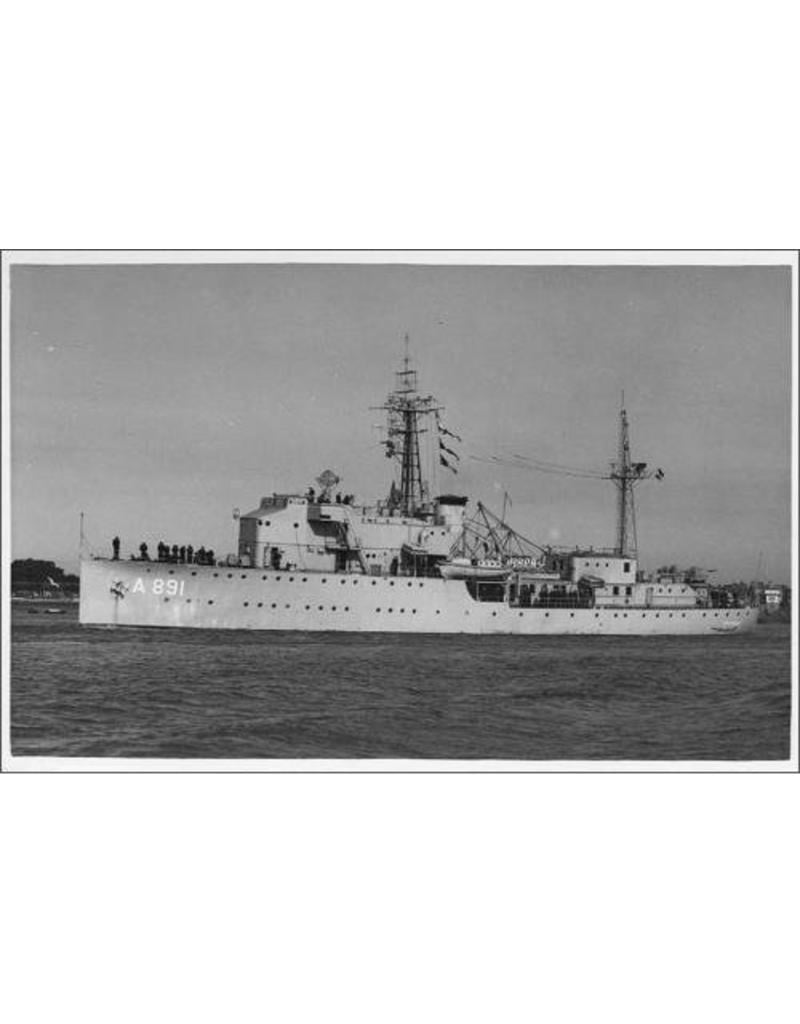

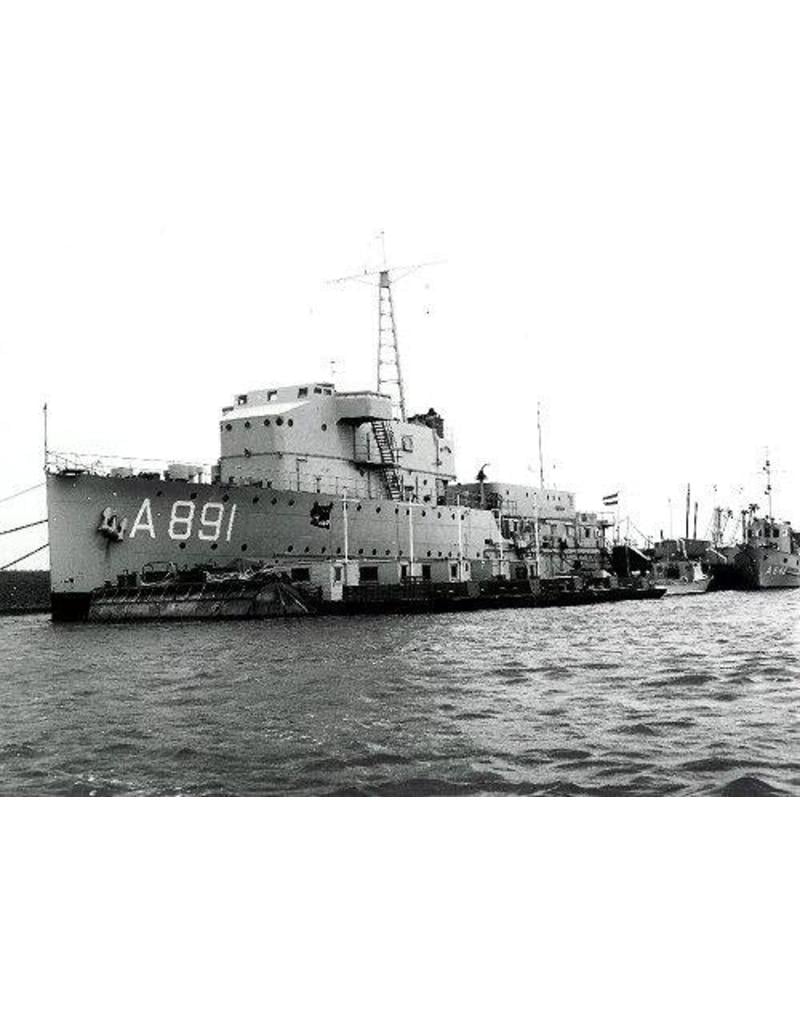

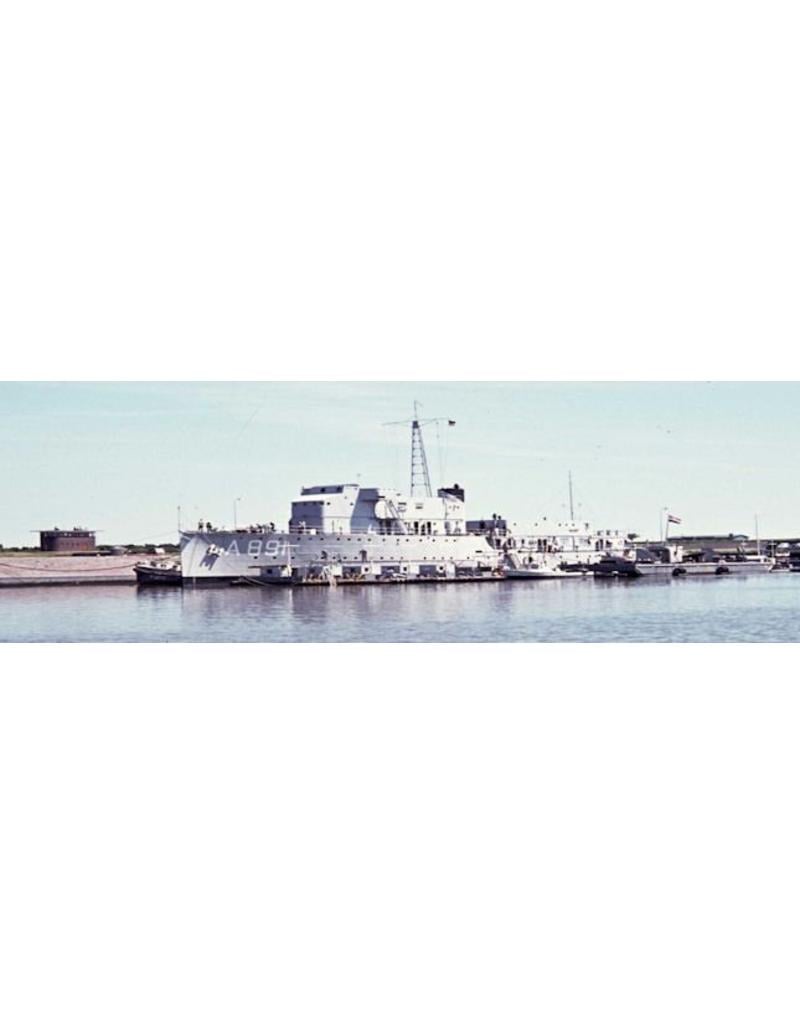

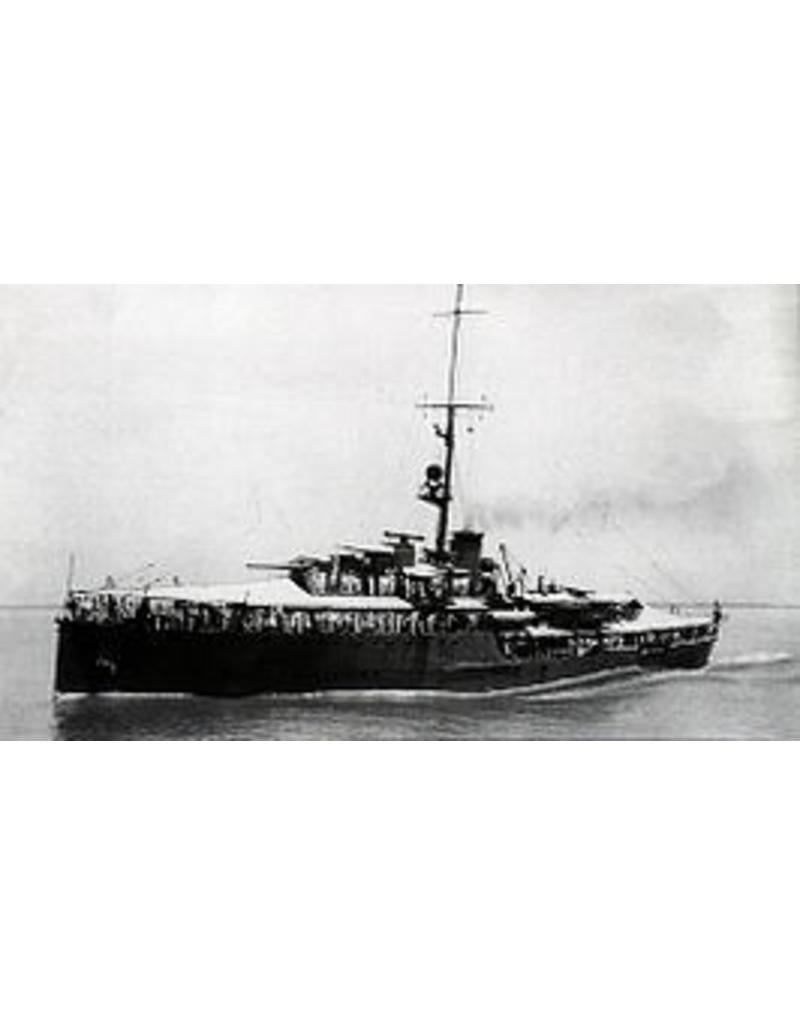

HrMs Flotilla Vessel "Soemba", "Flores" (1:1926) |
|
Quality |
sp/lines; side view 1:100; general plan; cross-sections; bridge deck 1:25 |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
3 |
|
Number of sheets A0 |
3 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
6 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
365 |
|
Particulars |
l.o.a. 151 cm |
|
Remarks |
artek 0047 Ì´Ì_
|
