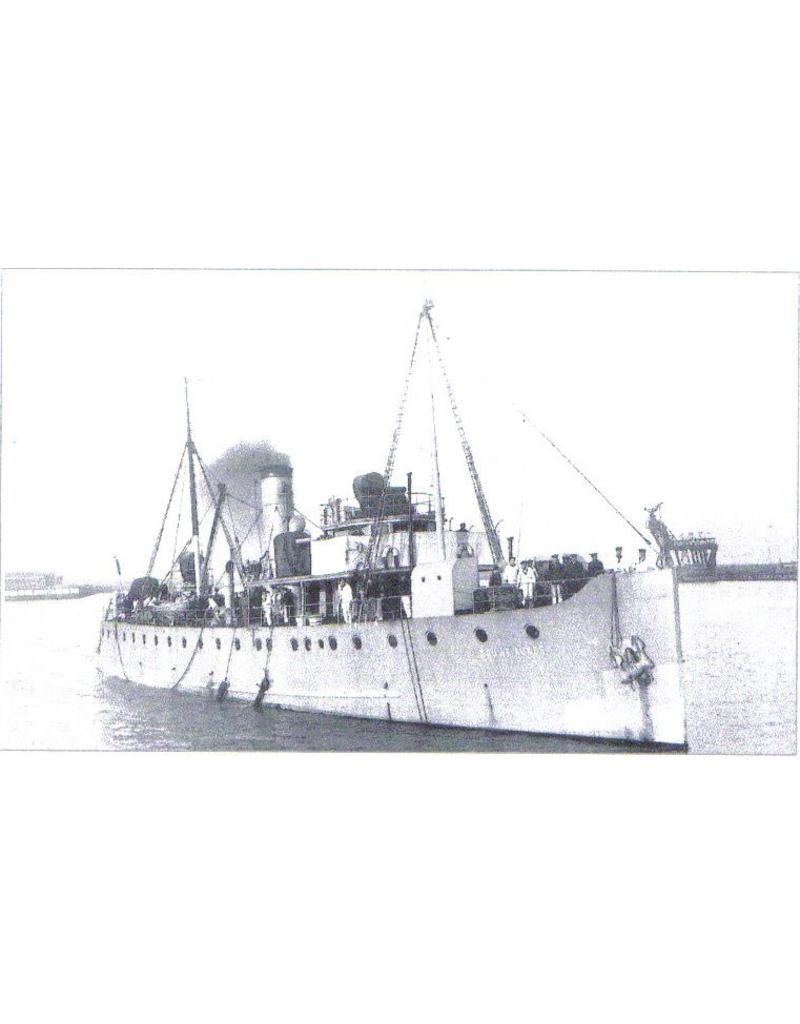

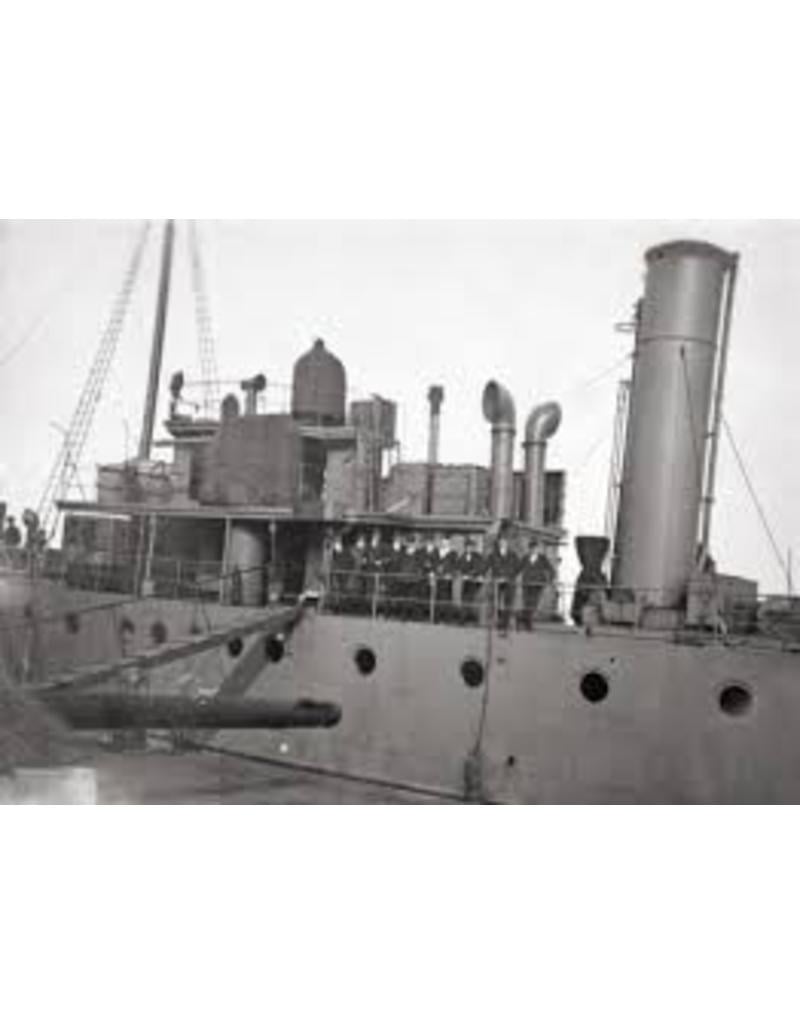

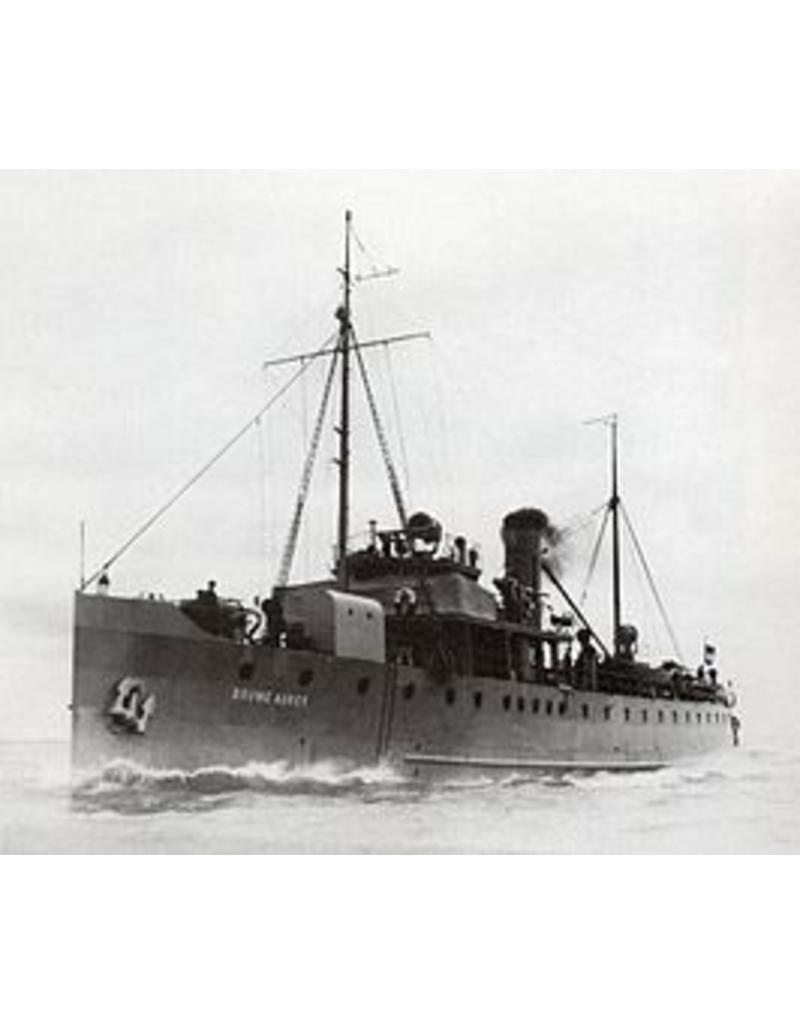

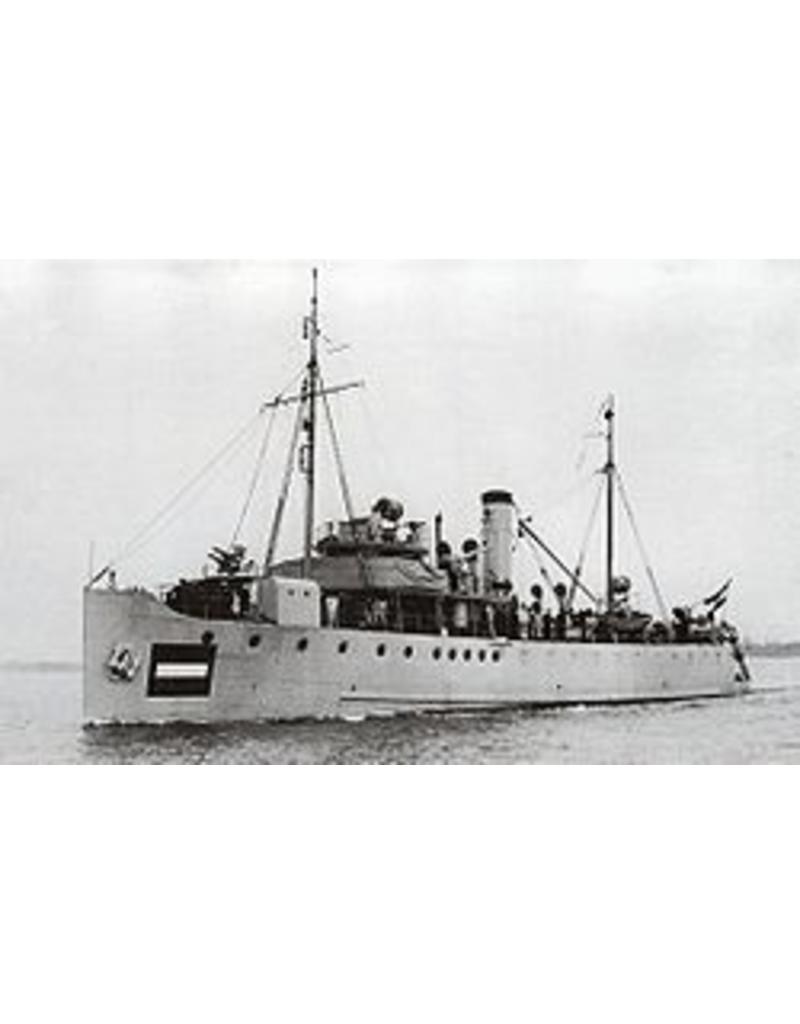

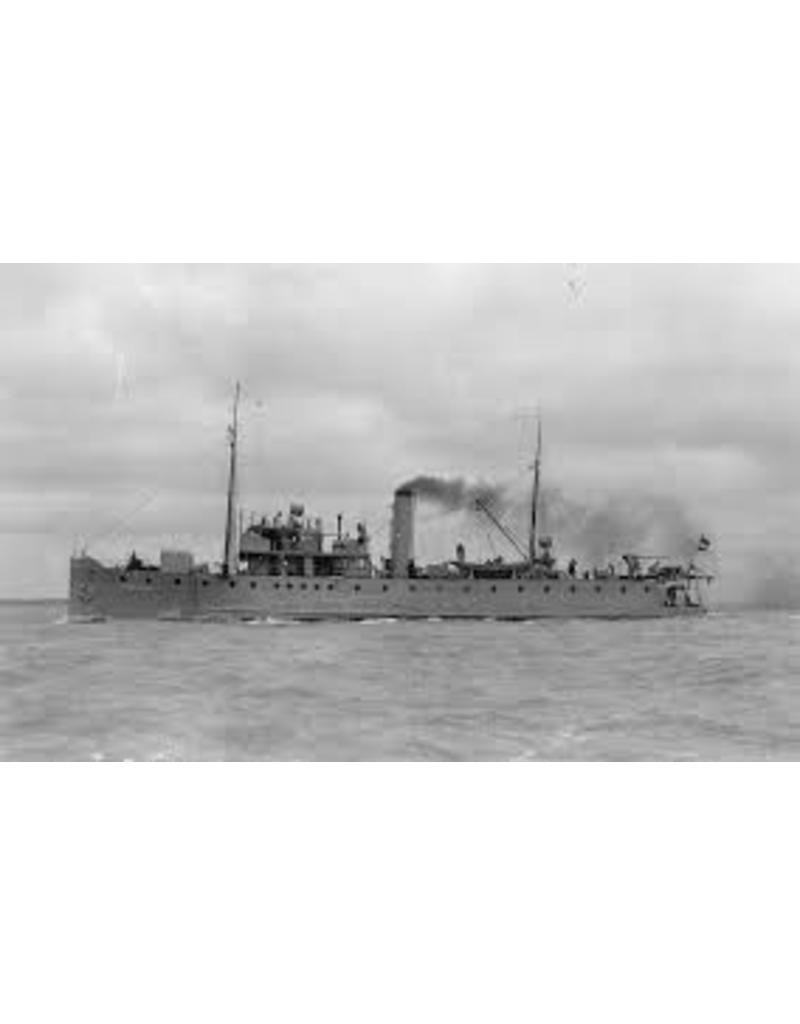

MBT 16.11.009 HrMs Minelayer "Douwe Aukes" (1922)

Drawing number

16.11.009

Description

HrMs Minelayer "Douwe Aukes" (1:1922)

Quality

sp/lines here and there quite thin; general plan

Difficulty level

D

Scale

1 : 50

Number of sheets A00

1

Number of sheets A0

2

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

3

Number of A4 text sheets

0

Weight in grams

145

Particulars

l.o.a. 110

After the war used as a depot ship for the mine service and minesweeping workship

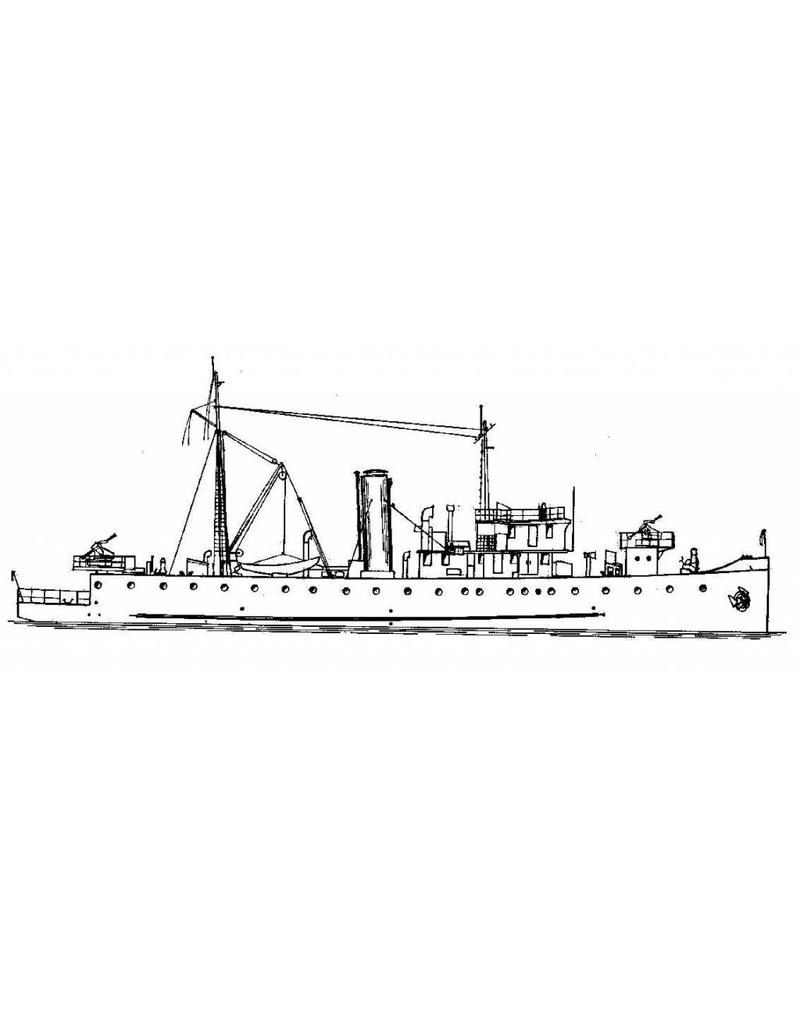

the general plan shows modifications until 1959

Remarks

artek 0053
