| Article number: | 16.11.008 |
Specifications :
|
Drawing number |
16.11.008 |
|
Description |

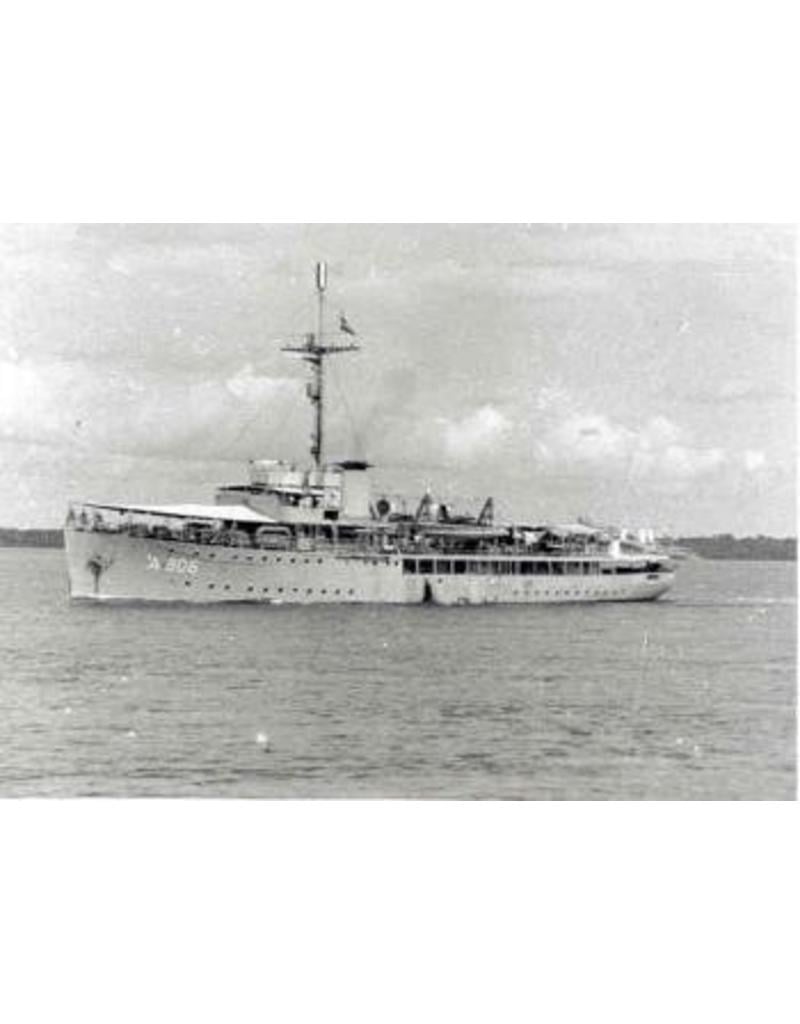

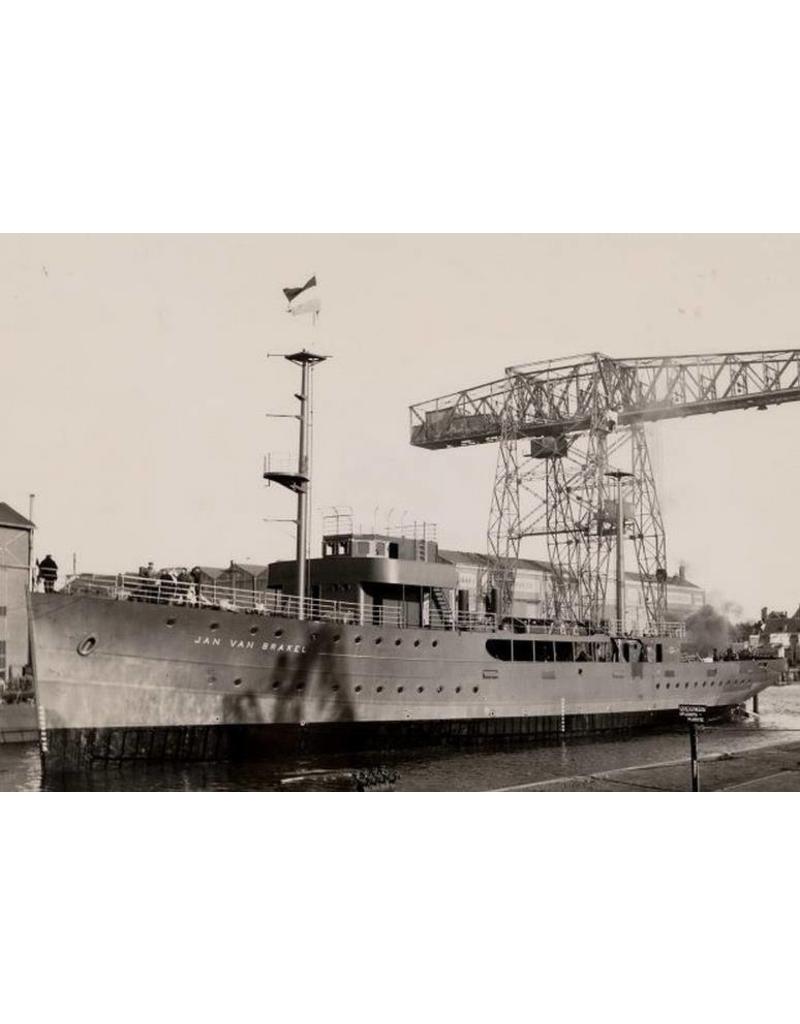

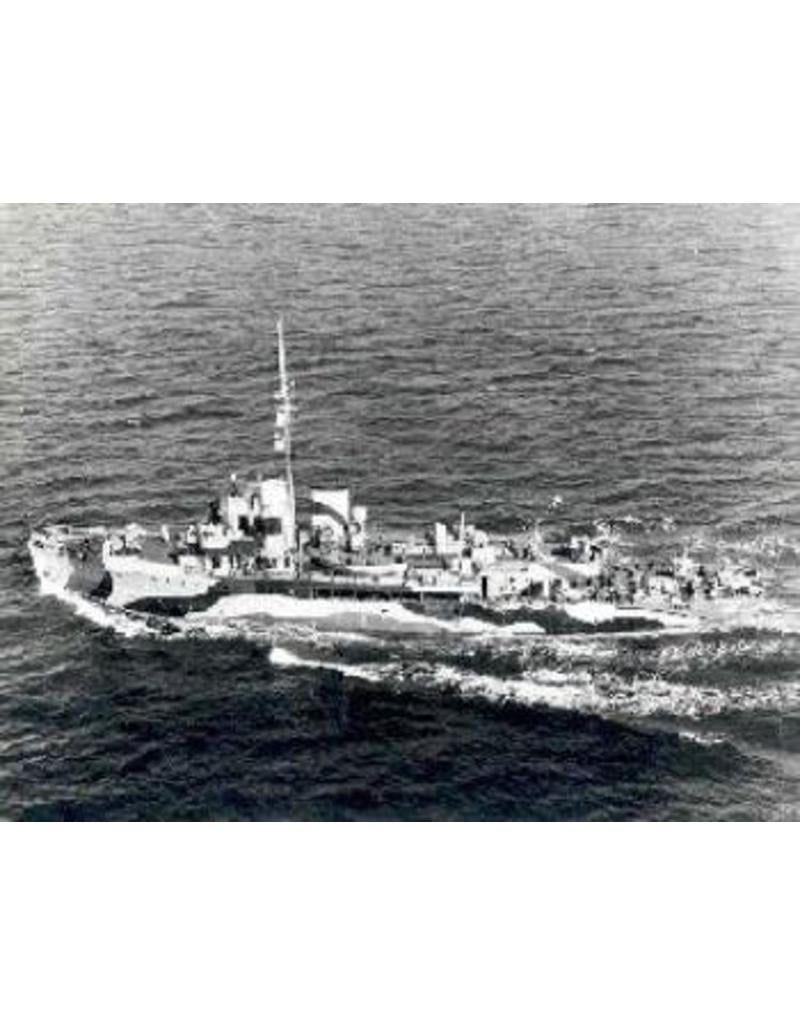

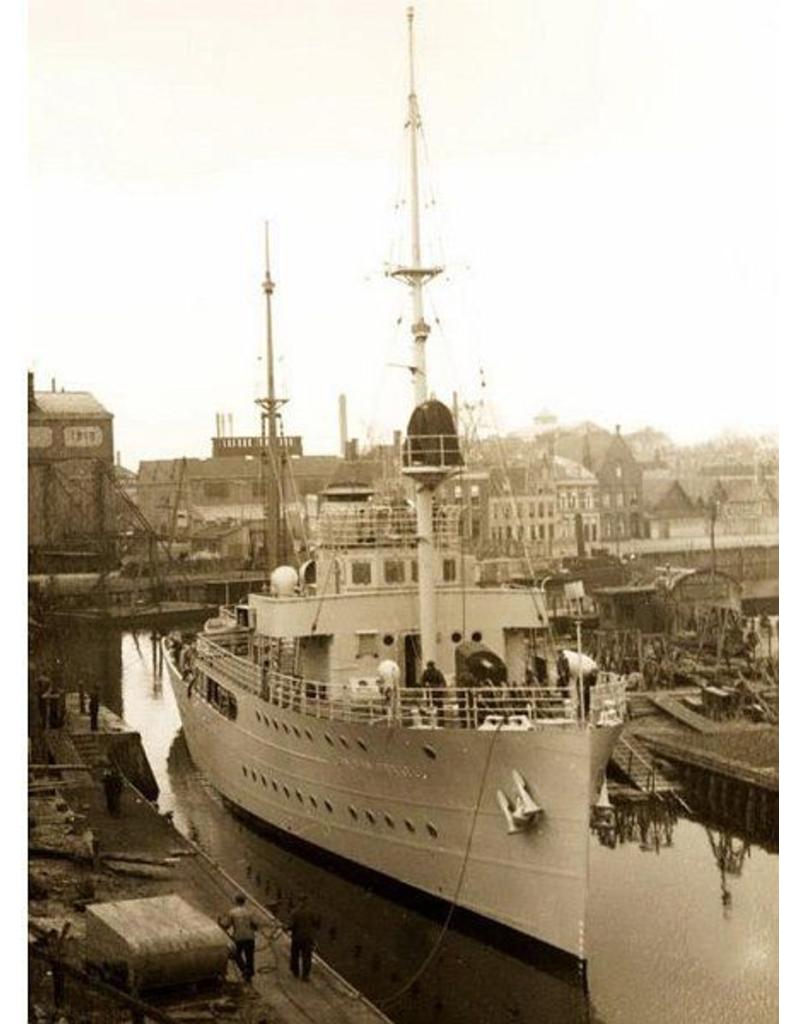

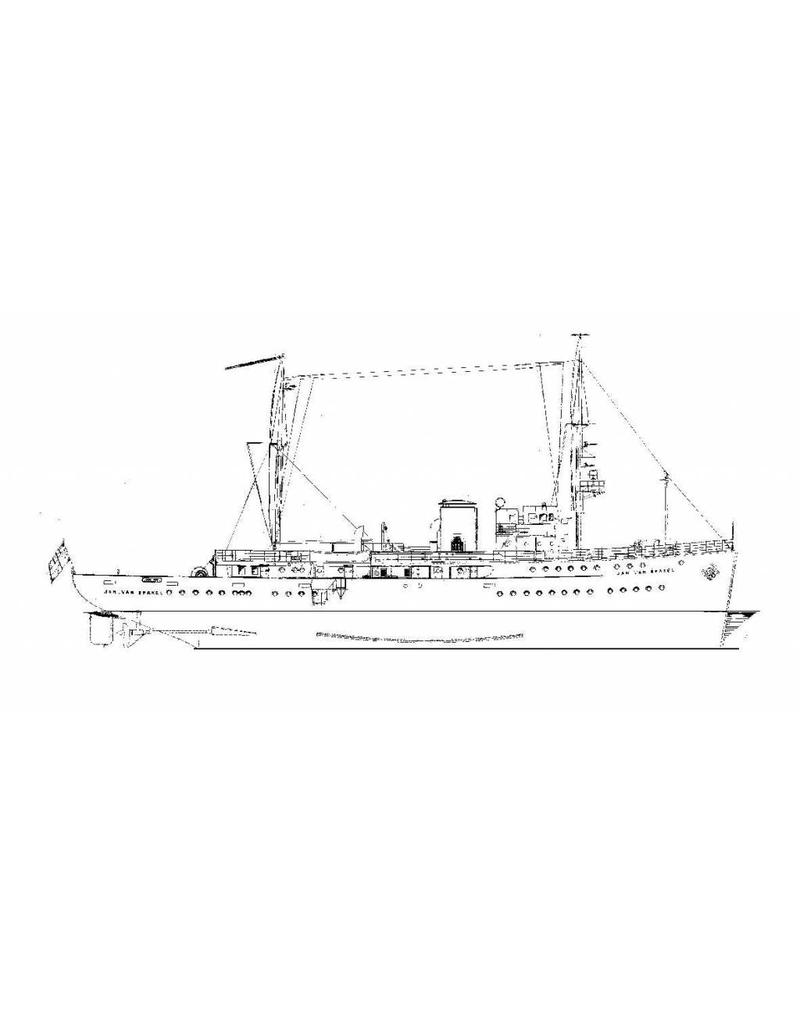

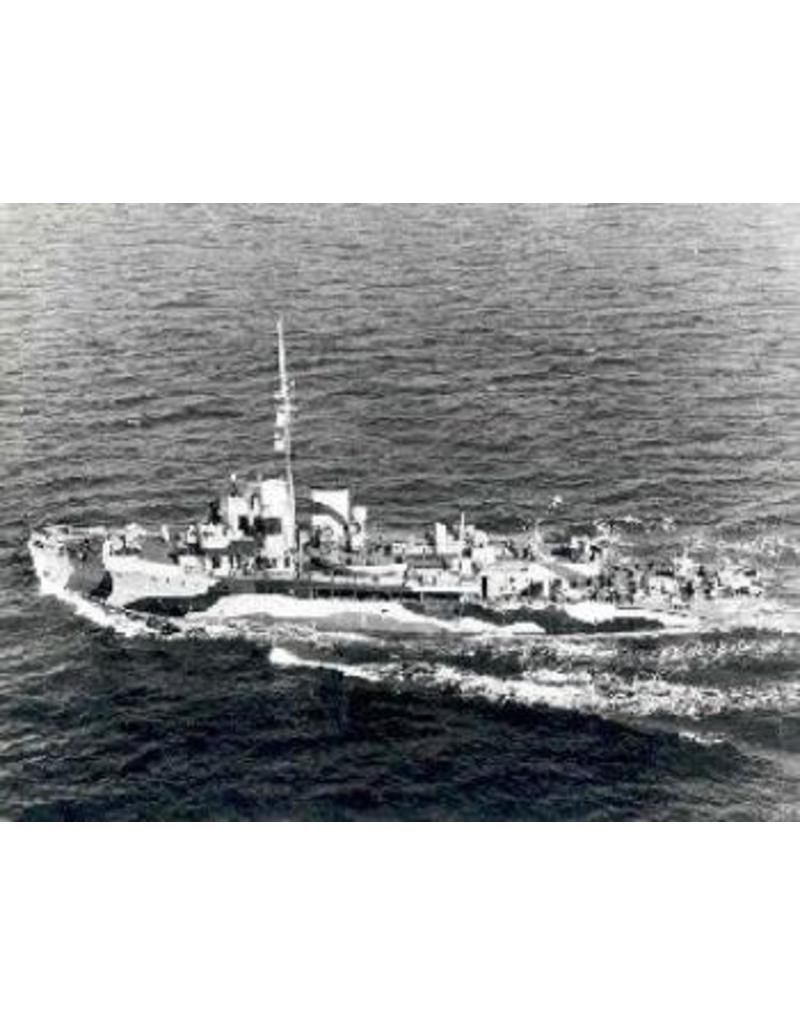

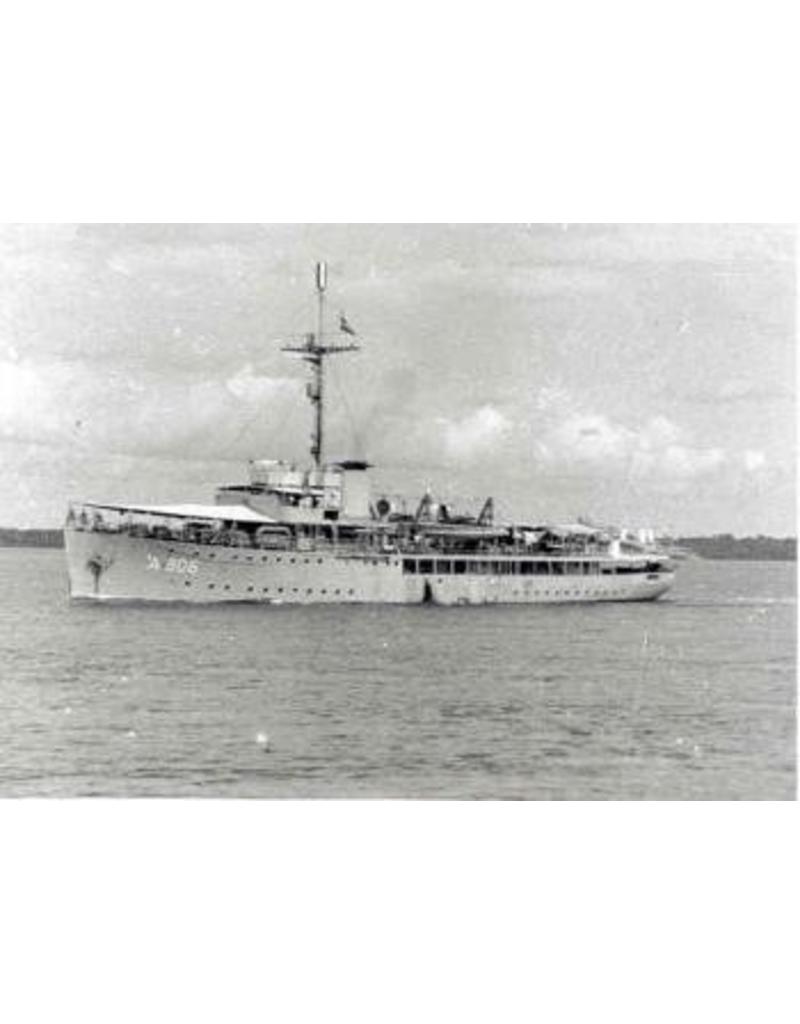

HrMs Minelayer "Jan van Brakel" (1936) after conversion to escort vessel (1944) |
|
Quality |
sp/lines; general plan |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
345 |
|
Particulars |
l.o.a. 11:16 cm |
|
Remarks |
artek 001:50 Ì´Ì_
|
