| Article number: | 16.15.003 |
Specifications :
|
Drawing number |
16.15.003 |
|
Author |
Shipyard H.J. Koopman |
|
Description |

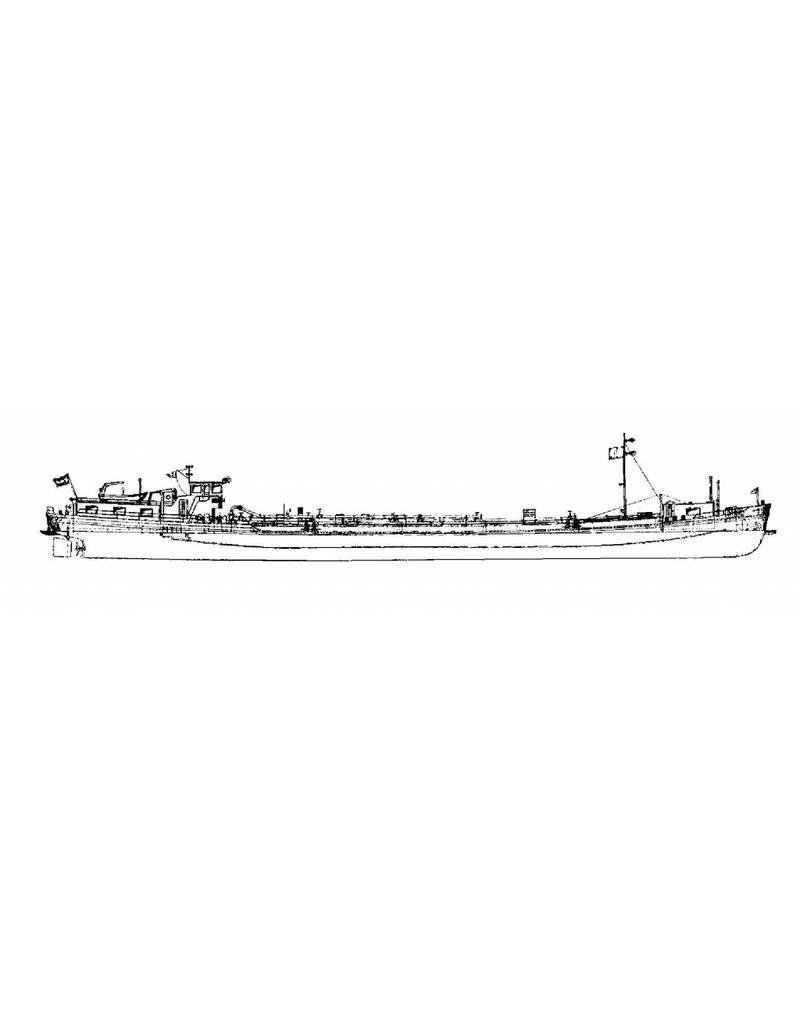

inland tanker ms "Icarus" (1956) |
|
Quality |
frame plan 1:10; general plan |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
0 |
|
Details |
Shipyard H.J. Koopman |
|
Remarks |
