| Article number: | 16.15.005 |
Specifications :
|
Drawing number |
16.15.005 |
|
Author |
Shipyard De Biesbosch |
|
Description |

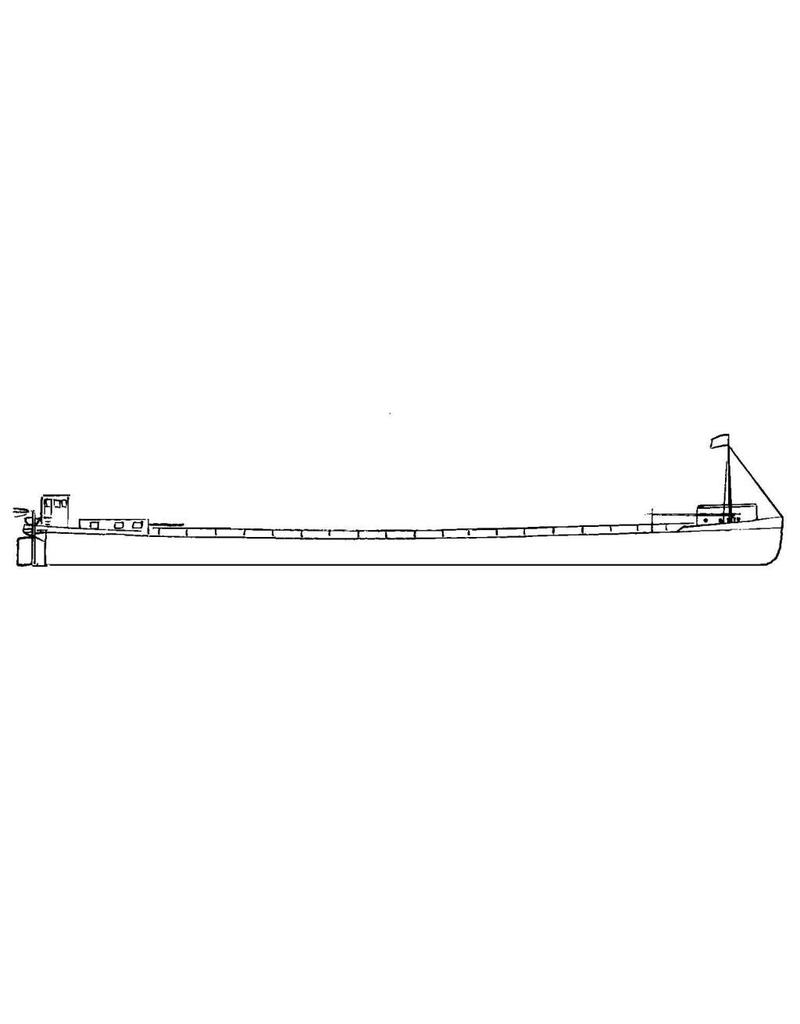

barge "Navis 3", "Navis 4" and "Navis 5" (1954) |
|
Quality |
frame plan 1:15; general plan |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Particulars |
l.o.a. 67 cm |
|
Remarks |
Owner? Ì´Ì_
|
