| Article number: | 16.18.003 |
Specifications :
|
Drawing number |
16.18.003 |
|
Description |

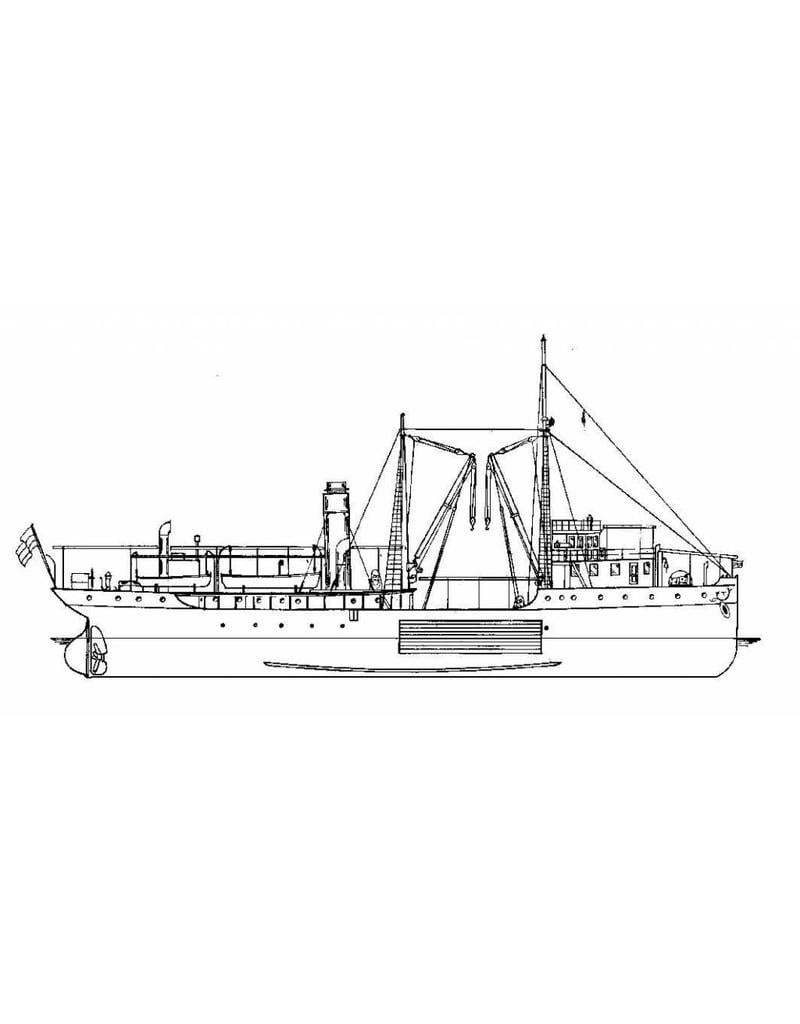

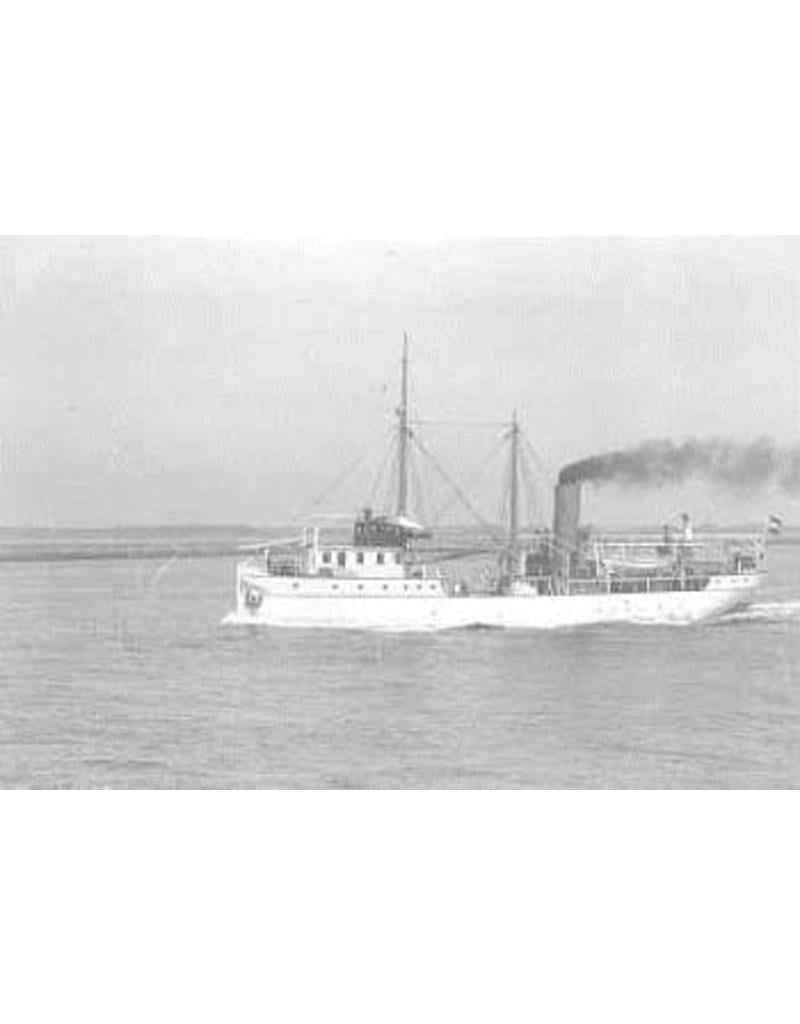

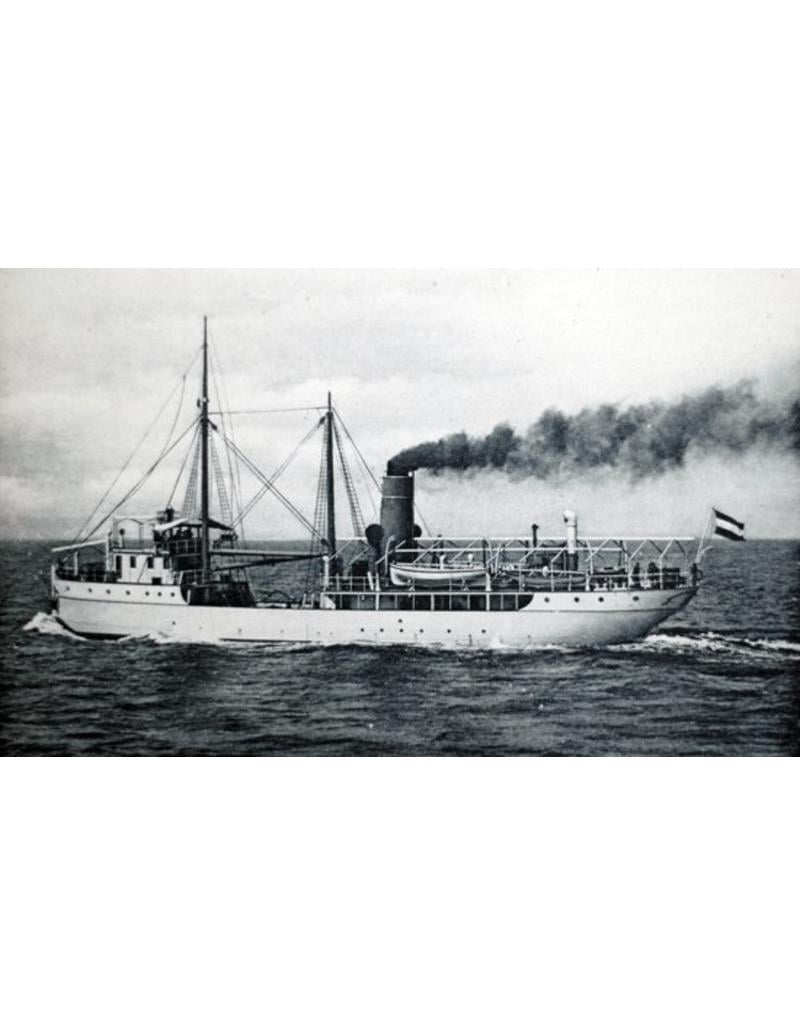

vessel of the Buoyage and Coastal Lighting Service ss "Chief Inspector Zeeman" (1909) |
|
Quality |
frames/lines; general plan; rigging plan |
|
Difficulty level |
D |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
4 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
345 |
|
Particulars |
l.o.a. 130 cm |
|
Remarks |
artek 0043 Ì´Ì_
|
