| Article number: | 16.18.004 |
Specifications :
|
Drawing number |
16.18.004 |
|
Description |

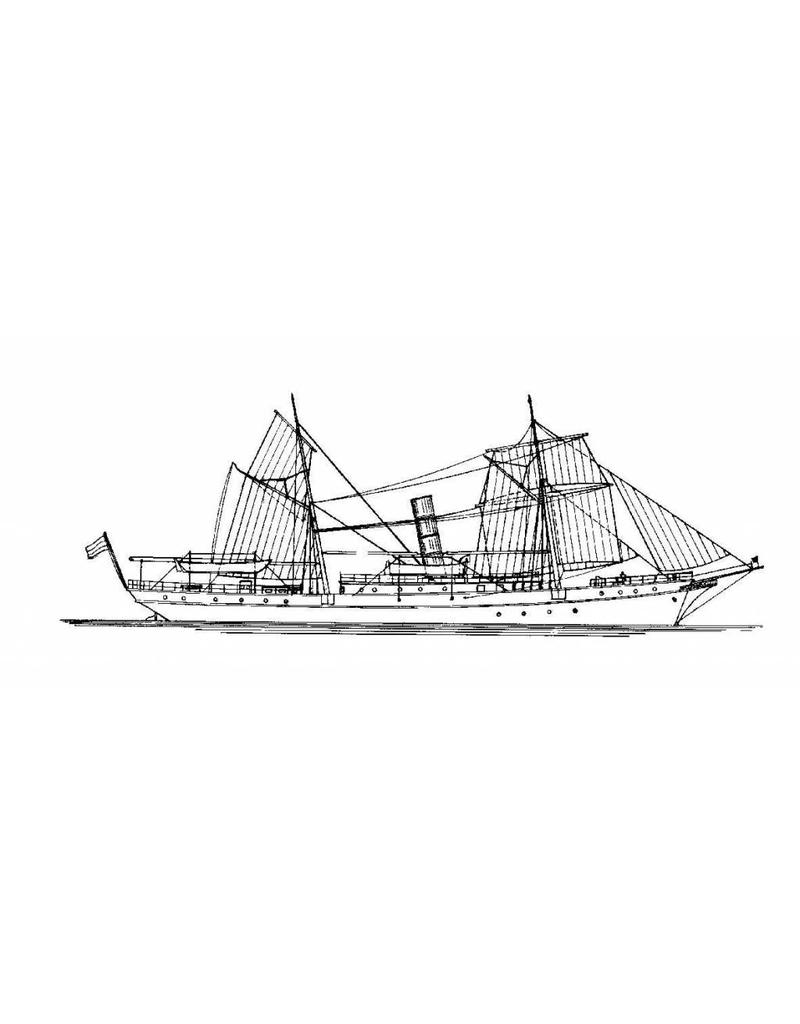

Government ss "Swan" (1891) |
|
Quality |
sp/lines; side view 1:100; general plan; sections; shell plating expansion; details; light frame plan |
|
Difficulty level |
D |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
5 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
7 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
265 |
|
Particulars |
l.o.a. 117 cm |
|
Remarks |
artek 0045 |
