| Article number: | 16.19.015 |
Specifications :
|
Drawing number |
16.19.015 |
|
Description |

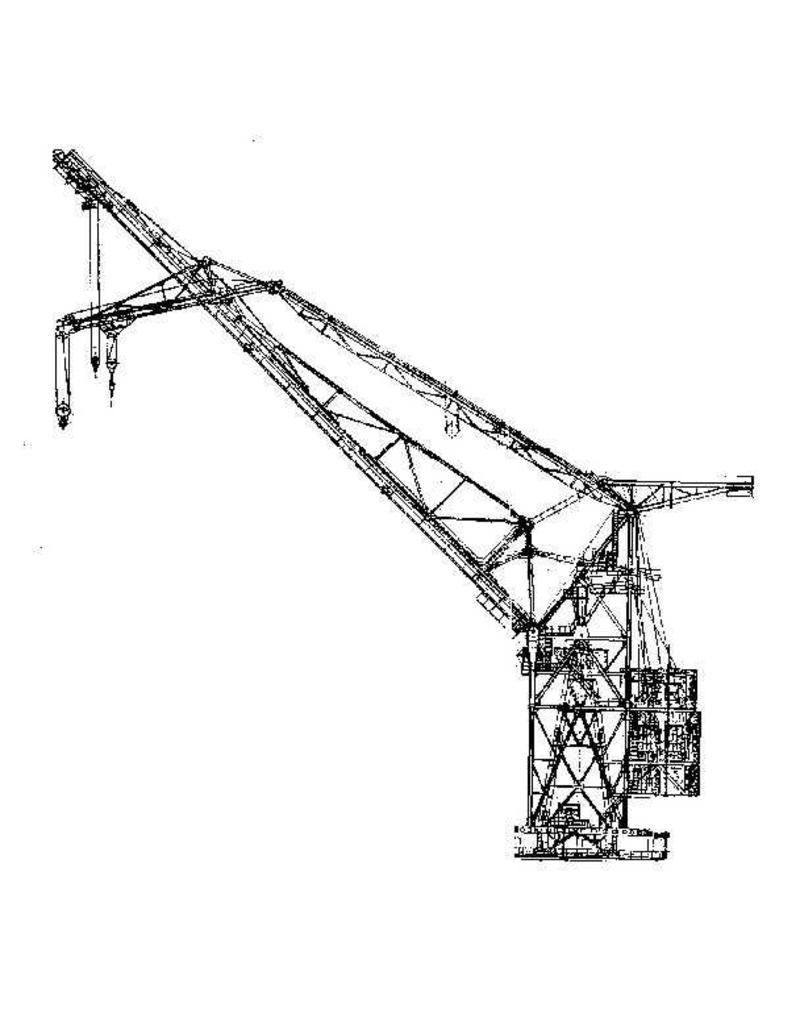

floating crane 350 Tonne |
|
View |
side view; front view; top view |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Details |
l.o.a. 31 cm |
|
Remarks |
artek 4415 |
