| Article number: | 16.19.020 |
Specifications :
|
Drawing number |
16.19.020 |
|
Description |

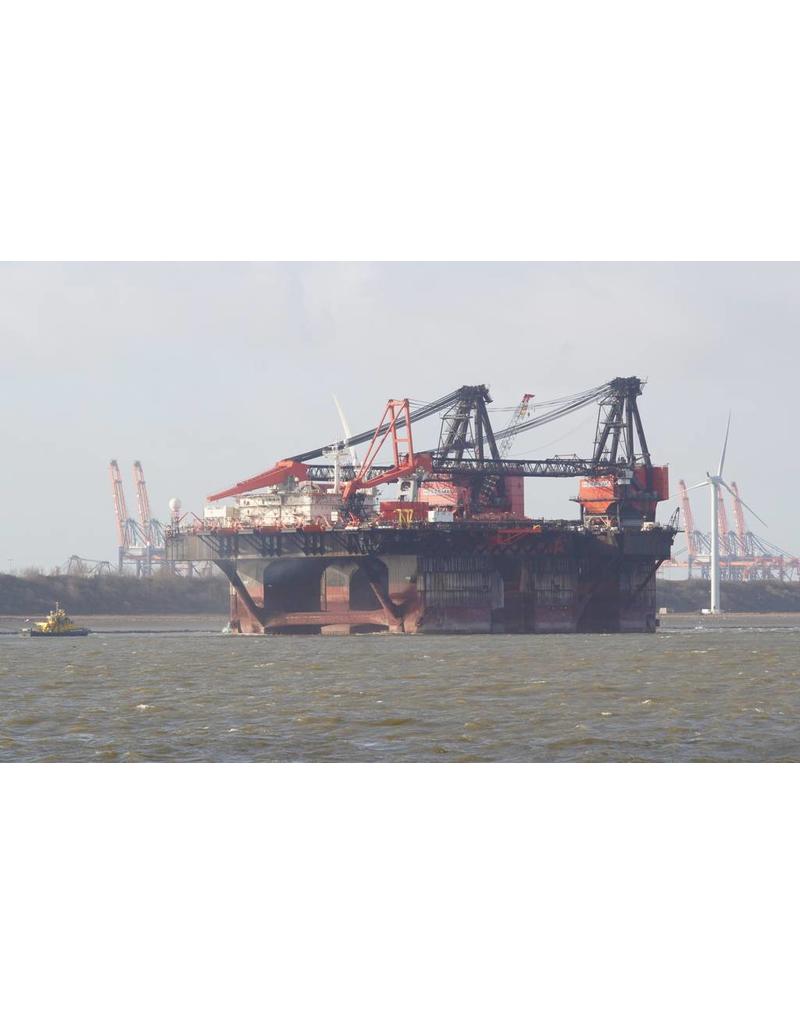

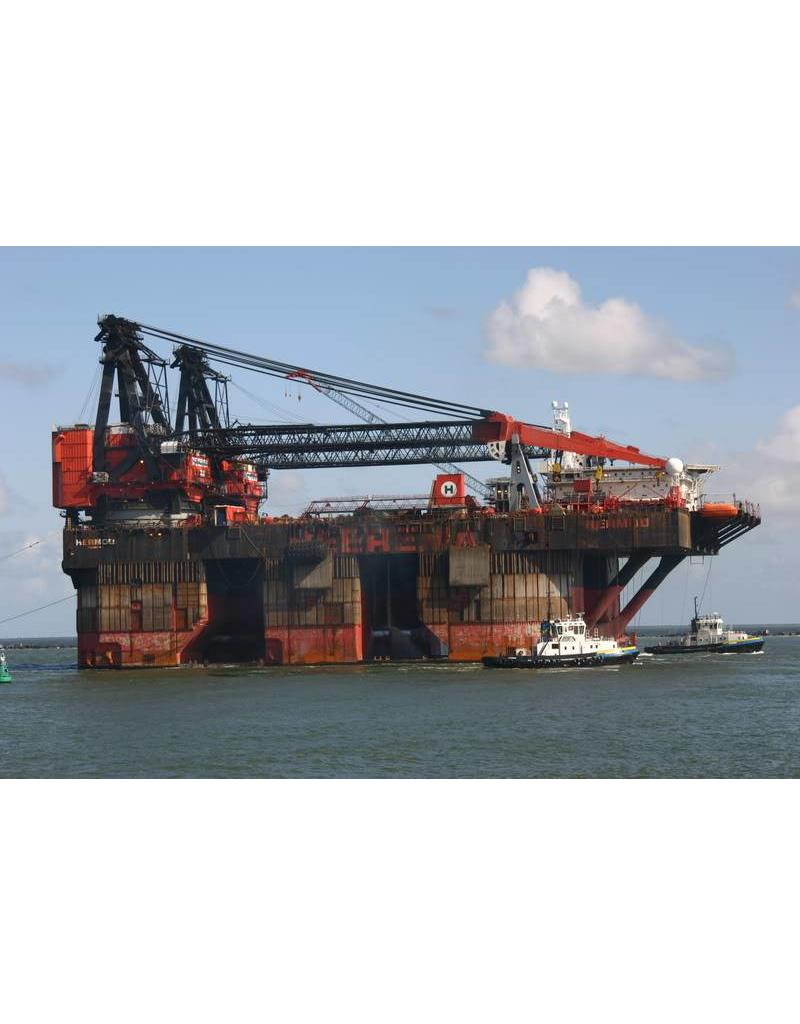

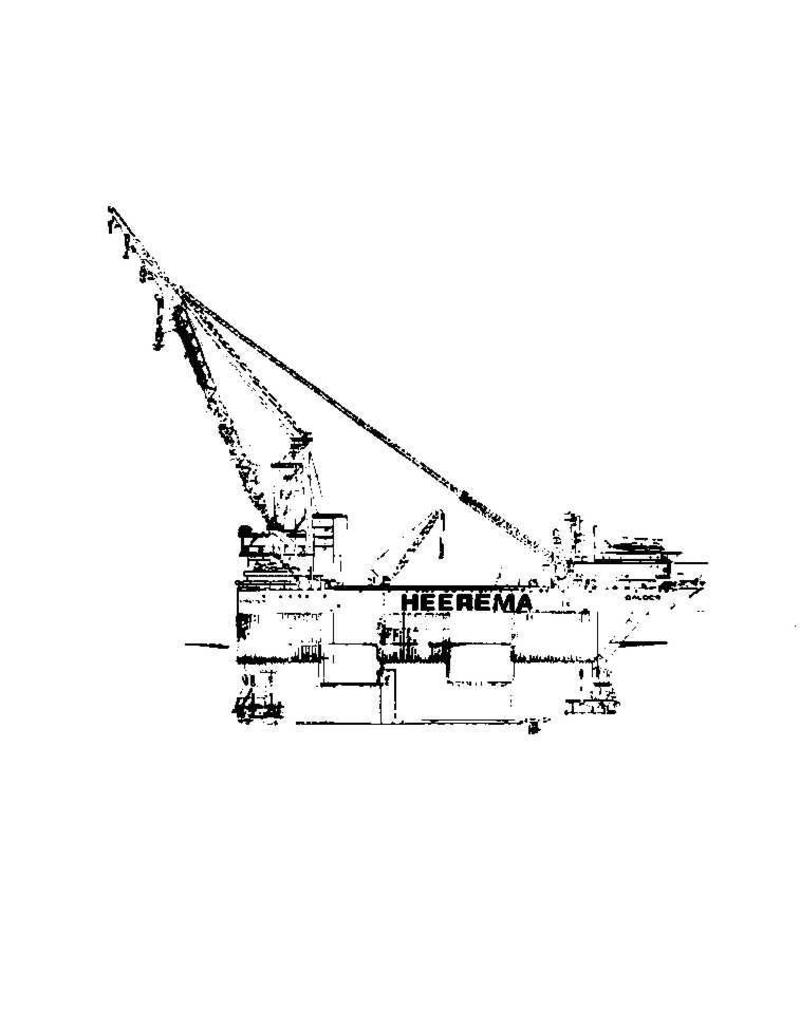

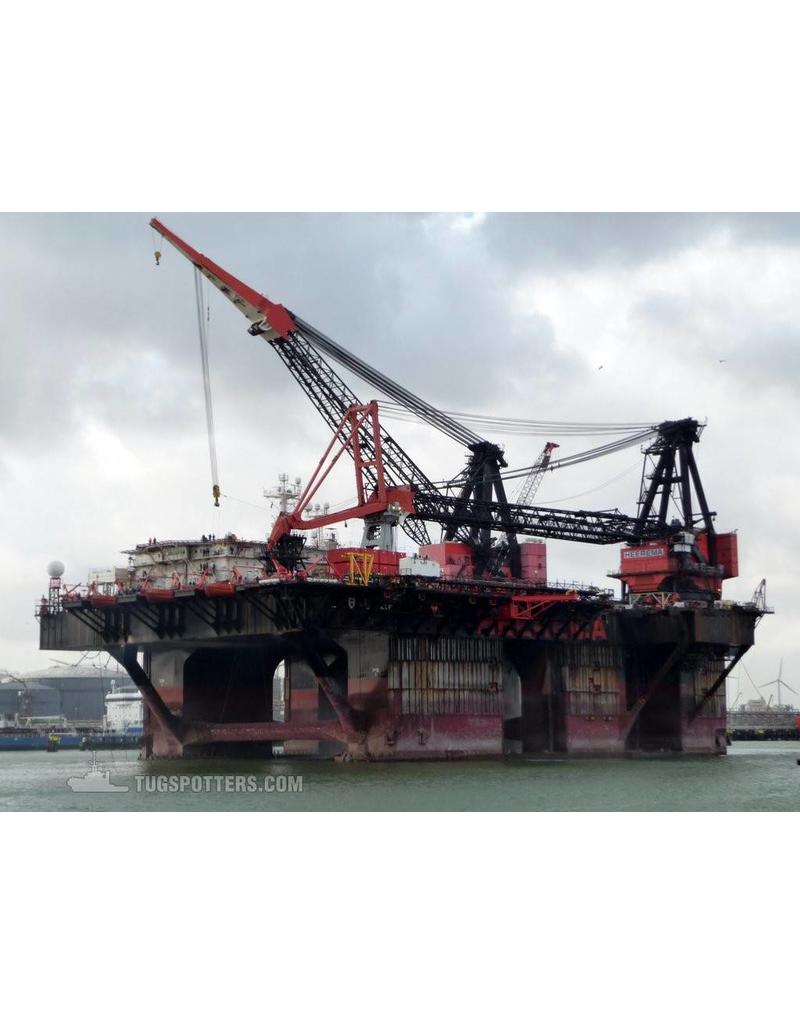

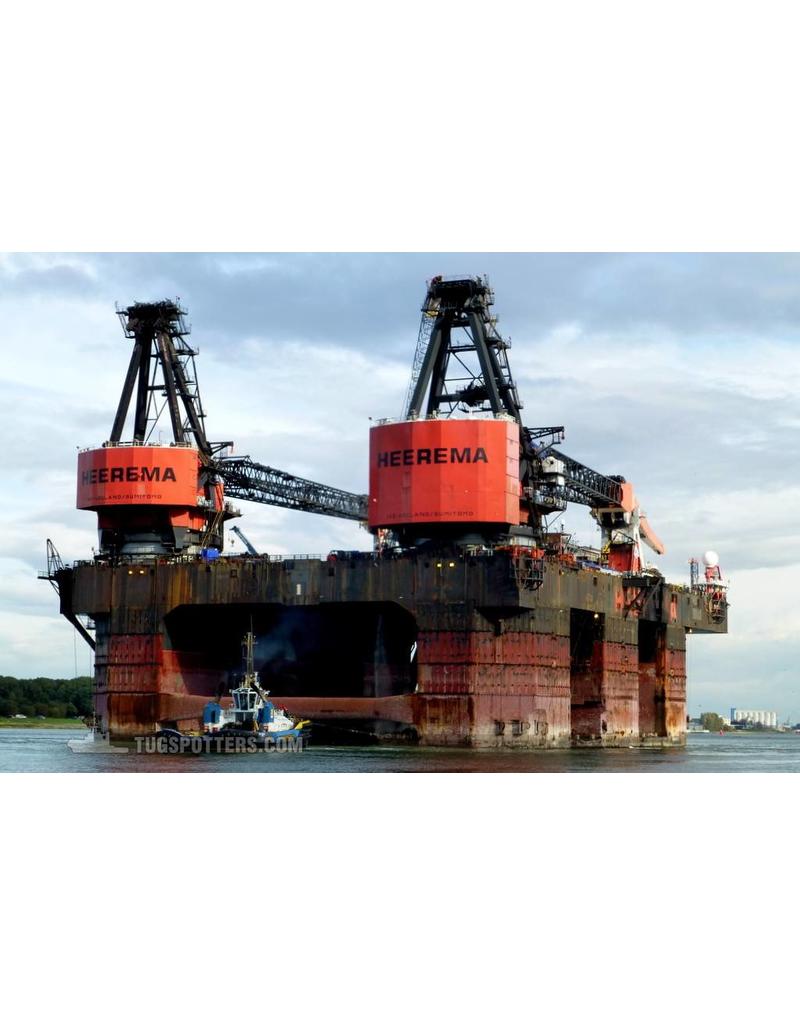

crane vessel "Balder" (1978) - Heerema |
|
Quality |
general plan; deck layout 1:75; cranes 1:200 |
|
Difficulty level |
D |
|
Scale |
21 : 50 |
|
Number of sheets A00 |
3 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
6 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
2 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
12 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
560 |
|
Particulars |
l.o.a. 60 cm |
|
Remarks |
artek 4334-2 Ì´Ì_
|
