| Article number: | 16.19.022 |
Specifications :
|
Drawing number |
16.19.022 |
|
Description |

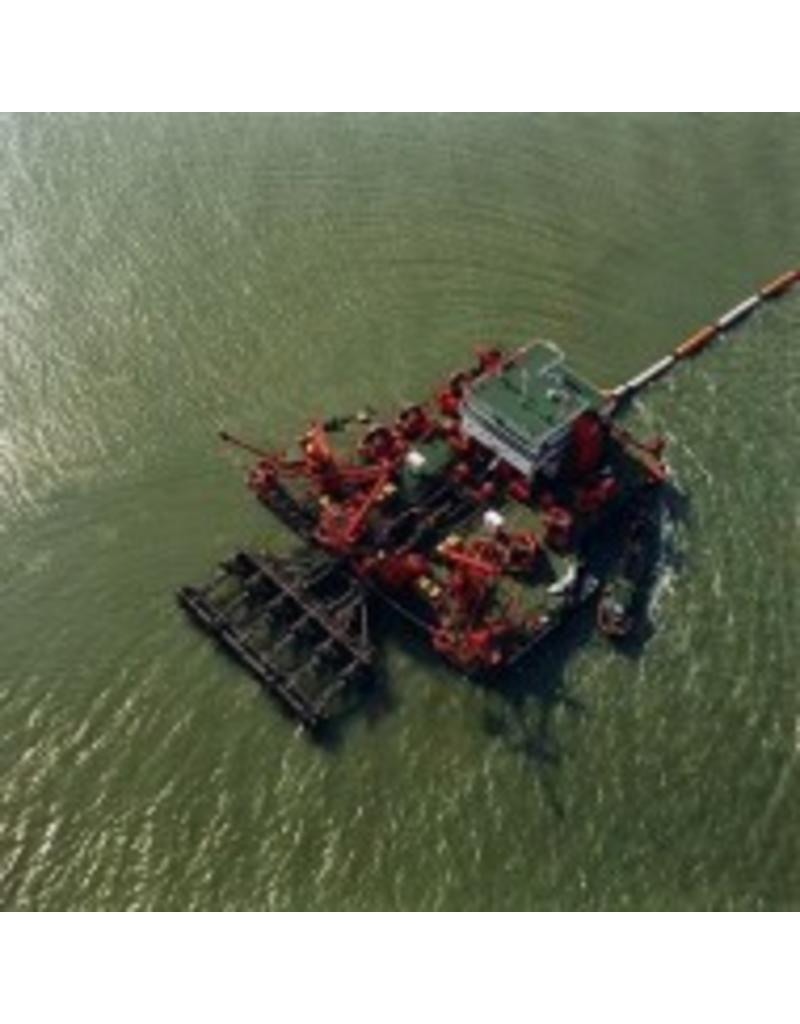

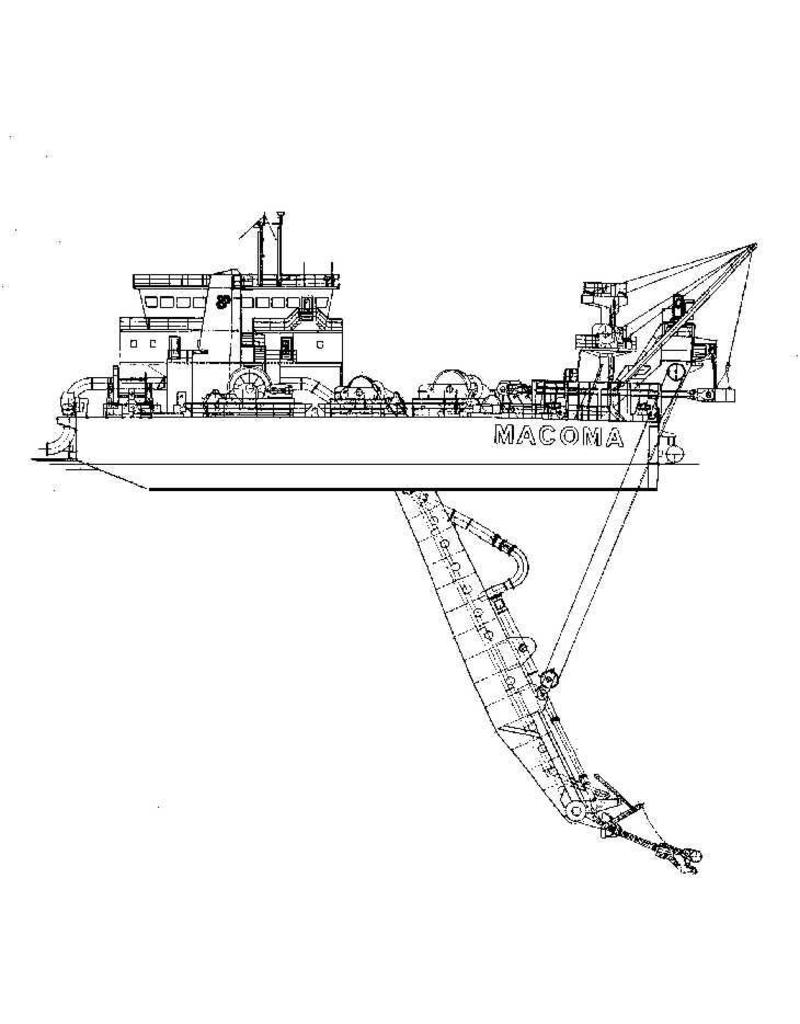

working island for the Delta Works "Macoma" |
|
Quality |
general plan with all-round views |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Particulars |
dM 2006/5 |
|
Remarks |
