| Article number: | 16.19.025 |
Specifications :
|
Drawing number |
16.19.025 |
|
Description |

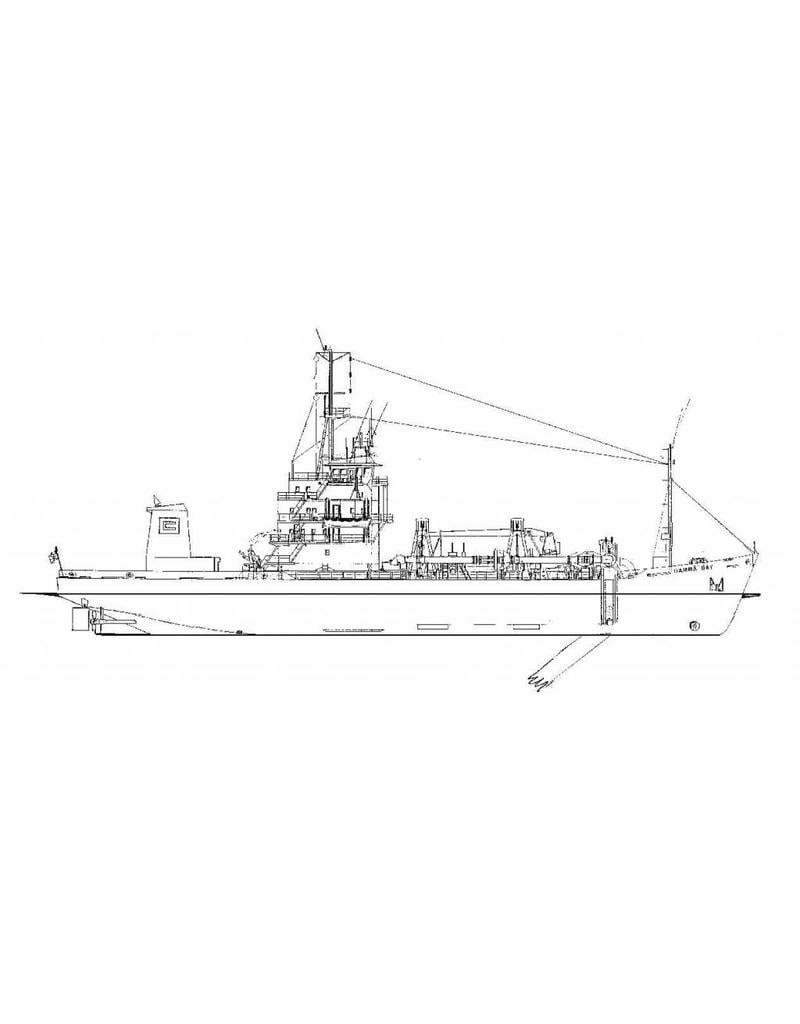

trailing suction hopper dredger ms "Gamma Bay (1980)" - Costain Blankevoort |
|
Quality |
general plan; sp/lines; details |
|
Difficulty level |
D |
|
Scale |
1 : 119 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
3 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Particulars |
l.o.a. 1:50 cm |
|
Remarks |
artek 4171 |
