| Article number: | 16.19.026 |
Specifications :
|
Drawing number |
16.19.026 |
|
Description |

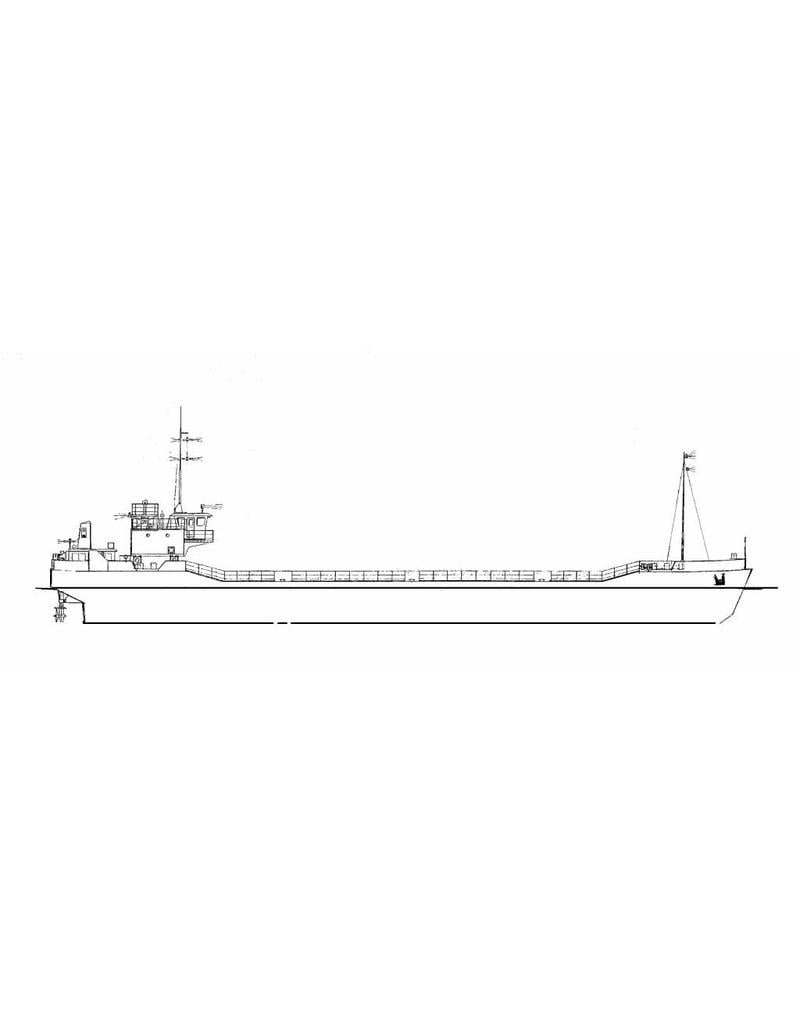

split hopper barge ms Ostion (1976) - |
|
Quality |
general arrangement; sections/lines 1:25, 1:50 and 1:100 |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
2 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
155 |
|
Particulars |
l.o.a. 65 cm |
|
Remarks |
artek 4170 |
