| Article number: | 16.19.031 |
Specifications :
|
Drawing number |
16.19.031 |
|
Description |

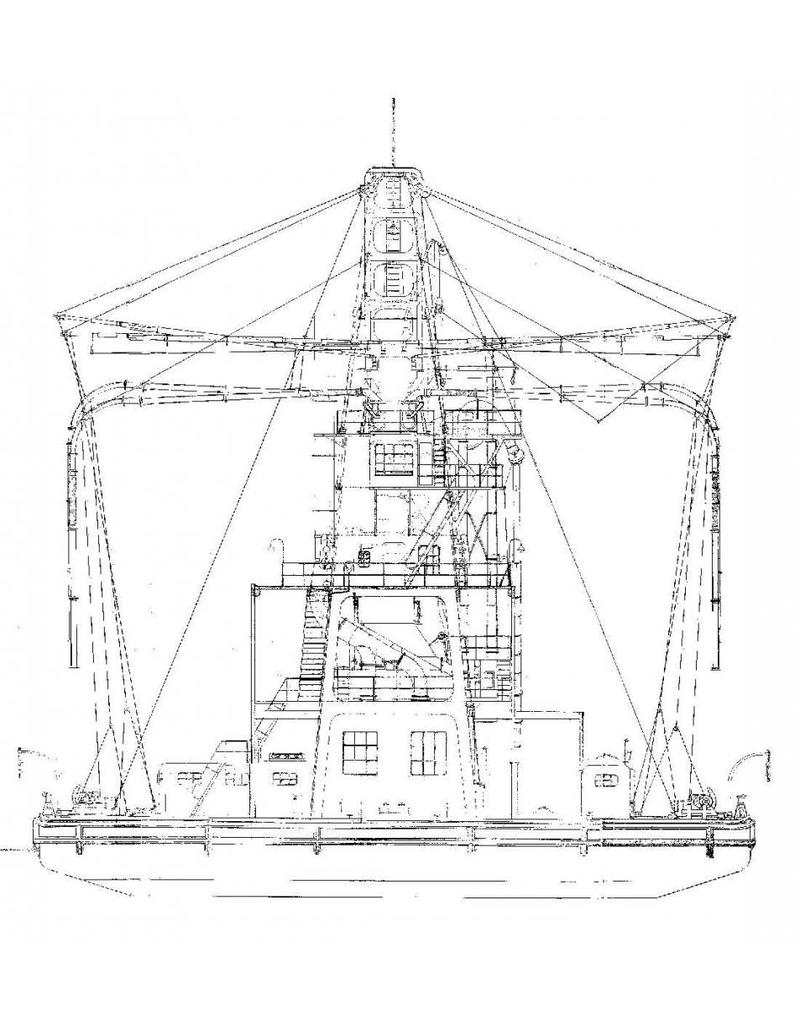

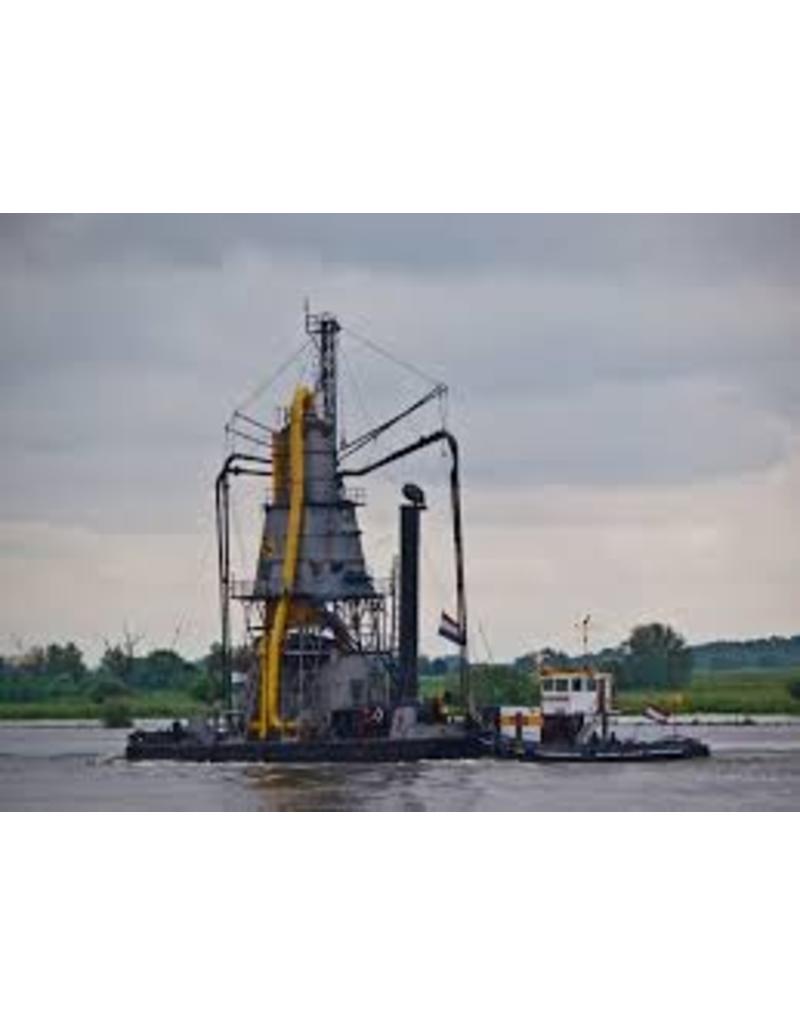

grain elevator |
|
Quality |
general plan; no frames or lines plan; pontoon shape |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
11:25 |
|
Details |
l.o.a. 60 cm; height 66 cm |
|
Remarks |
artek 4328 |
