| Article number: | 16.19.039 |
Specifications :
|
Drawing number |
16.19.039 |
|
Description |

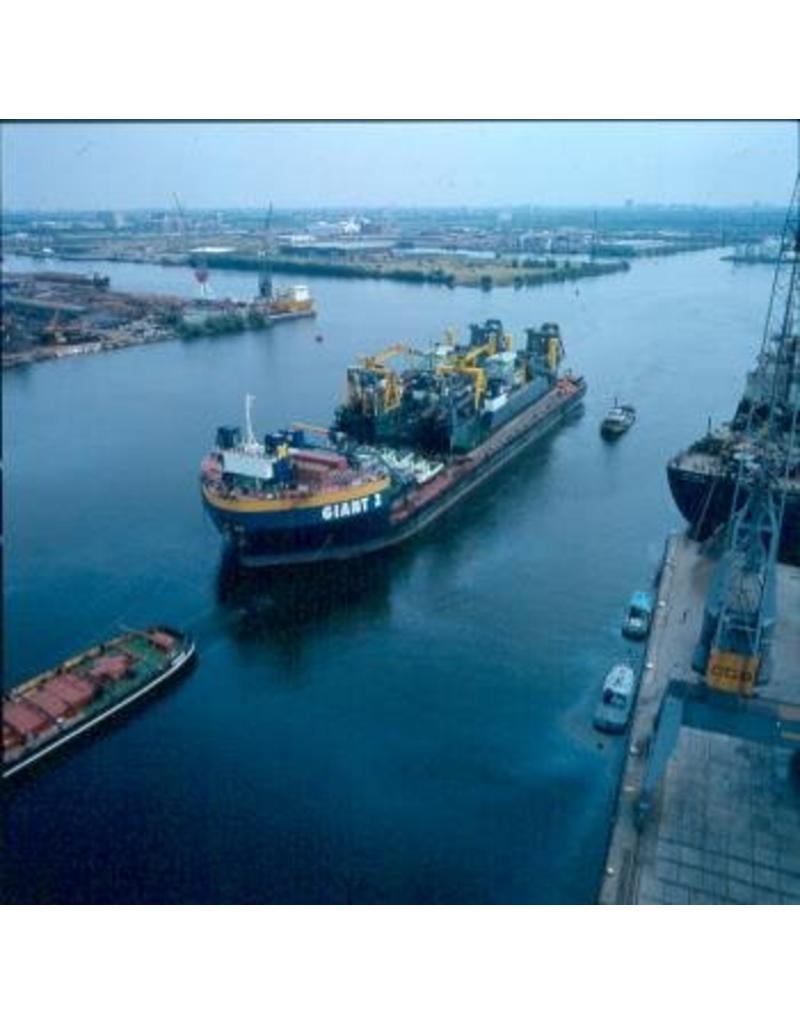

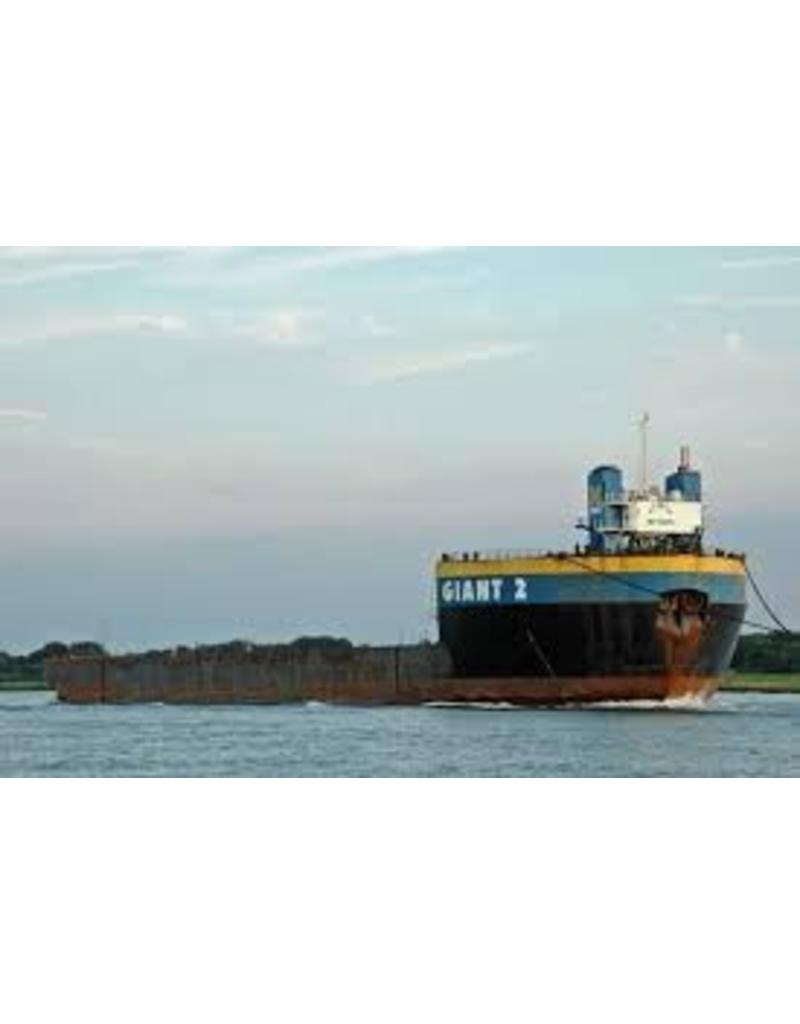

submersible pontoon Giant 2 (1976) - Smit Internationale |
|
Quality |

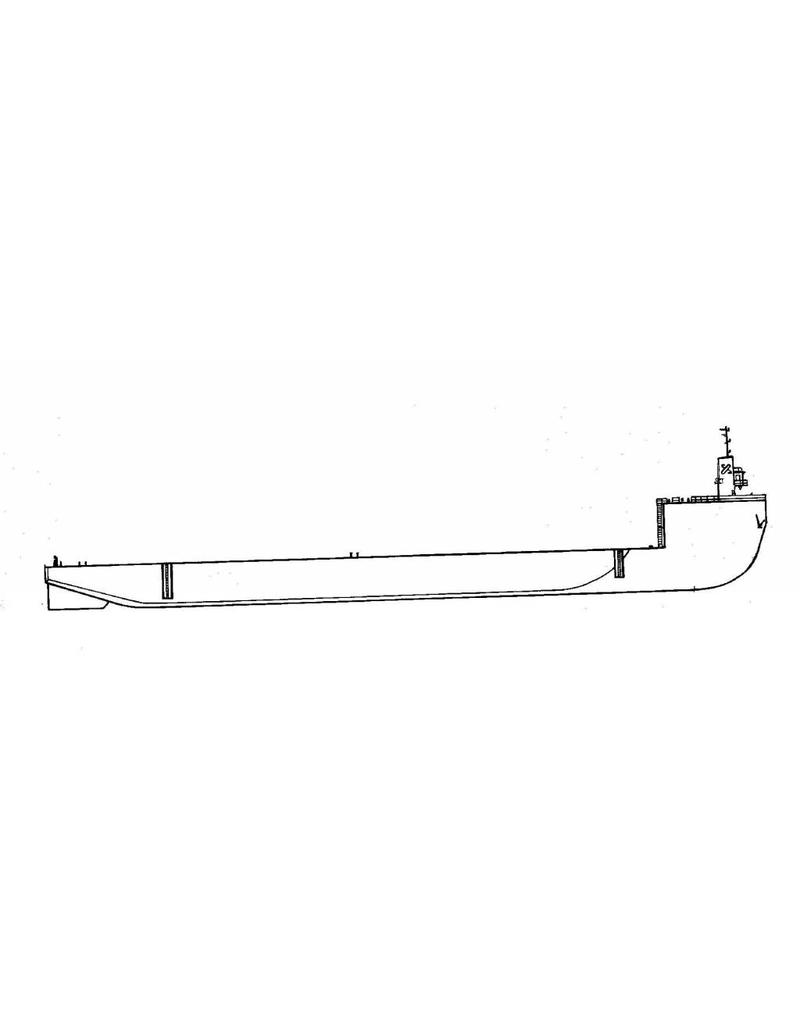

general arrangement plan; frame plan |
|
Difficulty level |
C |
|
Scale |
1 : 200 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
Ì´Ì_ |
|
Particulars |
l.o.a. 70 cm |
|
Remarks |
artek 4336-2 Ì´Ì_
|
