MBT 20.06.002 20-ton sand wagon GZMW NS 83030 for Gauge I

Drawing number

20.06.002

H.N.M.de Vrimper

Description

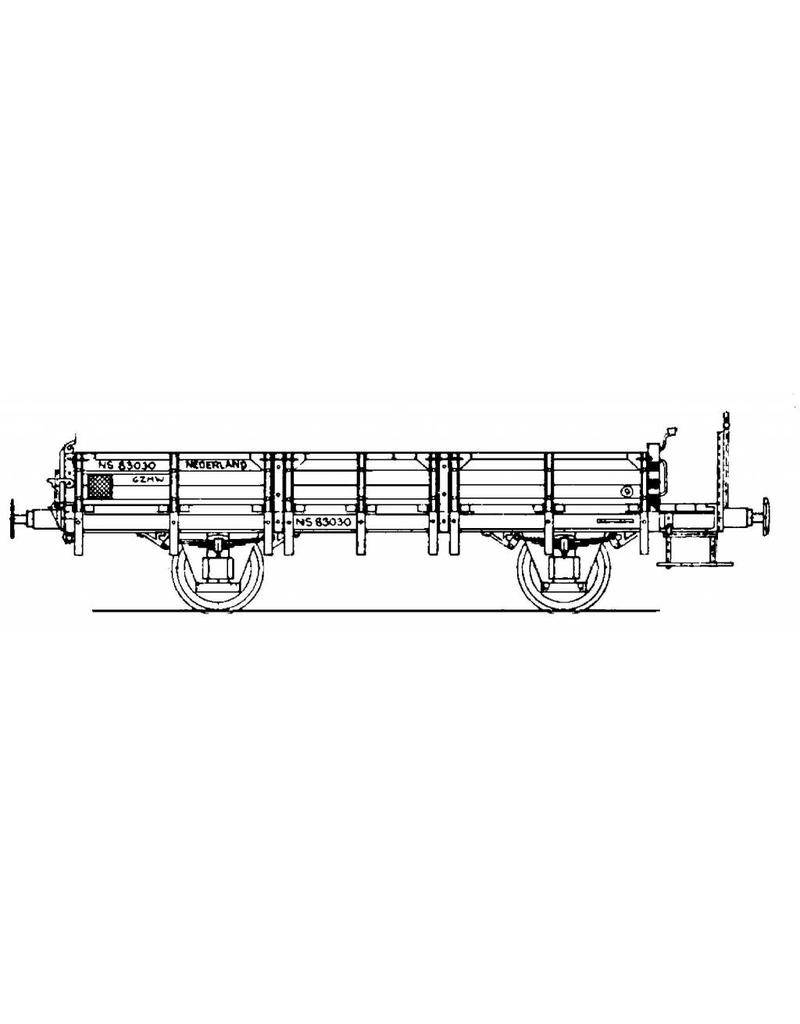

20-ton sand wagon GZMW NS 83030 for Gauge I

Quality

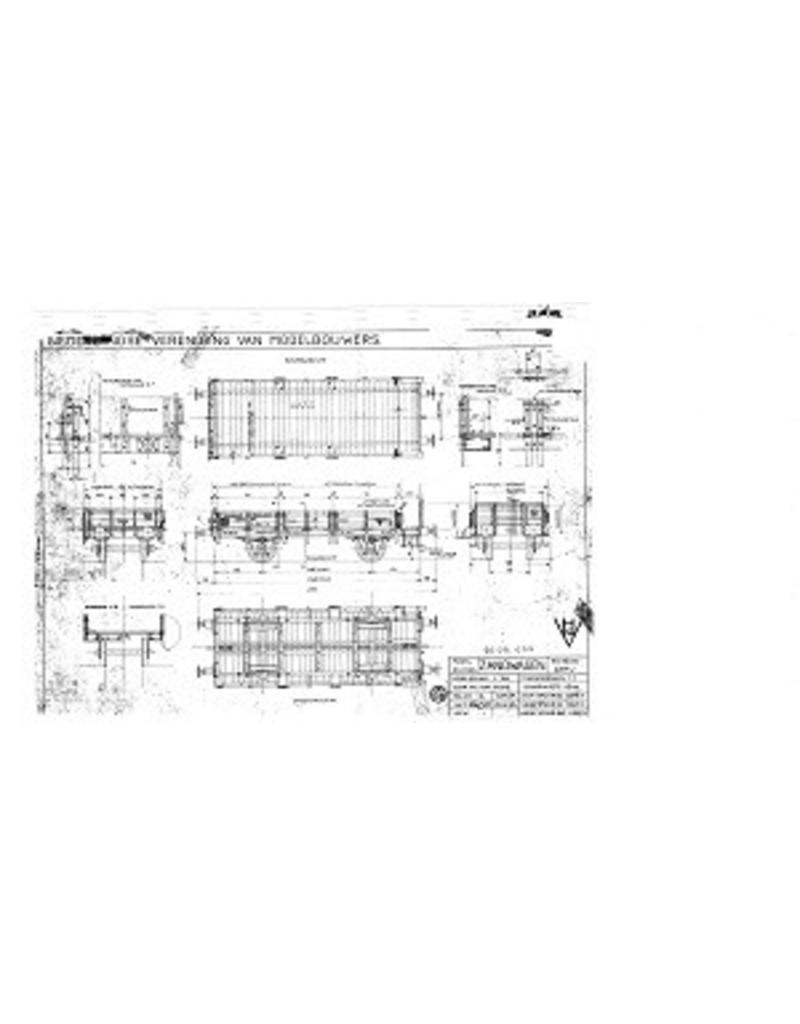

construction drawing with model dimensions and main prototype dimensions

Difficulty level

D

Scale

1 : 31,8

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

1

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

65

Special features

dM 1948/10, 1987/10

Copy of article: 22.06.002 (3 pages)

see also 20.06.002 to 20.06.011 and 20.06.099

The drawing provides conversion factors for gauges 0, 00 and H0

Remarks
