| Article number: | 20.06.004 |
Specifications :
|
Drawing number |
20.06.004 |
|
Author |
H.de Vries |
|
Description |

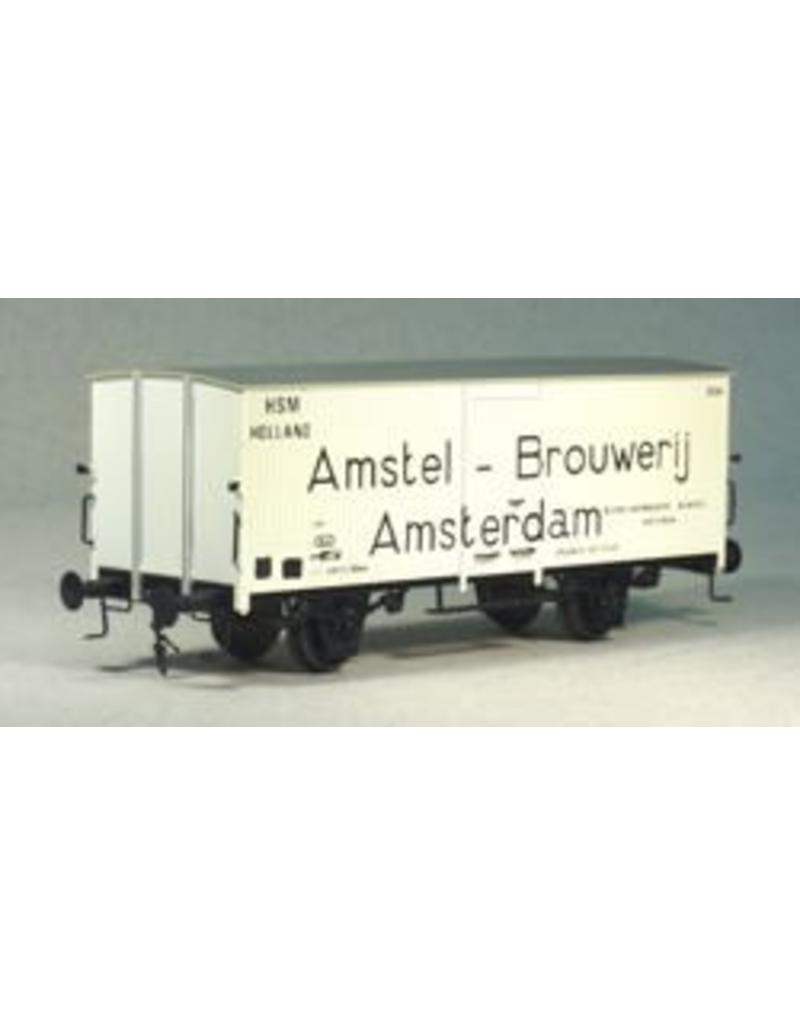

16 ton beer wagon NS 560012 - Amstel Brewery for gauge I |
|
Quality |

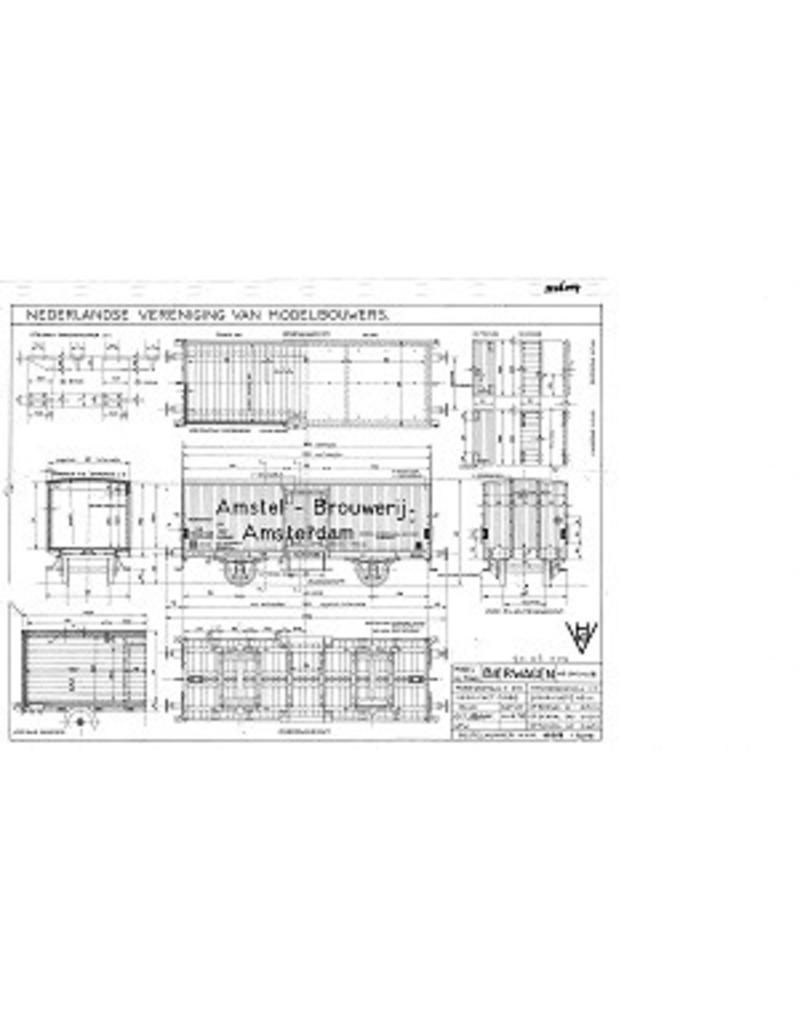

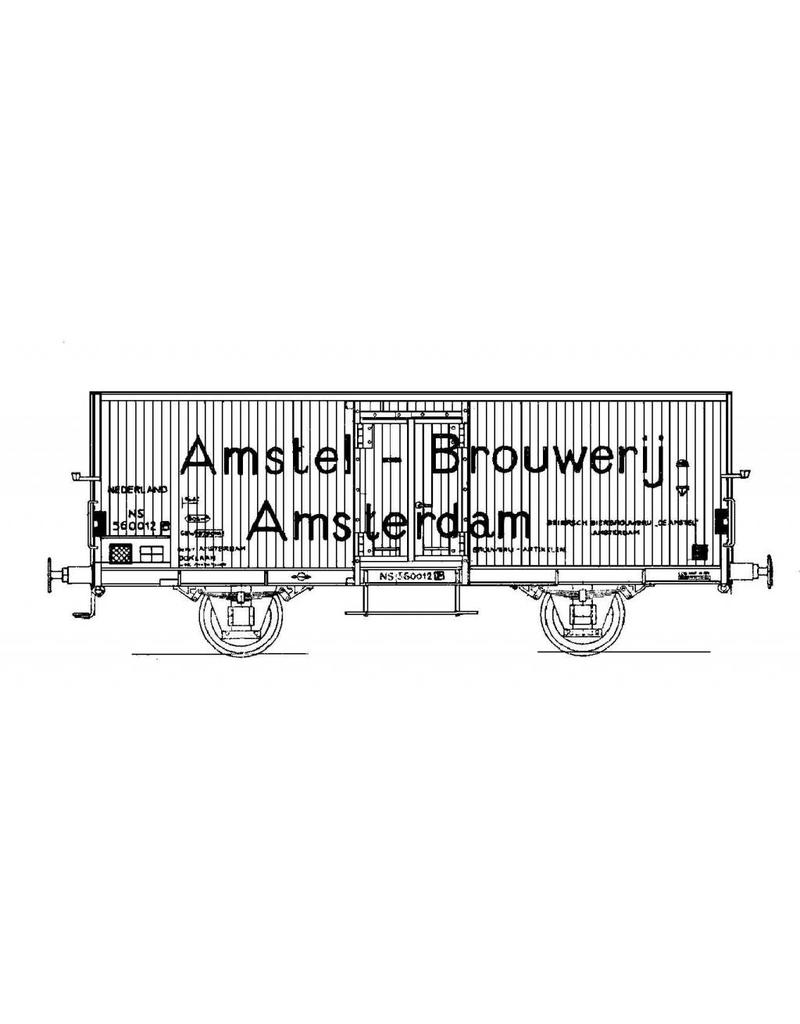

construction drawing with model dimensions and main prototype dimensions |
|
Difficulty level |
D |
|
Scale |
1 : 31,8 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Special features |
dM 1948/12, 1988/1 |
|
Remarks |
