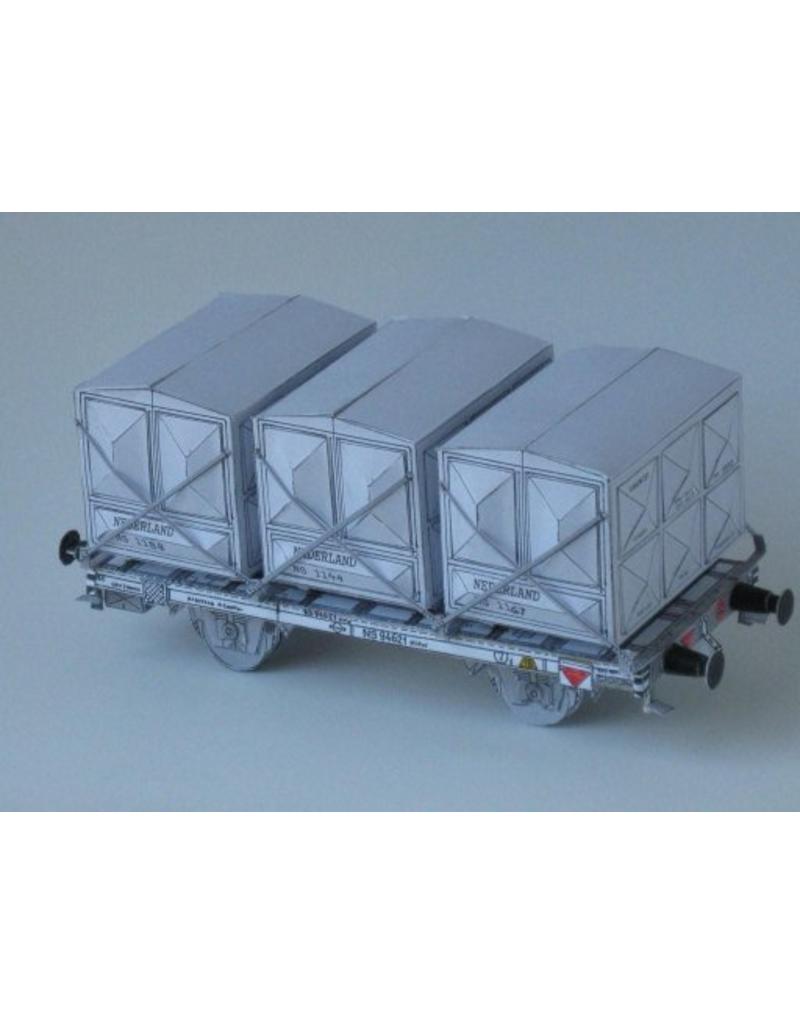

MBT 20.06.006 18 tons container wagon hhw NS 94621 for gauge I

Drawing number

20.06.006

Author

H.de Vries

Description

18 tons container wagon hhw NS 94621 for gauge I

Quality

construction drawing with model dimensions and main prototype dimensions

Difficulty level

D

Scale

1 : 31,8

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

1

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

65

Particulars

dM 1949/3, 1979/6, 1988/3

Copy of article: 22.06.006 (2 pages)

see also 20.06.002 to 20.06.011 and 20.06.099

The drawing provides conversion factors for gauge 0, 00 and H0

Remarks
