| Article number: | 30.06.033 |
|
Drawing number |
30.06.033 |
|
Author |
G.J. Volgers |
|
Description |

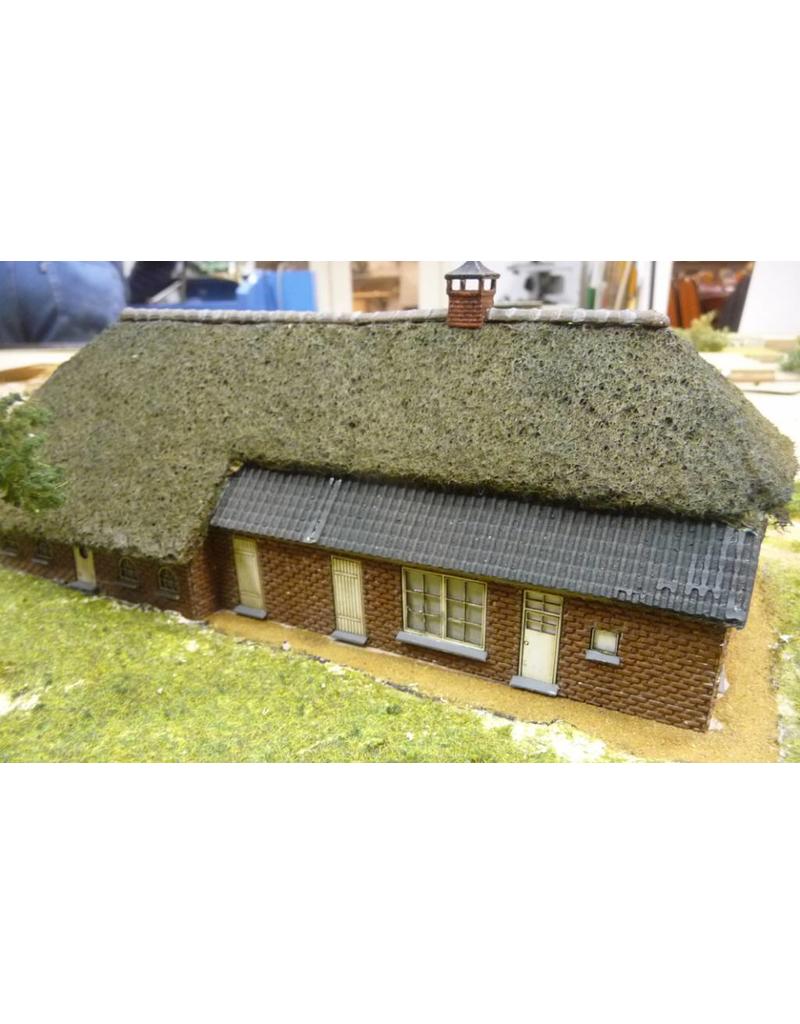

Long-gable farmhouse |
|
Difficulty level |
B |
|
Quality |
detailed model building drawing |
|
Scale |
1 : 87 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Number of sheets A4 text |
0 |
|
Weight in grams |
65 |
|
Special features |

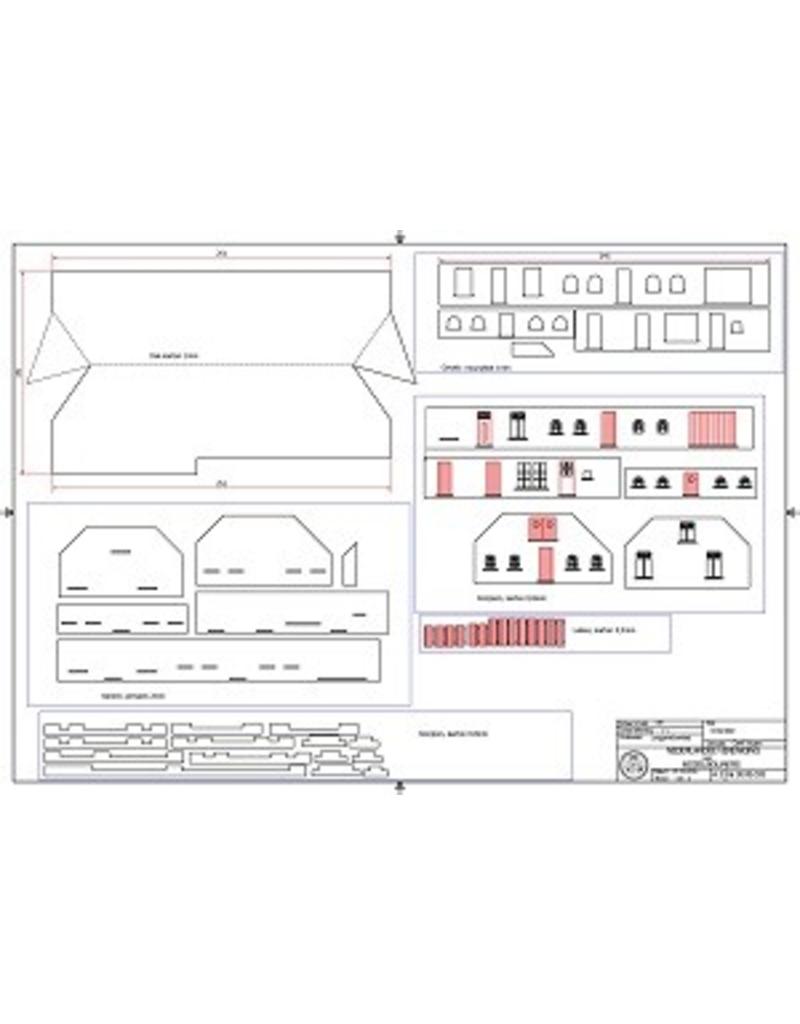

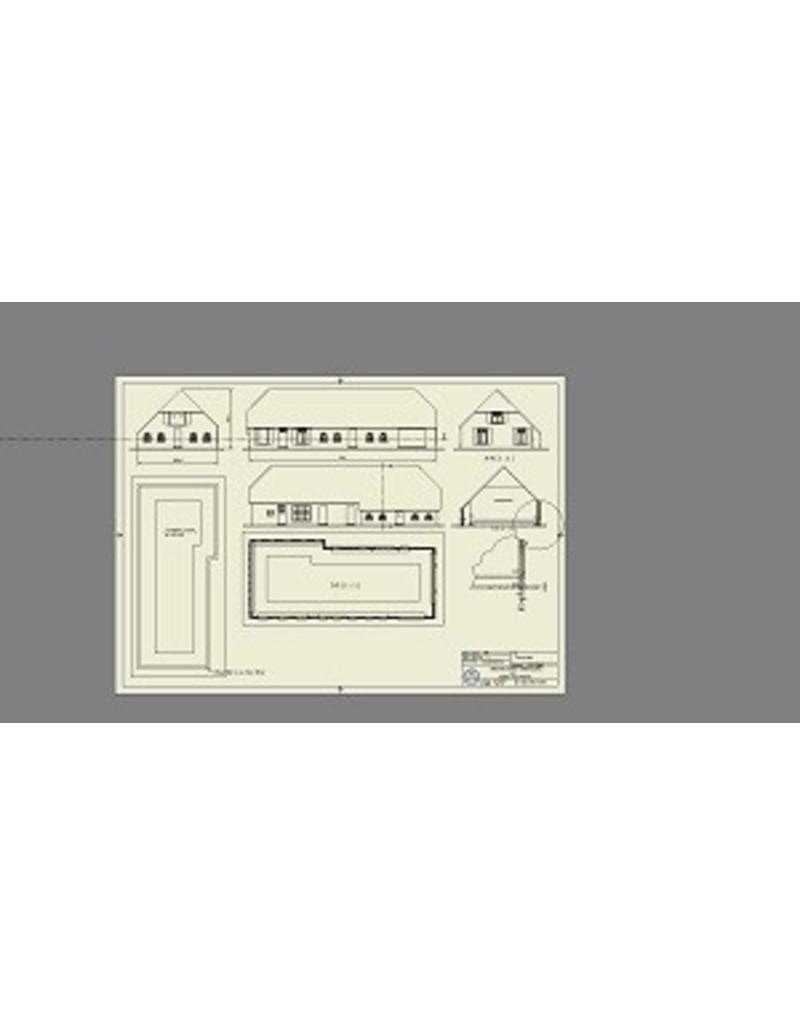

The drawings show the floor plan and elevations and the individual parts. A CAD file for CNC or laser cutting can be made available. |
|
