| Article number: | 30.09.019 |
Specifications :
|
Drawing number |
30.09.019 |
|
Author |
L. Vrugt |
|
Description |

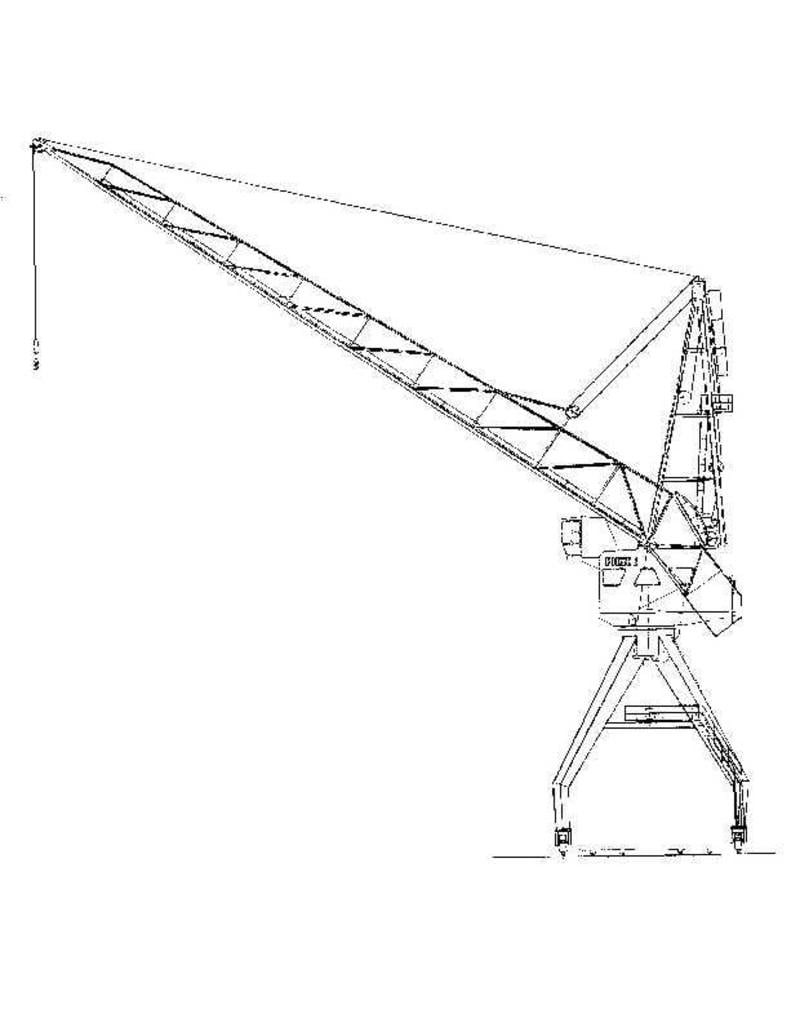

harbour crane Figee |
|
Quality |
|
|
Difficulty level |
|
|
Scale |
1 : 87 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Details |
dM 1961/1,5-7 |
|
Remarks |
was 30.02.006 |
