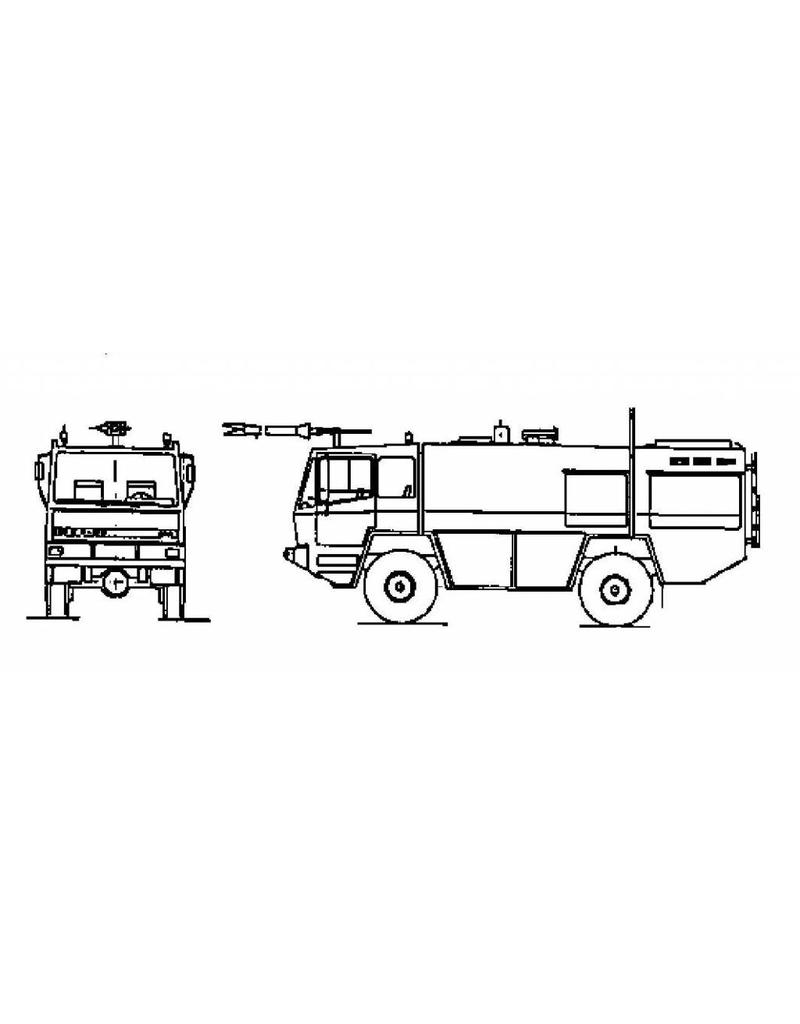

MBT 40.04.026 crash tender Saval-Kronenburg MAC 06

Drawing number

40.04.026

Author

G.J. Volgers

Description

crash tender Saval-Kronenburg MAC 06

Quality

Difficulty

Scale

1 : 45

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

1

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

35

Details

dM 1982/11

Copy of article: 42.04.026 (2 pp)

see also 40.04.022 and 40.04.025. The entire series covers the construction of crash tenders in plexiglass (14 pp)

Notes
