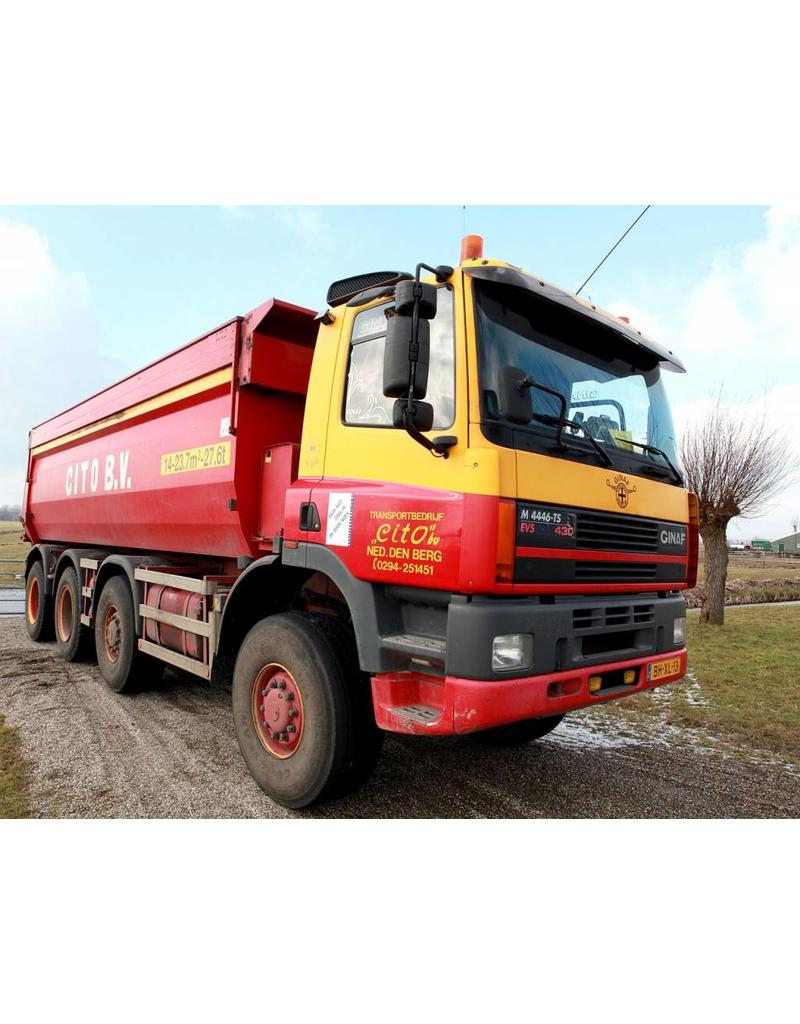

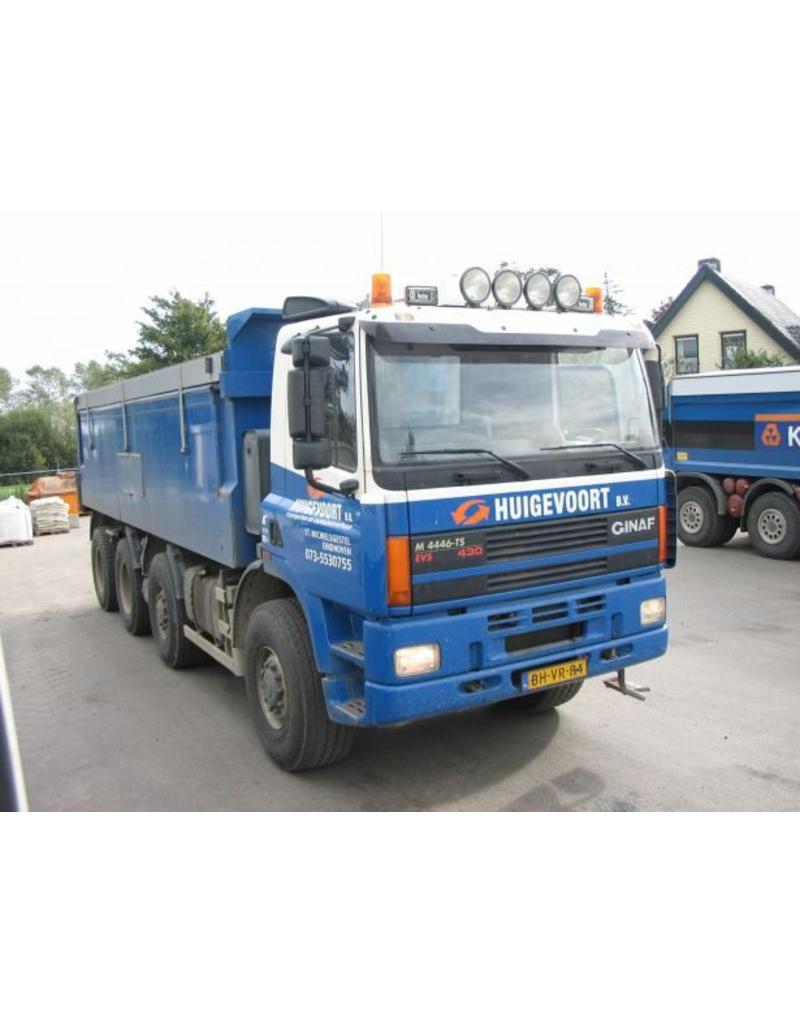

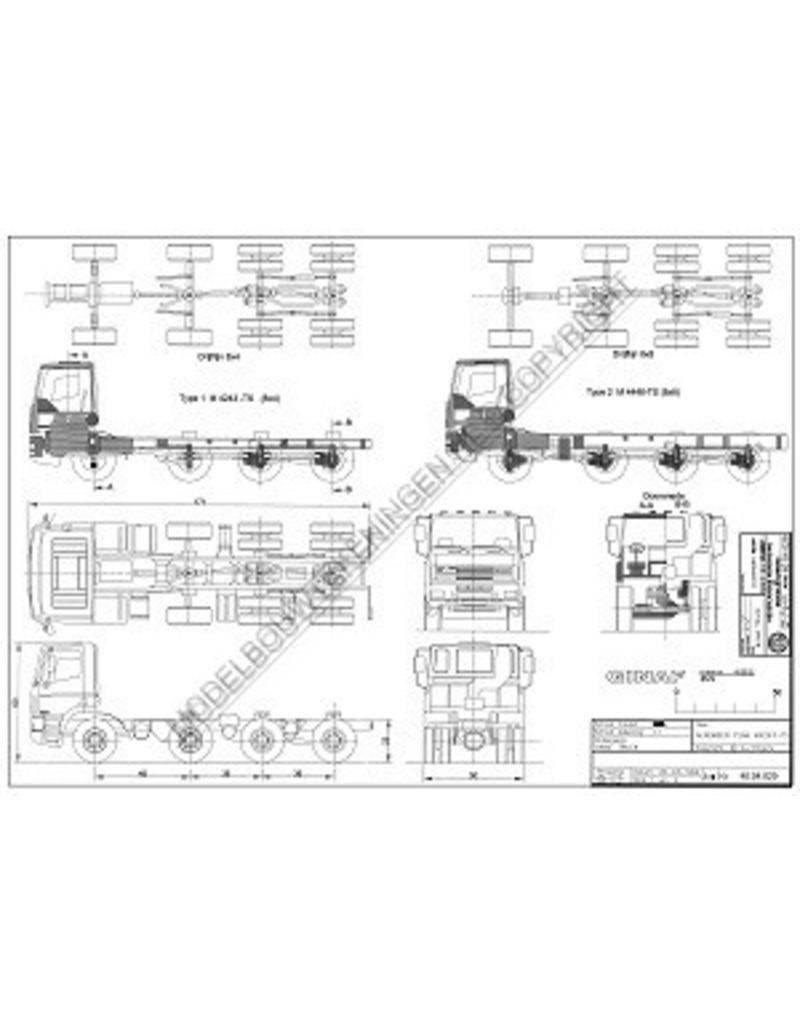

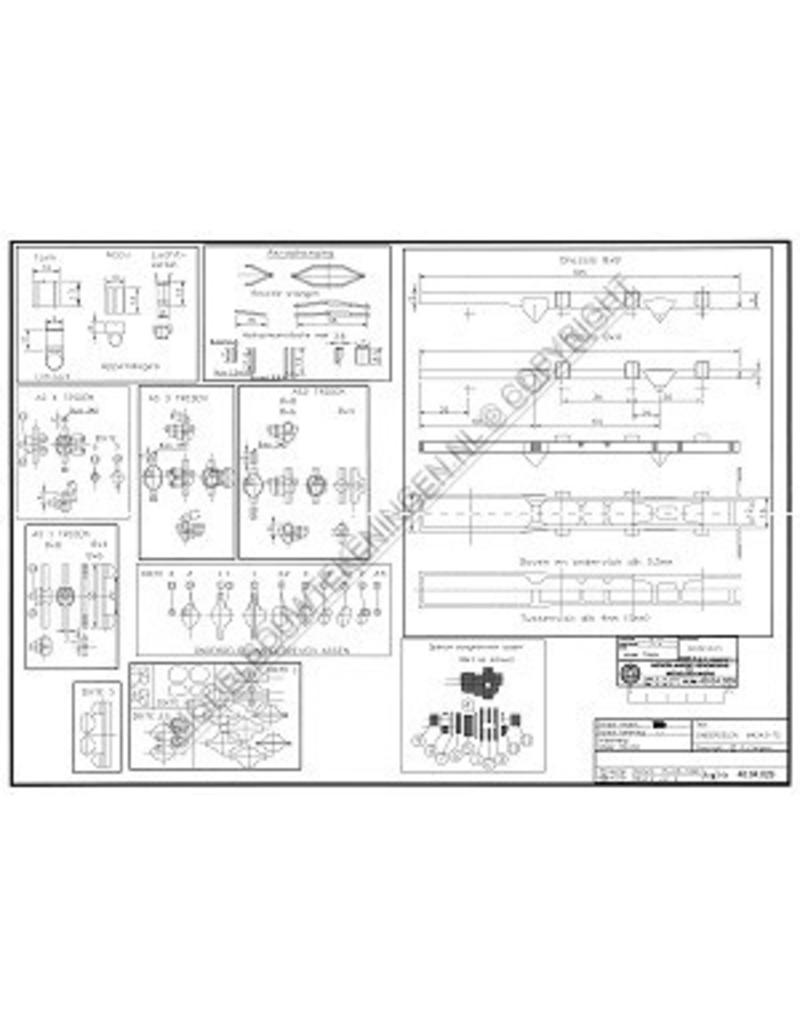

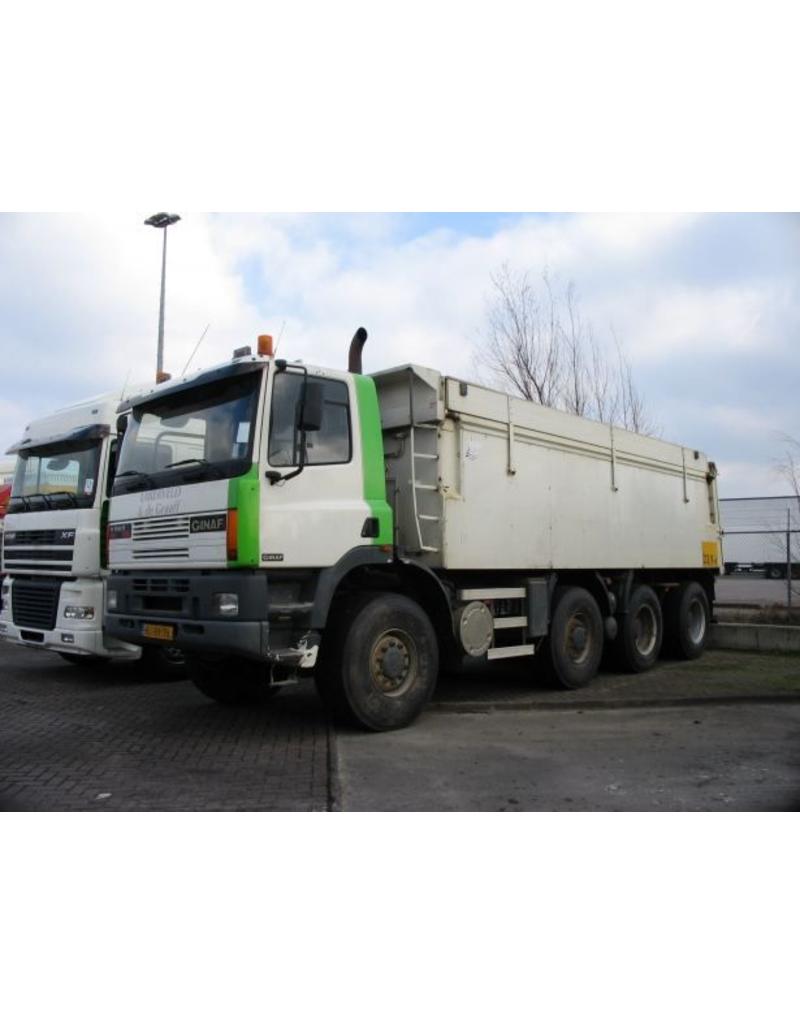

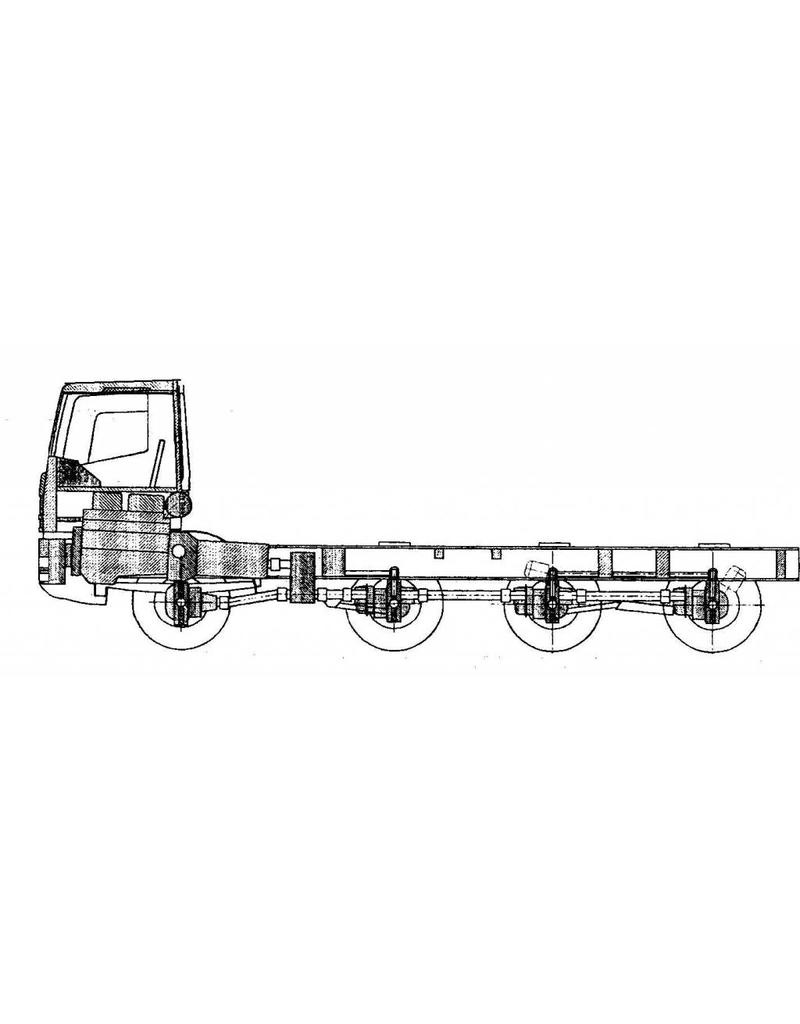

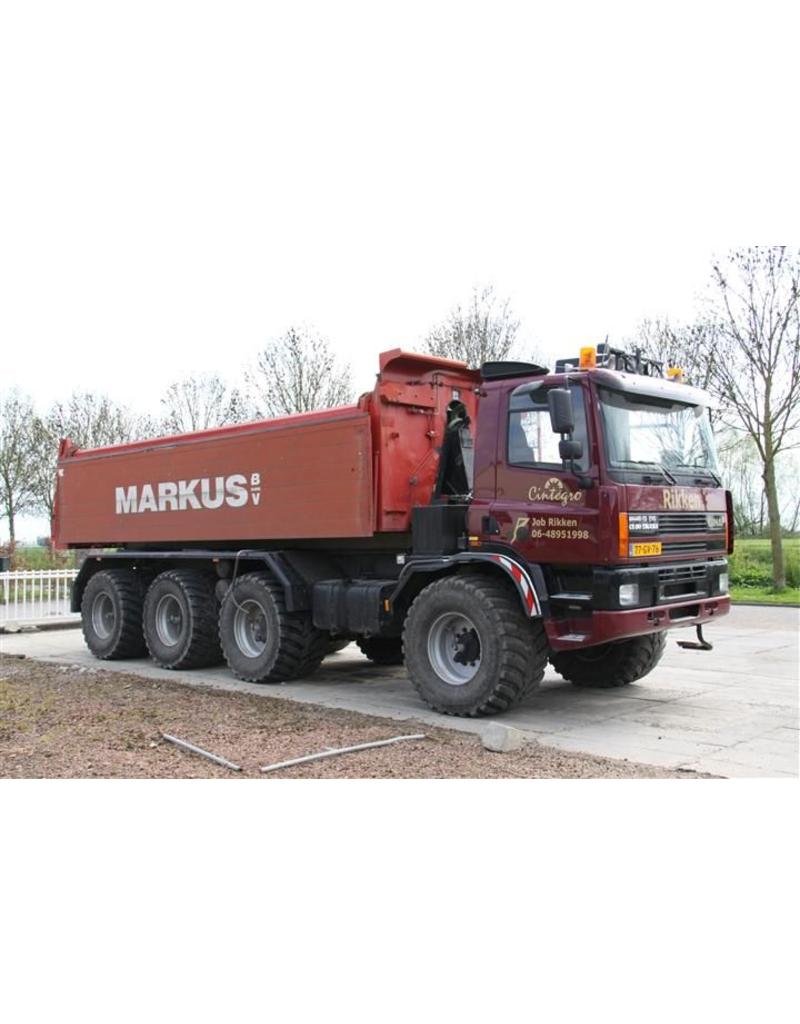

MBT 40.04.029 GINAF truck type 2 M4446-TS 8x8

Drawing number

40.04.029

Author

G.J. Volgers

Description

GINAF truck type 2 M4446-TS 8x8

Quality

C

Difficulty level

Scale

1 : 50

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

2

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

2

Number of A4 text sheets

0

Weight in grams

65

Particulars

dM 1999/7,8

Copy article: 42.04.029 (8 pp)

the drawing is based on the conversion of a white metal kit from Van Zon Model

Remarks
