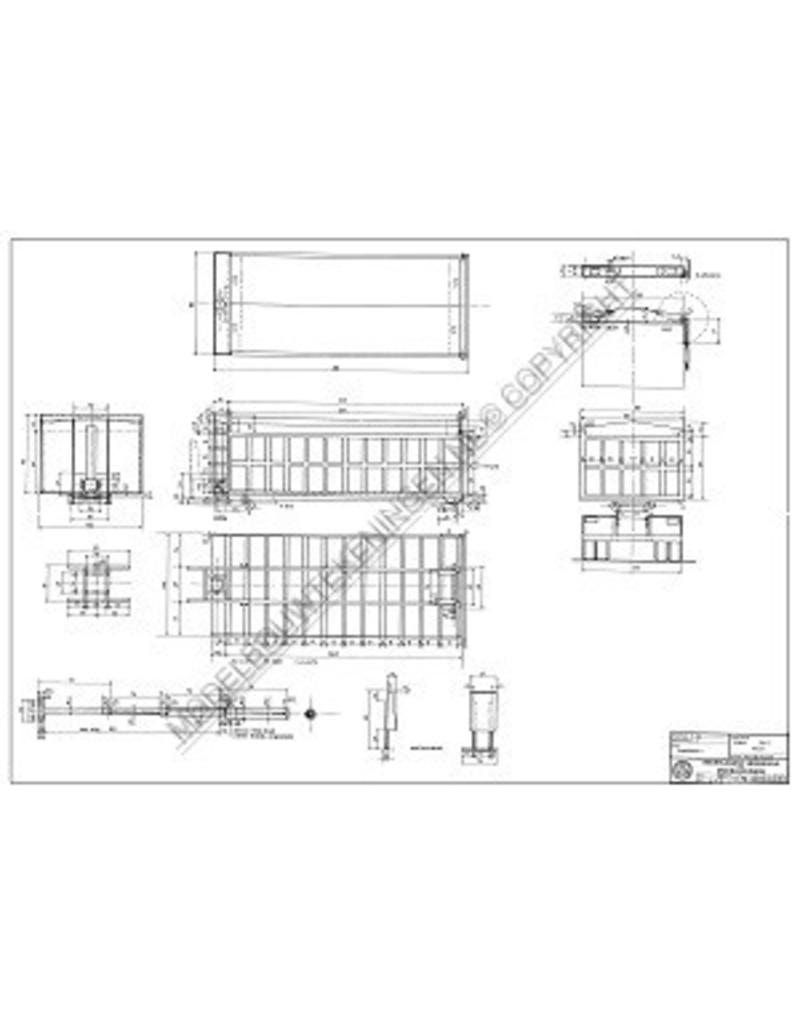

MBT 40.04.033 GINAF 5447 10x8

Drawing number

40.04.033

Author

W. van 't SandÌ´Ì_

Description

GINAF 5447 10x8

Quality

C

Difficulty level

Scale

1 : 45

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

2

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

2

Number of A4 text sheets

0

Weight in grams

105

Special features

dM 2002/4

Copy article: 42.04.033 (2 pages)

the drawing is based on the conversion of an Italeri kit for a DAF 95 tandem axle truck

Comments
