| Article number: | 40.10.004/A |
Specifications :
|
Drawing number |
40.10.004/A |
|
Author |
P.F. Bijlholt |
|
Description |

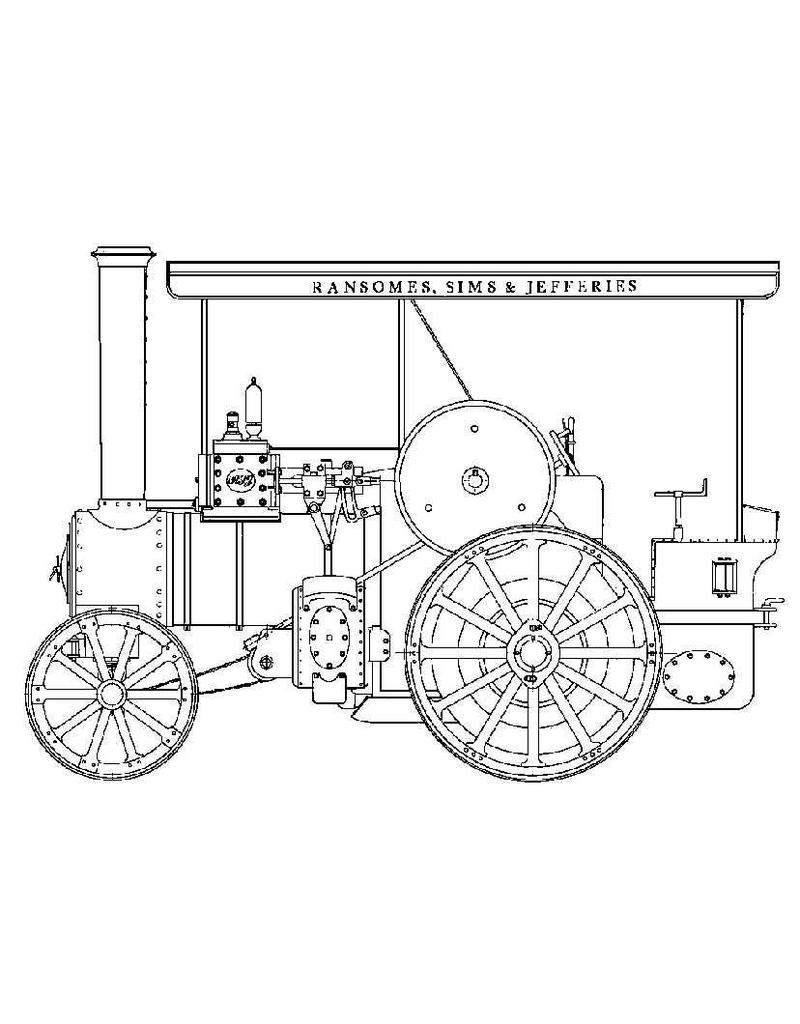

differential with straight gearing for RS&J steam tractor |
|
Quality |
C |
|
Difficulty level |
|
|
Scale |
1 : 6 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Special features |
the original drawing shows a differential with helical gearing; for those unable to make (or have made) this, this drawing offers an alternative |
|
Remarks |
