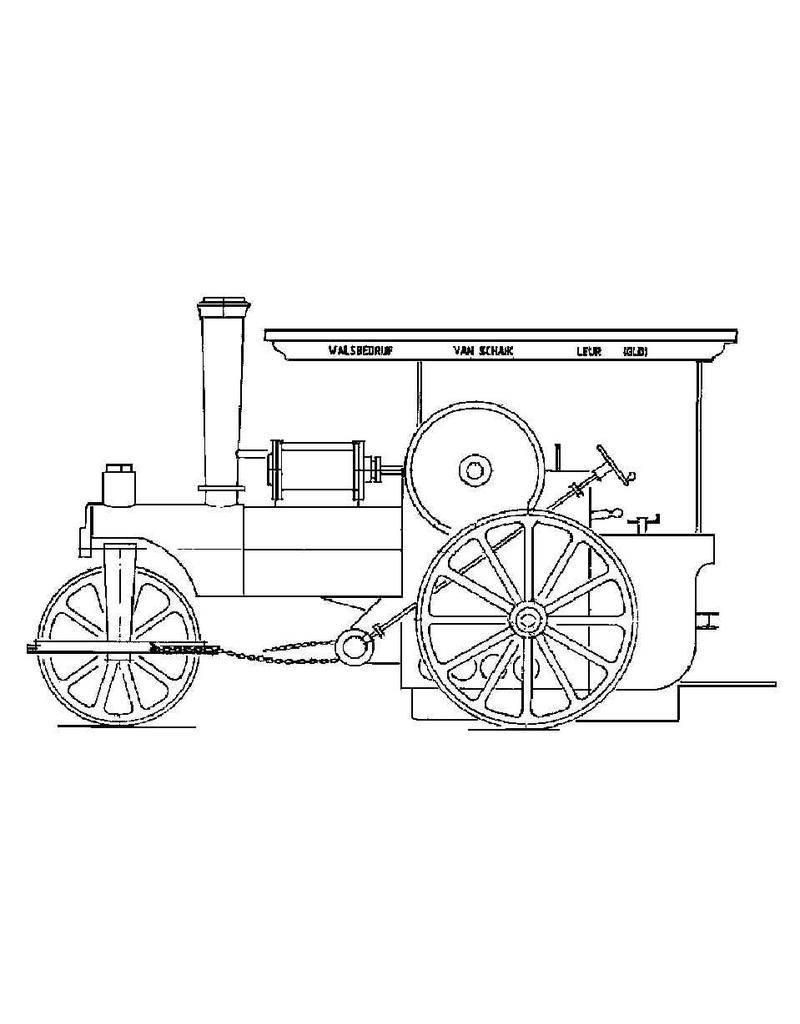

MBT 40.10.007 De Wals - free lance model

Home / Scenery / Motor vehicles / Lorries / 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model MBT 40.10.007 De Wals - free lance model MBT 40.10.007 De Wals - free lance model MBT 40.10.007 De Wals - free lance model MBT 40.10.007 De Wals - free lance model MBT 40.10.007 De Wals - free lance model MBT 40.10.007 De Wals - free lance model MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
MBT 40.10.007 De Wals - free lance model
€42,65
+ -
Add to cart
Article number: 40.10.007


Specifications :

Drawing number

40.10.007

Author

W.A. van Schaik

Description

De Wals - free lance model

Quality

B

Difficulty level



Scale

1 : 1

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

7

Number of sheets A4

0

Total number of drawing sheets

7

Number of A4 text sheets

0

Weight in grams

95

Special features

dM 2000/8 to 2001/1

Copy article: 42.10.007 (8 pages)

alcohol-fired; 3 bar; double-acting oscillating cylinder, bore x stroke 10 x 19 mm; rear wheels diam. 70 mm

Remarks
