| Article number: | 60.01.016 |
Specifications :
|
Drawing number |
60.01.016 |
|
Author |
W.Wilborts |
|
Description |

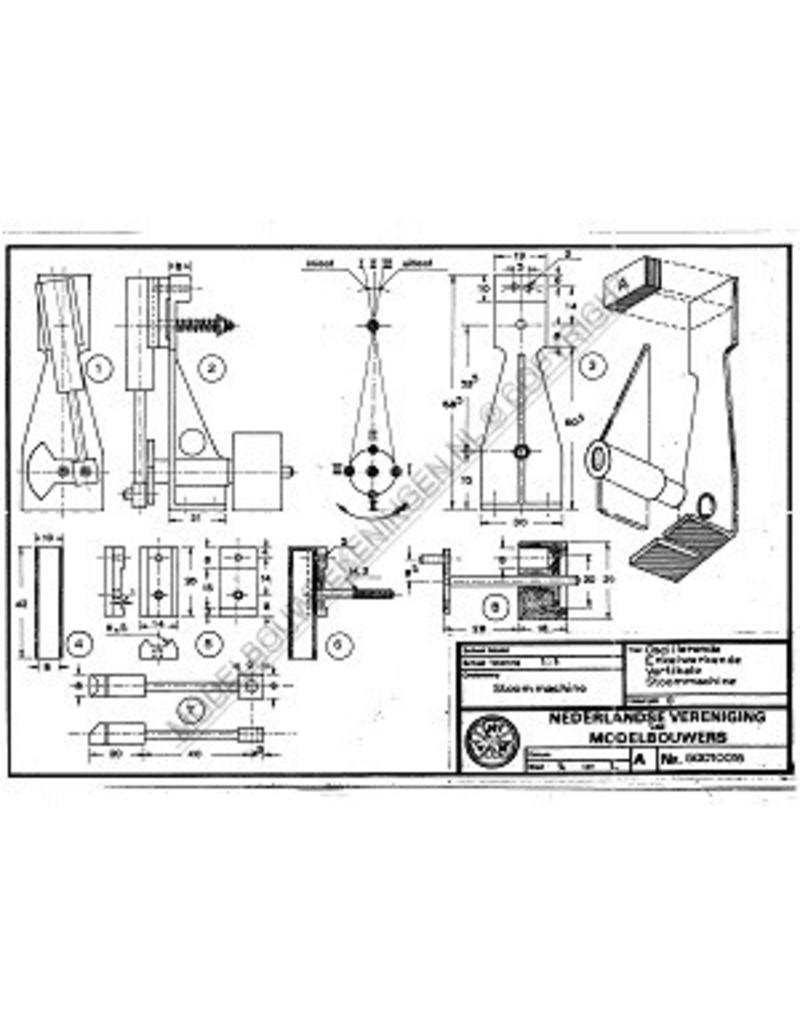

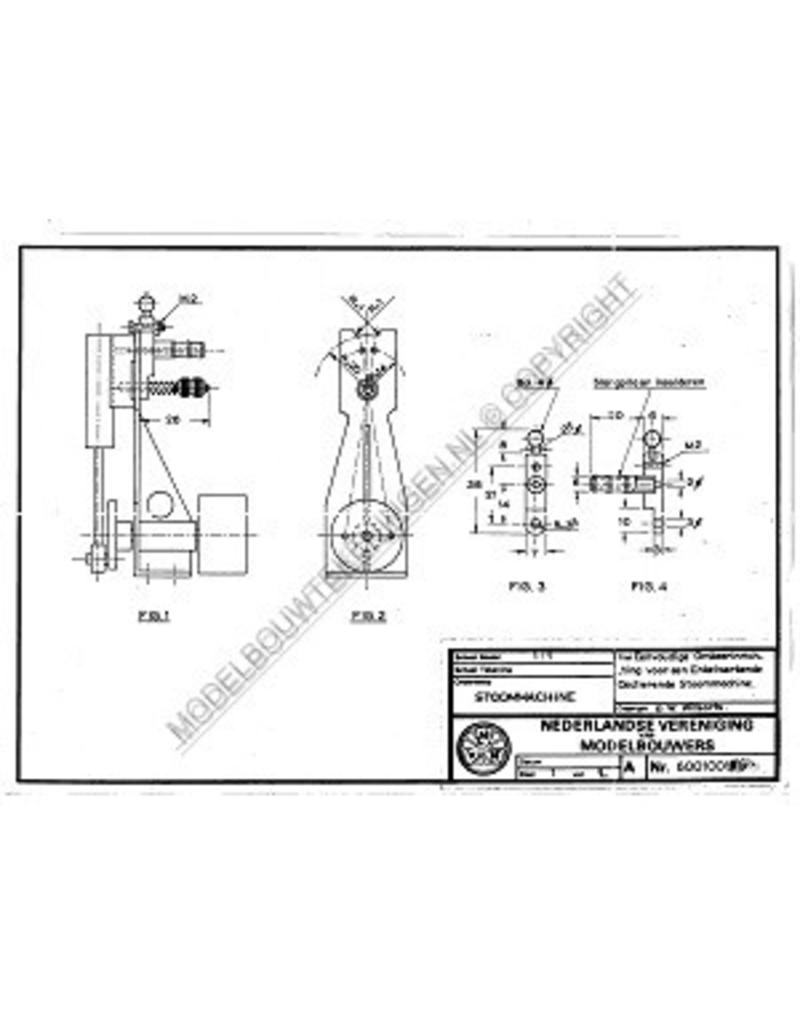

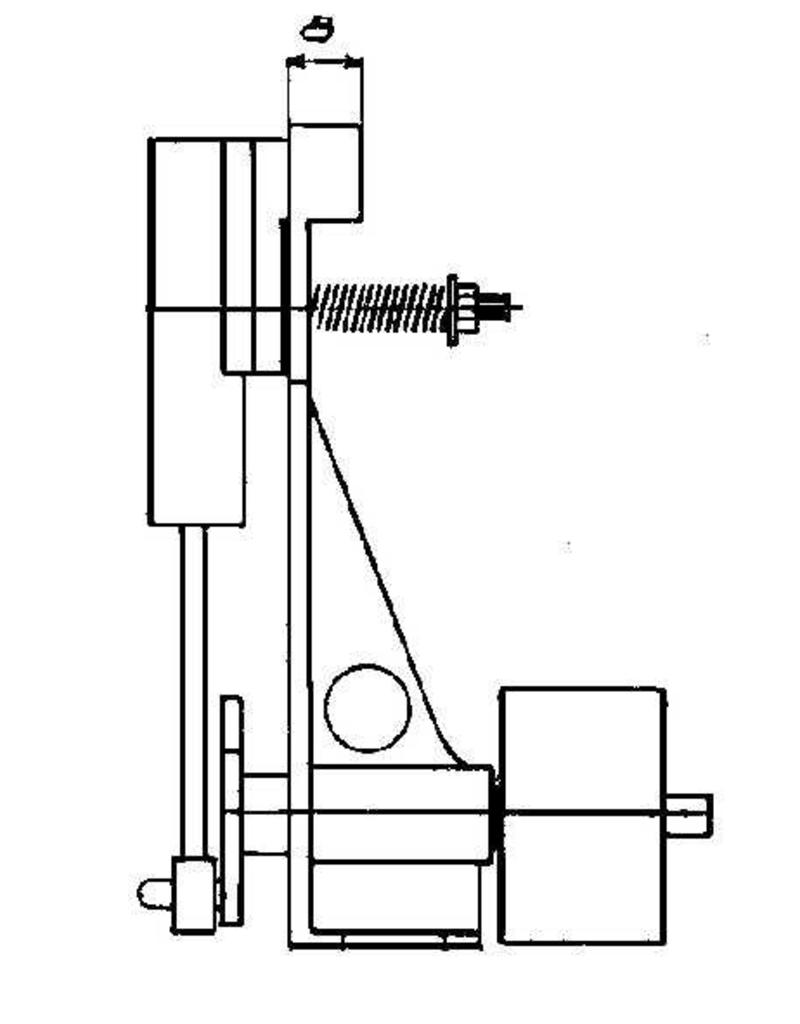

single-acting oscillating vertical steam engine |
|
Quality |
|
|
Difficulty level |
A |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
2 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Special features |
based on original design by A. Schoenmakers (1942) |
|
Remarks |
