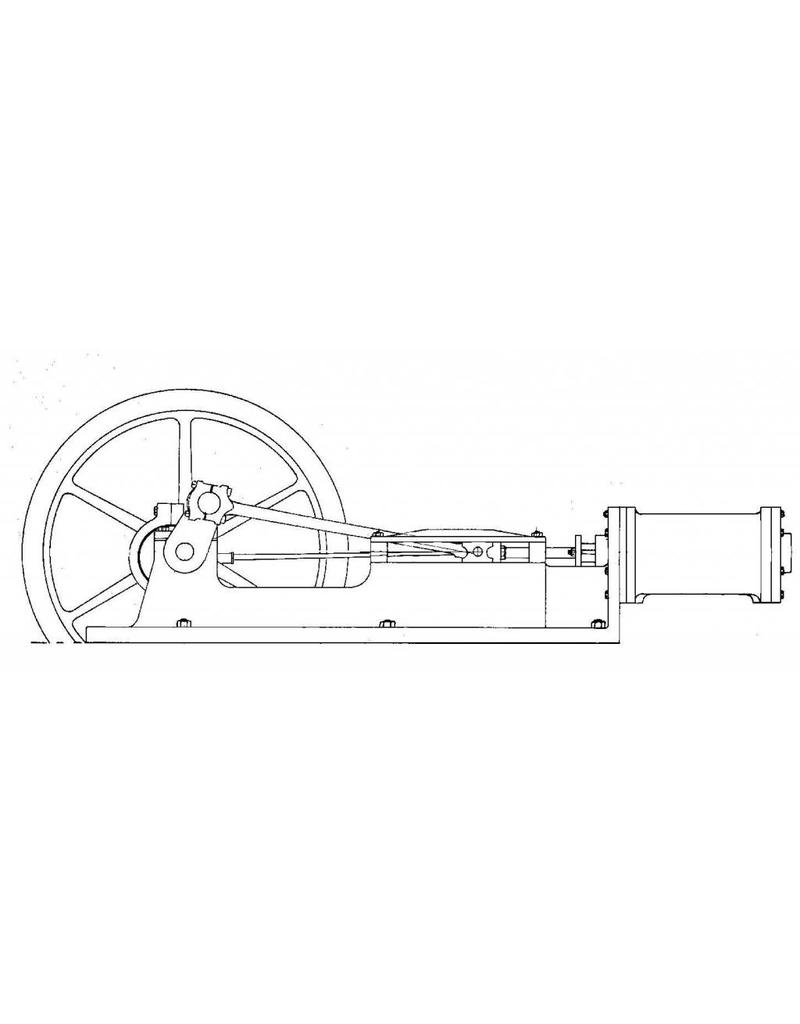

MBT 60.01.005 horizontal steam engine

Drawing number

60.01.005

Author

J.H. Bosman

Description

horizontal steam engine

Quality

Difficulty level

B

Scale

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

1

Number of sheets A4

0

Total number of drawing sheets

2

Number of A4 text sheets

0

Weight in grams

55

Special features

dM 1957/11

Copy of article: 62.01.005 (3 pages)

l x w 350 x 120 mm; bore x stroke 30 x 50 mm; flywheel diam. 150 mm; designed for construction using castings; however, these parts can also be built up

Remarks
