MBT 60.01.004 double-acting oscillating steam engine incl. horiz. boiler

Drawing number

60.01.004

Author

A. Donker

Description

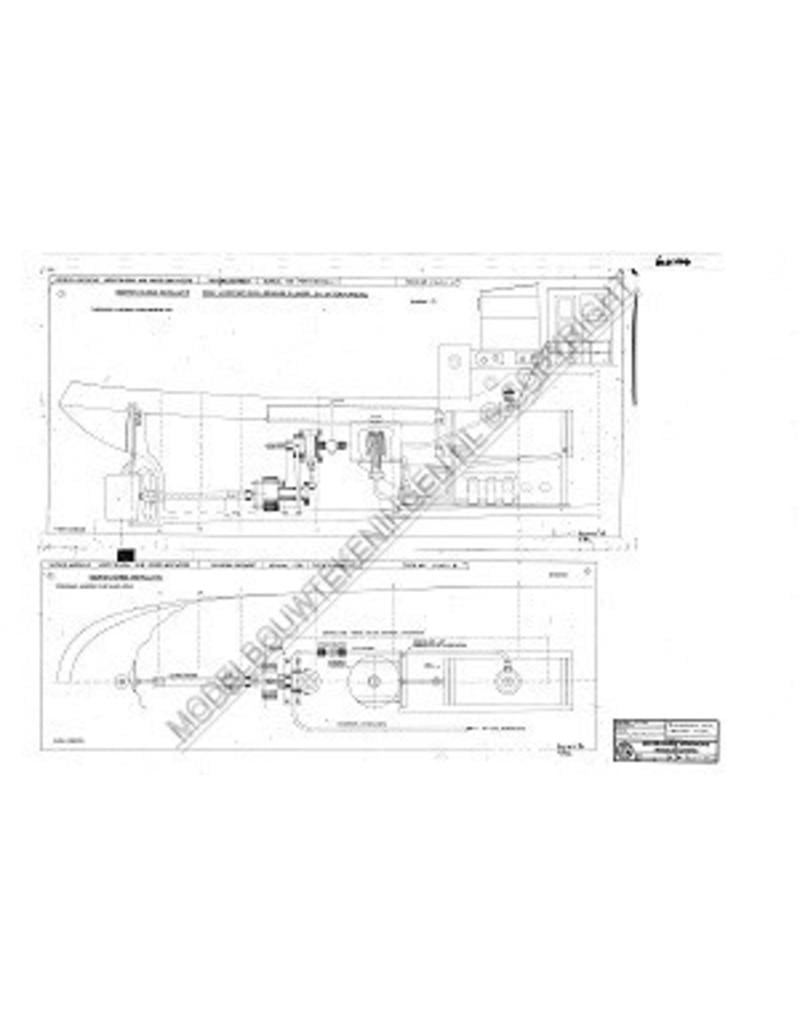

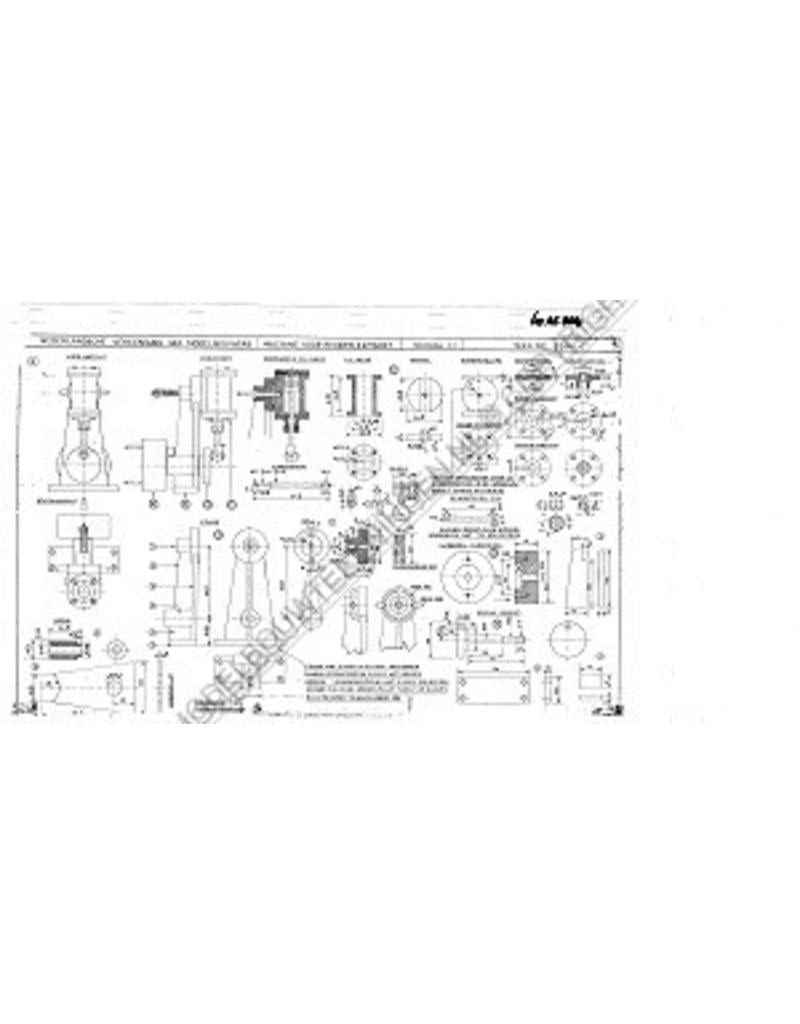

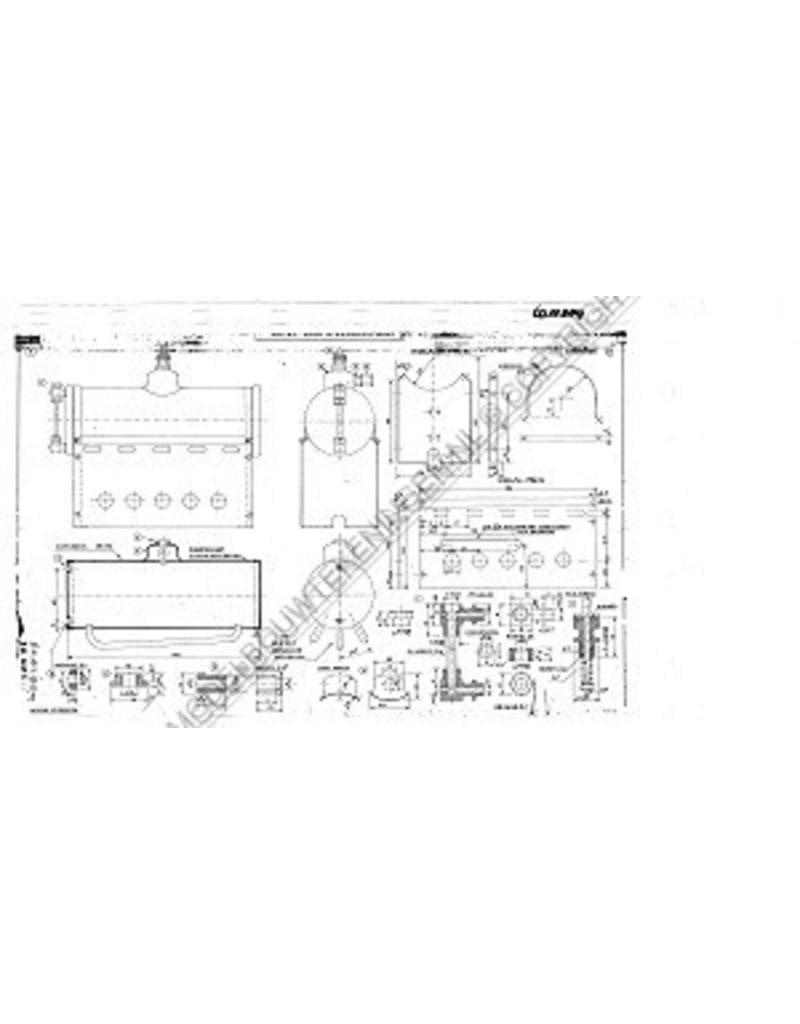

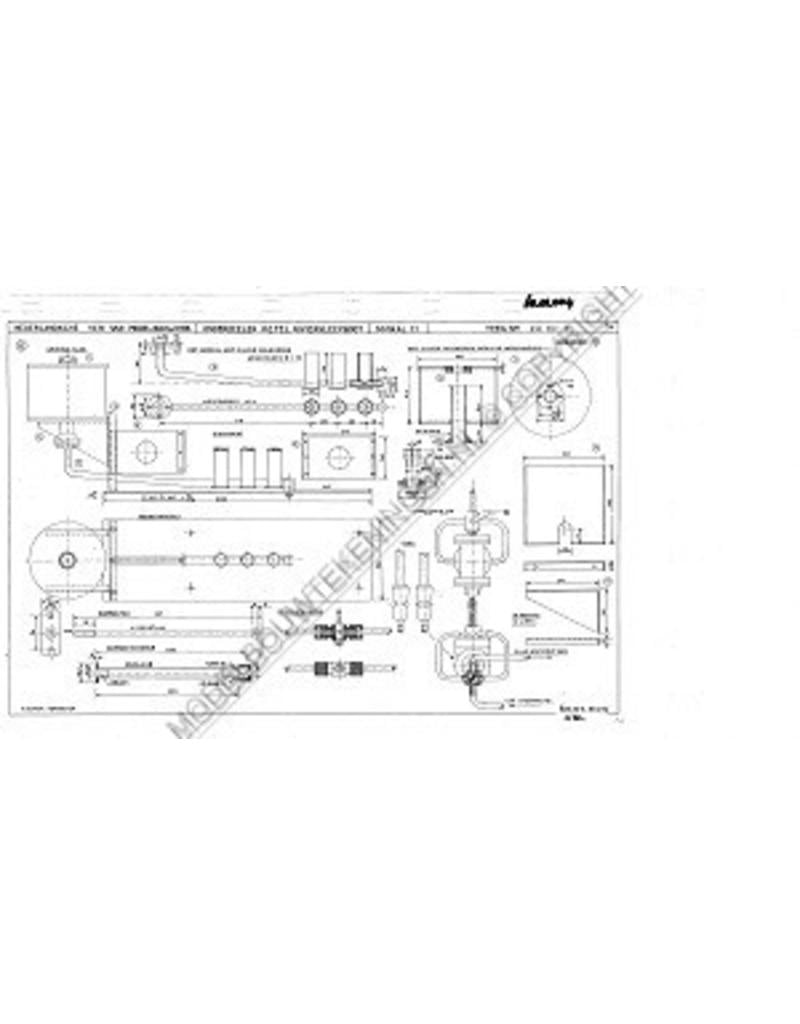

double-acting oscillating steam engine incl. horiz. boiler

Quality

Difficulty level

C

Scale

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

1

Number of A2 sheets

3

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

4

Number of A4 text sheets

0

Weight in grams

105

Special features

dM 1949/3, 1951/4

Copy article: 62.01.004 (3 pages)

spirit-fired; 3 bar; dimensions (incl. boiler) l x w x h 350 x 100 x 140; 1 cyl. Bore x stroke 12.5 x 16 mm; flywheel diam. 40 mm

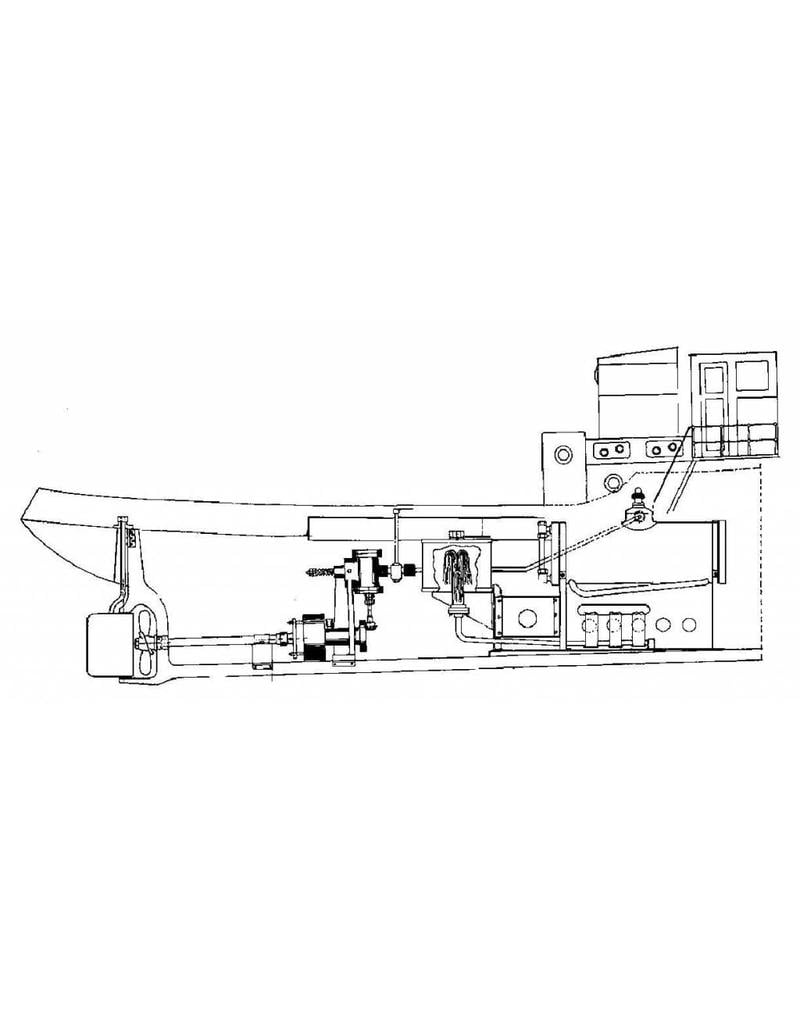

a marine installation, suitable for drawing 10.14.001

Remarks
