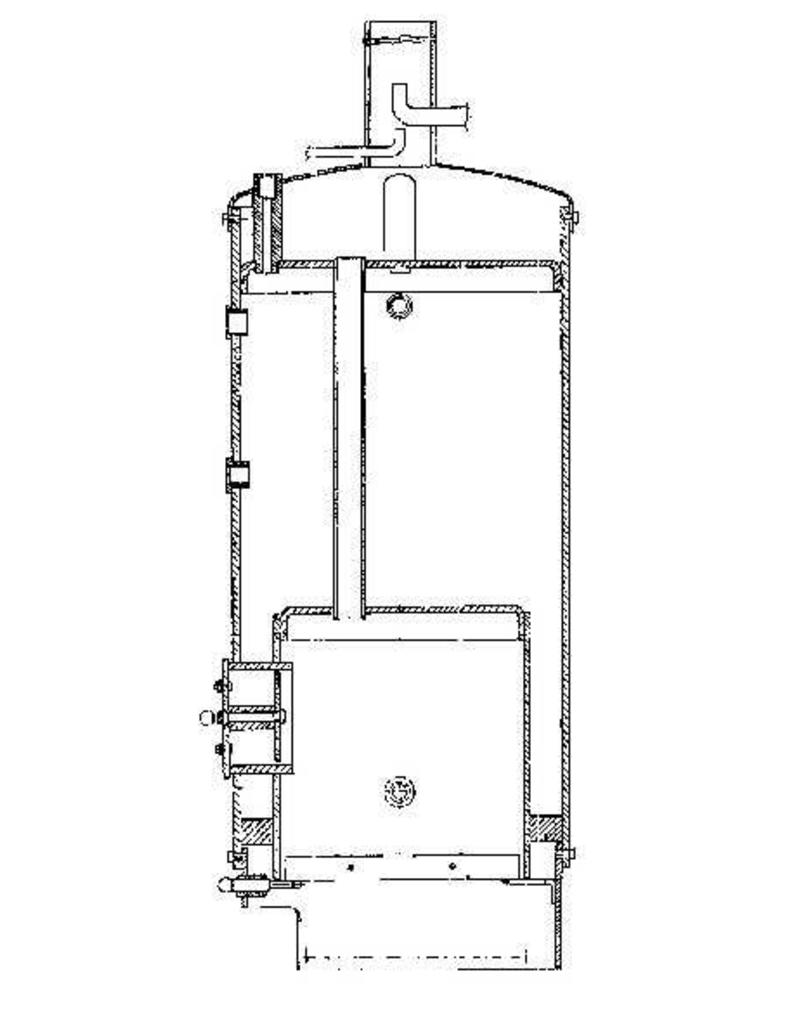

MBT 60.00.008 Vulcanus II, boiler for pile driver

Drawing number

60.00.008

Author

J.A. Buijs

Description

Vulcanus II, boiler for pile driver

Quality

Difficulty level

C

Scale

1

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

1

Number of A3 sheets

0

Number of A4 sheets

4

Total number of drawing sheets

5

Number of A4 text sheets

0

Weight in grams

65

Details

coal-fired; 6 bar; height …; boiler diam. ….

this boiler is intended for the pile driver according to drawings 60.01.043, 60.06.002 and 60.06.003

Remarks

fill in dimensions
