| Article number: | 60.00.001 |
Specifications :
|
Drawing number |
60.00.001 |
|
Author |
H.A. Hengeveld |
|
Description |

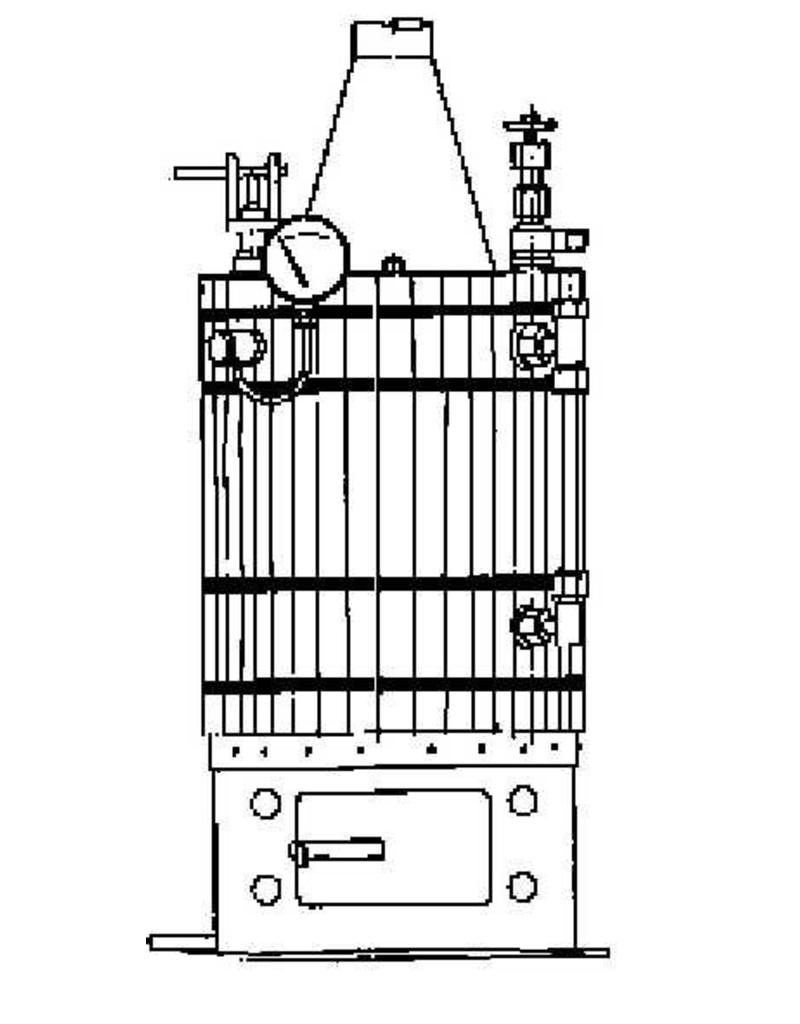

vertical steam boiler |
|
Quality |
|
|
Difficulty level |
B |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
4 |
|
Number of sheets A4 |
4 |
|
Total number of drawing sheets |
8 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Special features |
dM 1974/6 |
|
Remarks |
