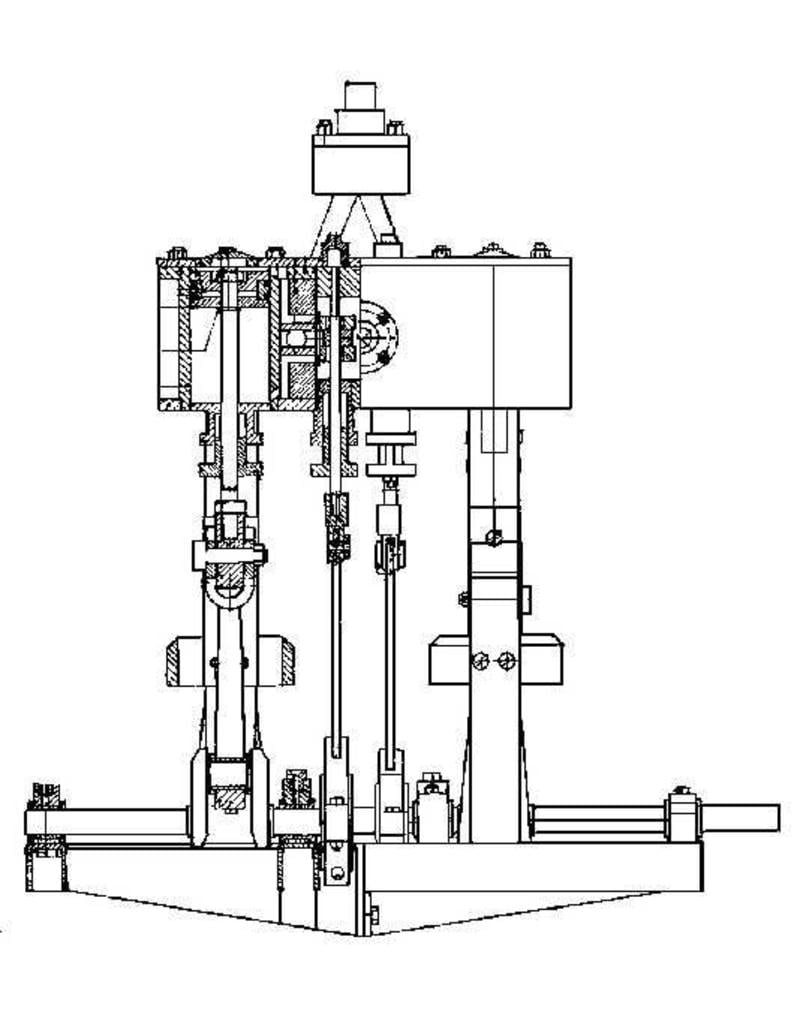

MBT 60.01.043 2-cylinder vertical steam engine "Paula"

Drawing number

60.01.043

Author

J.A. Buijs

Description

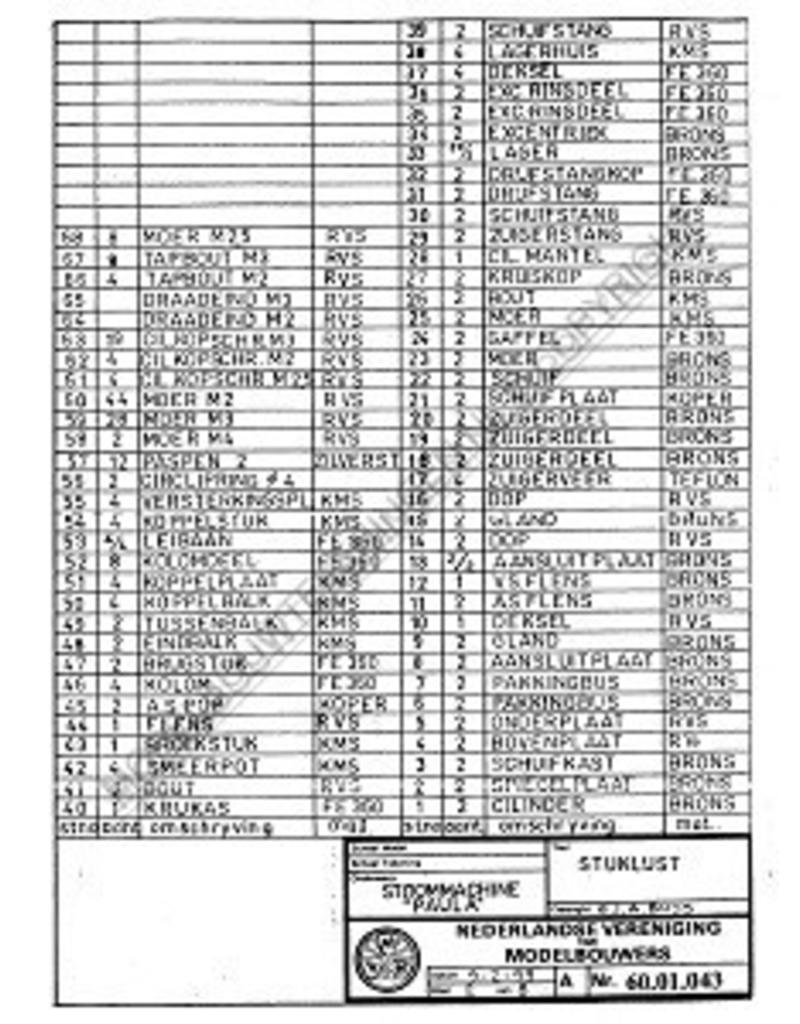

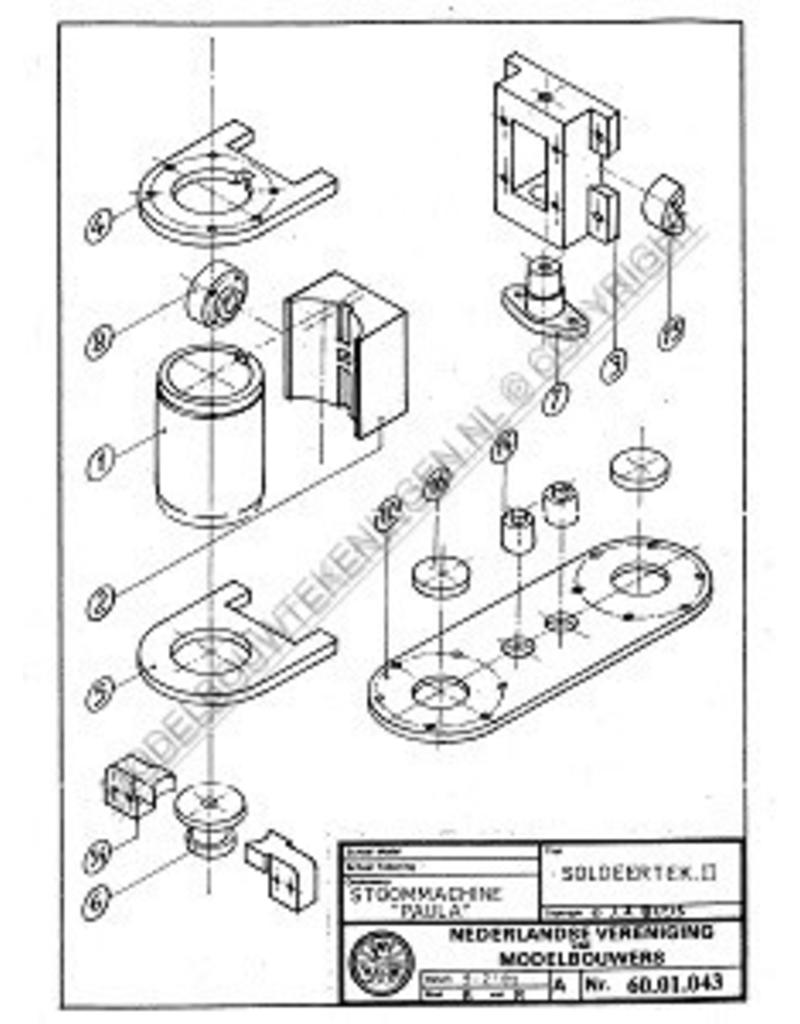

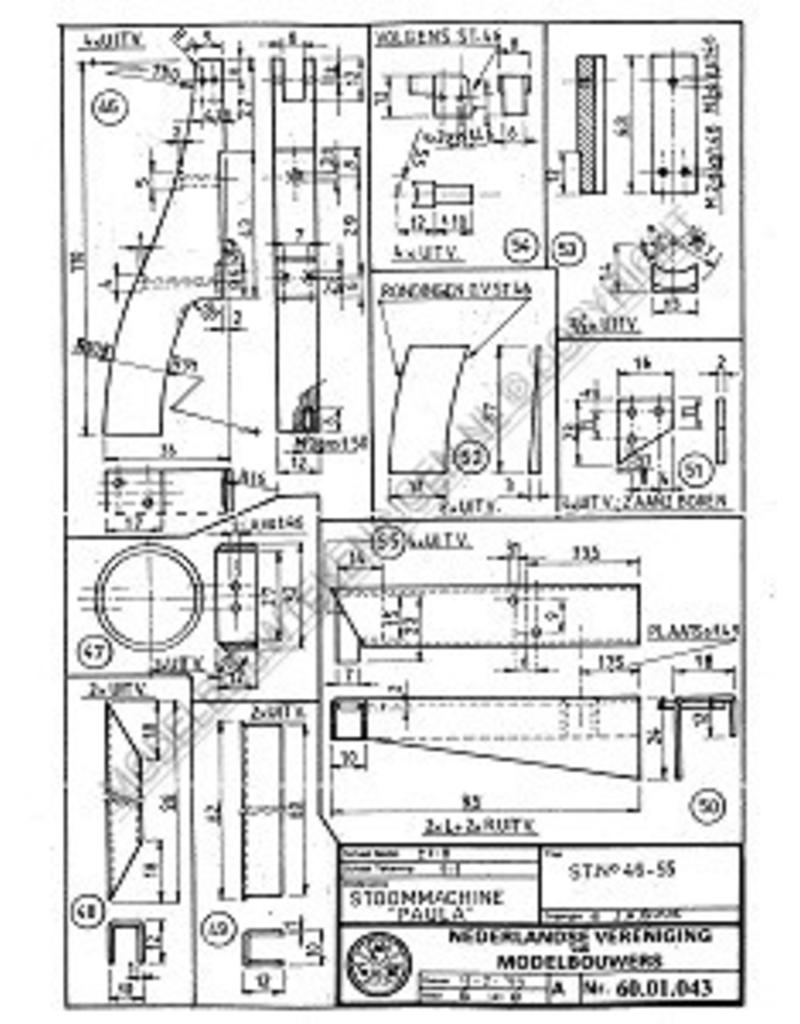

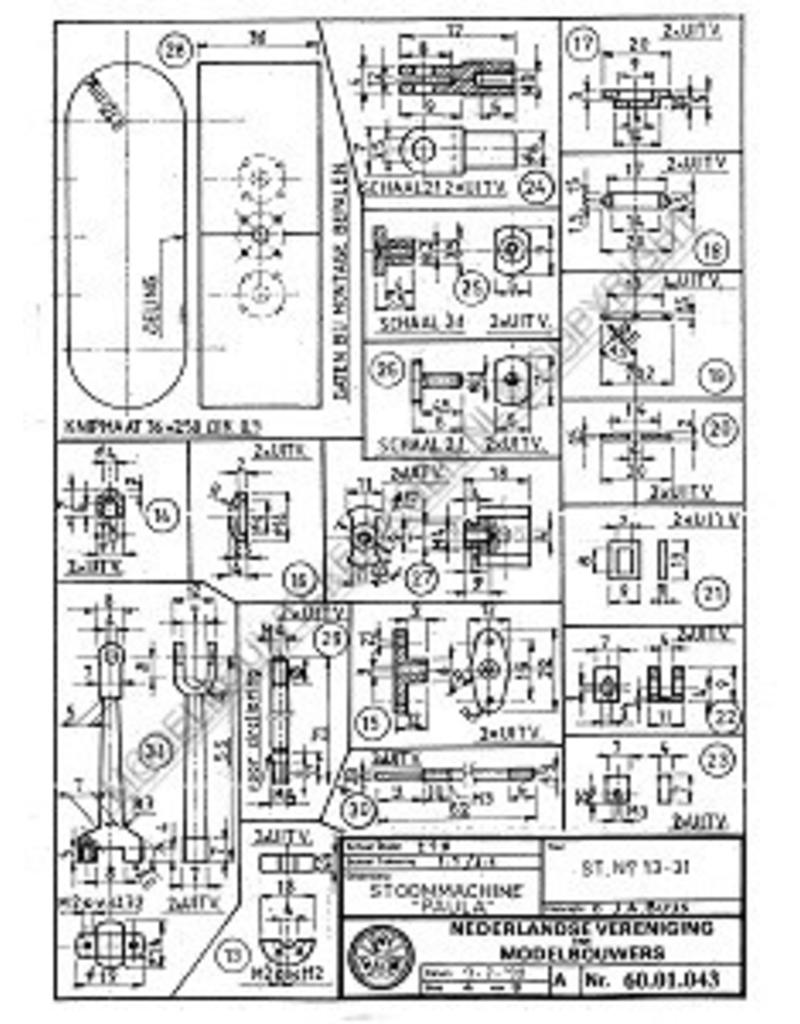

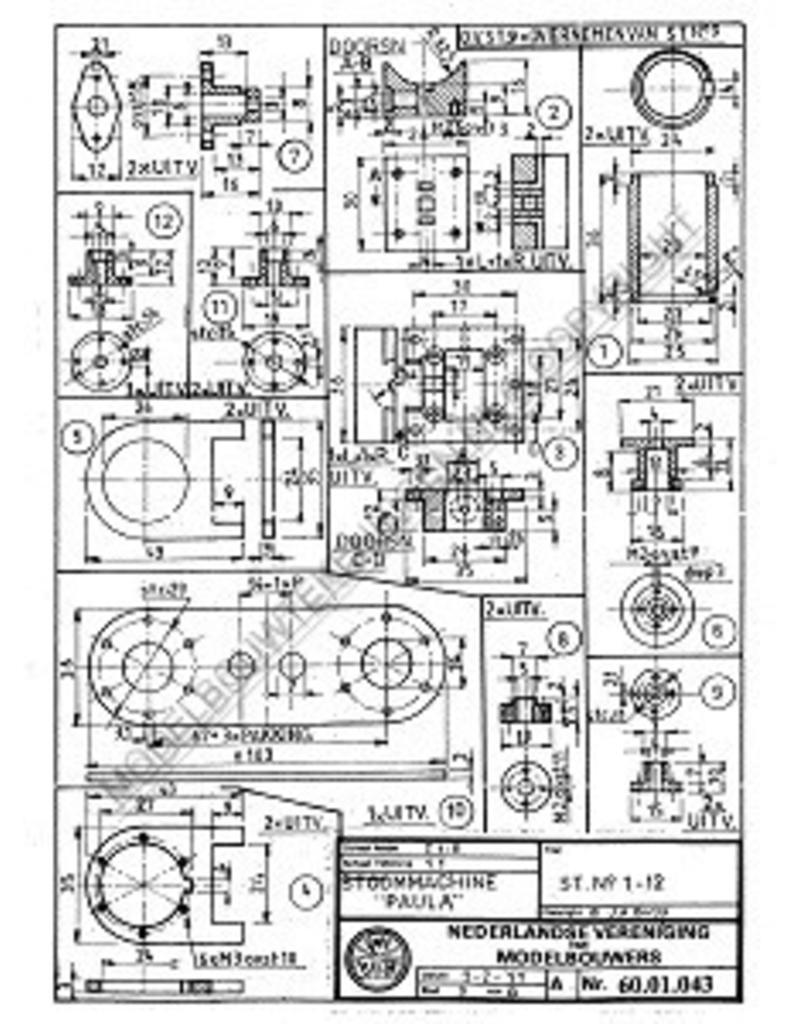

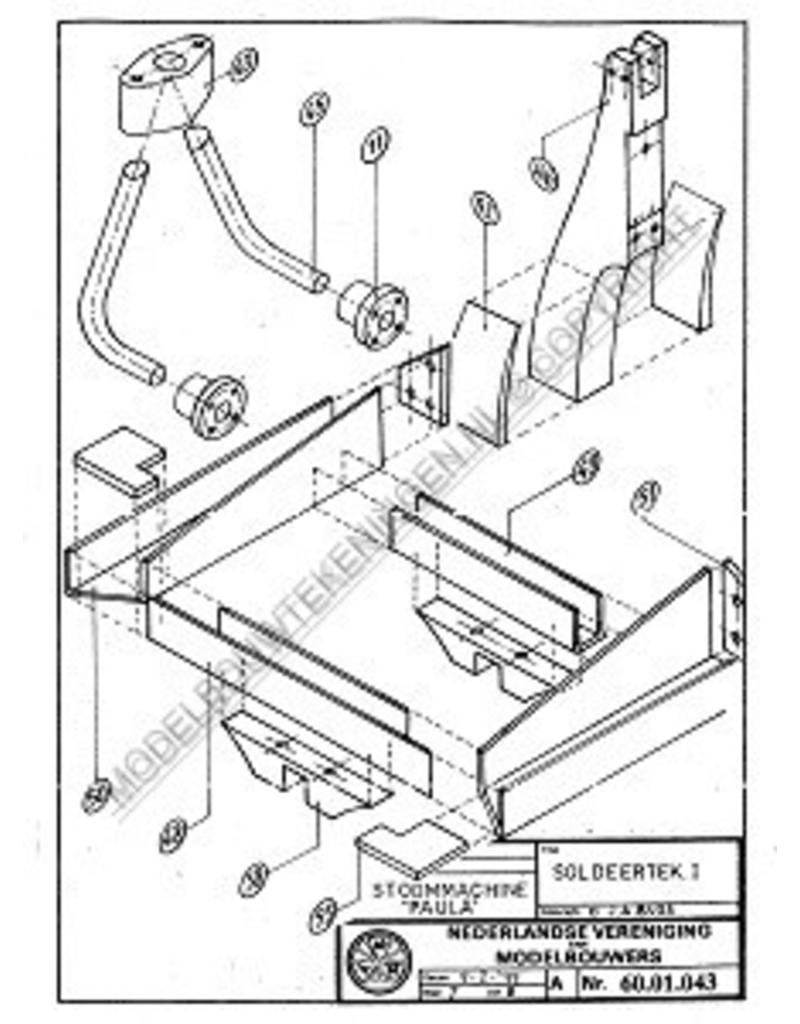

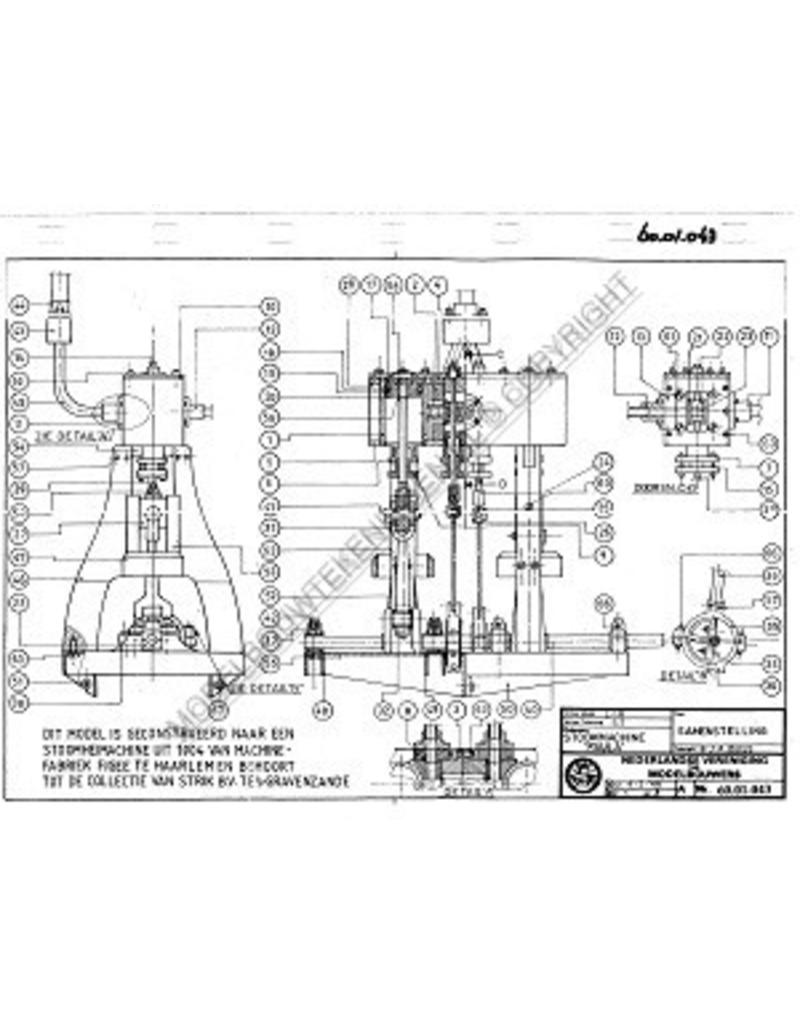

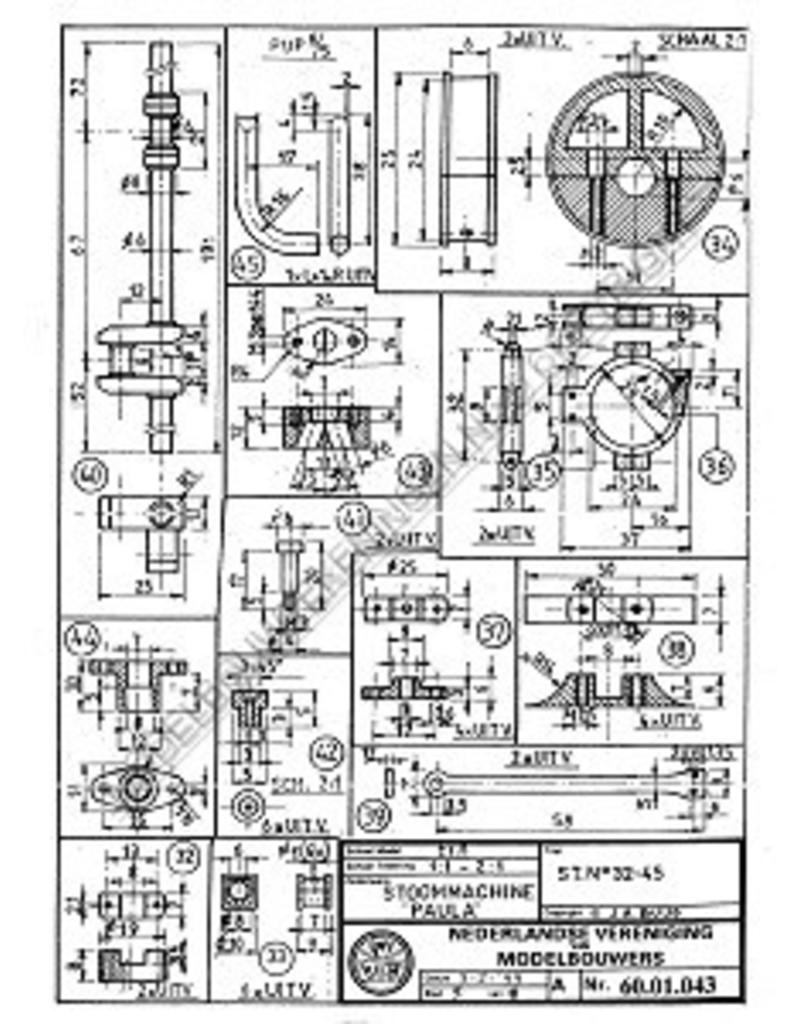

2-cylinder vertical steam engine "Paula"

Quality

Difficulty level

C

Scale

8

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

1

Number of A4 sheets

7

Total number of drawing sheets

8

Number of A4 text sheets

0

Weight in grams

70

Details

dM 1999/9,10

Copy of article: 62.01.043 (2 pp)

bore x stroke 24x20 mm

This machine belongs to a pile driver; see also 60.06.002 and 60.06.003 and steam boiler 60.00.008

Remarks

booklet
