| Article number: | 60.00.009 |
Specifications :
|
Drawing number |
60.00.009 |
|
Author |
J.R. Holman |
|
Description |

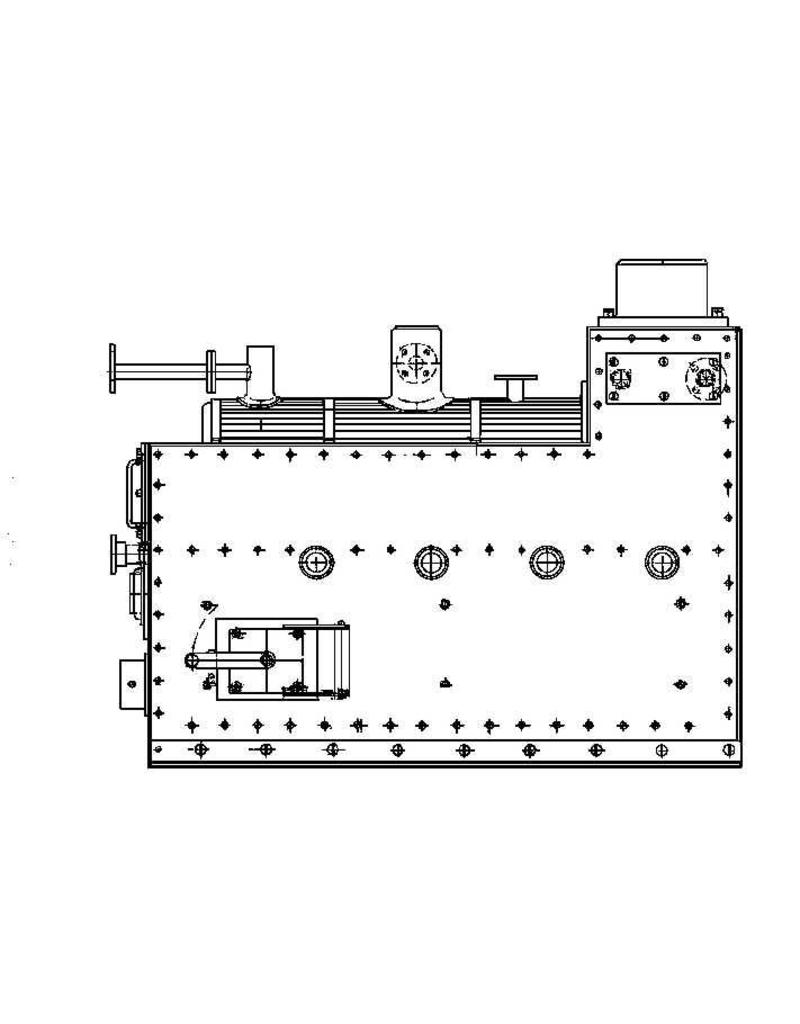

Fire-tube boiler |
|
Quality |
fully detailed drawing with all parts |
|
Difficulty level |
D |
|
Scale |
n/a |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
8 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
8 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
340 |
|
Special features |
boiler designed for 3 Bar working pressure |
|
Notes |
