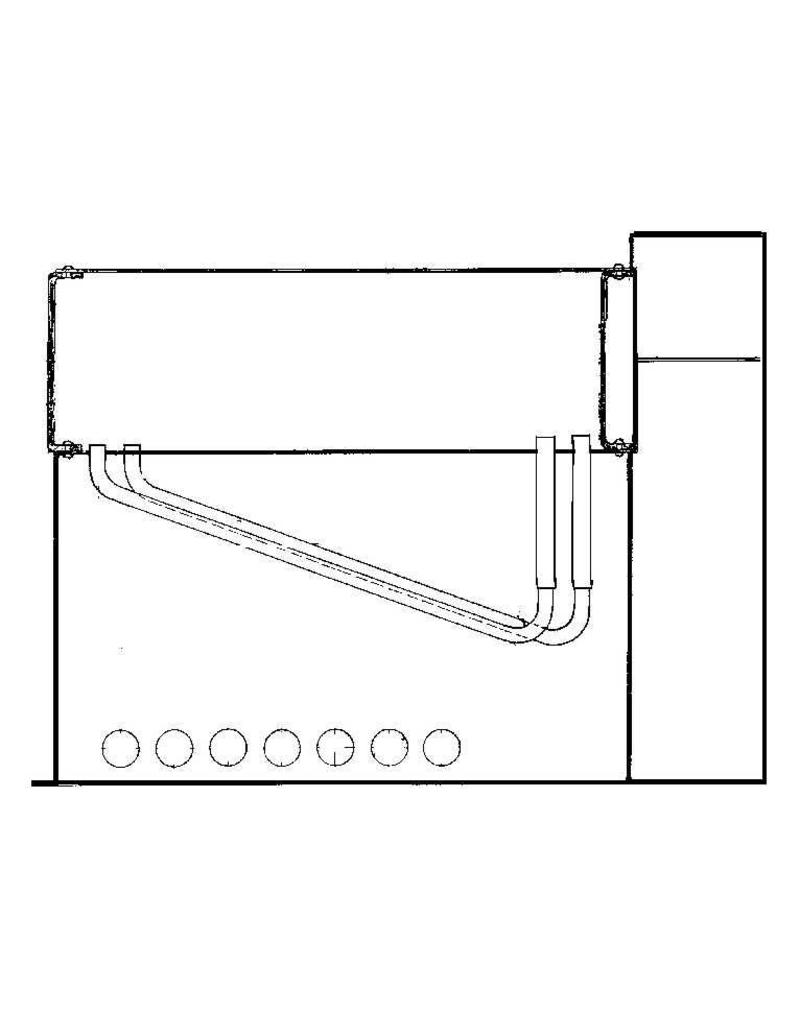

MBT 60.00.003 horizontal water-tube boiler

Drawing number

60.00.003

Description

horizontal water-tube boiler

Quality

the drawing does not include fittings and burner

Difficulty level

B

Scale

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

1

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

35

Details

dM 1939/5, 196‰Û¡ÌÝ_

Copy article: 62.00.003 (3 pages)

spirit or gas burner; 3 bar; height 305 mm; base plate 440 x 150 mm; boiler diam. 100/104 mm

Remarks

J.B. Wildervanck

possibly add 2nd sheet?

Check 2nd article by Oegema
