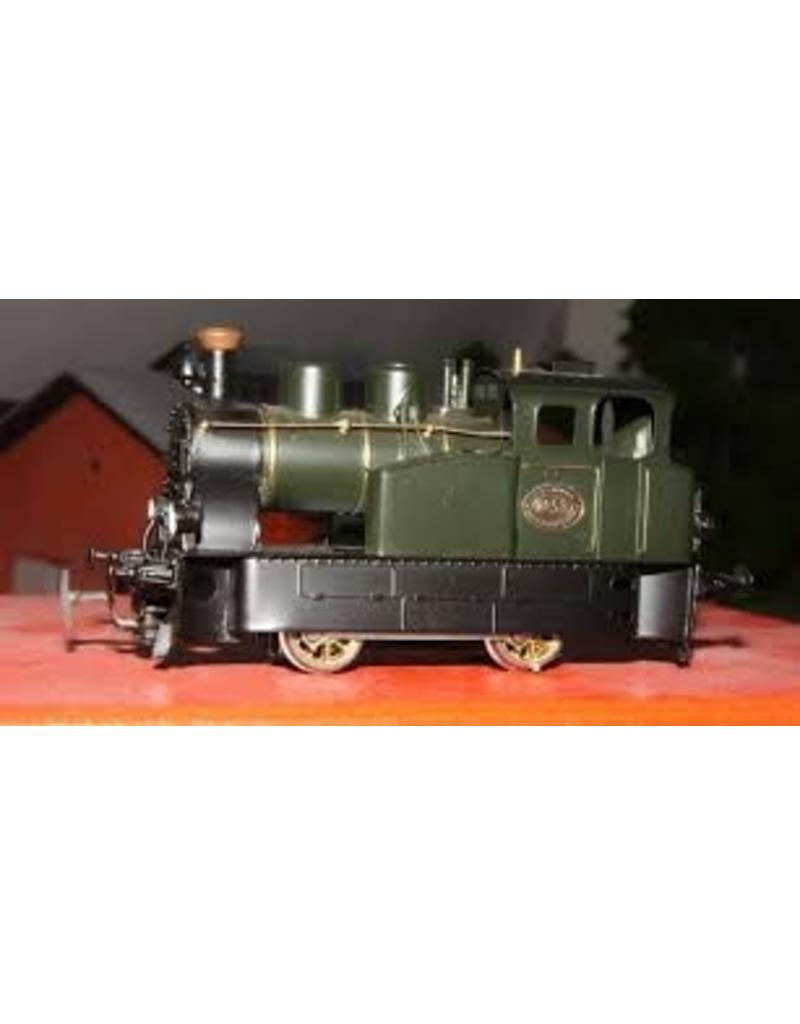

MBT 20.20.010 NTM steam tram locomotive (Maffei, 1914); for gauge 1 (45 mm)

Drawing number

20.20.010

Author

A.M. Oudes

Description

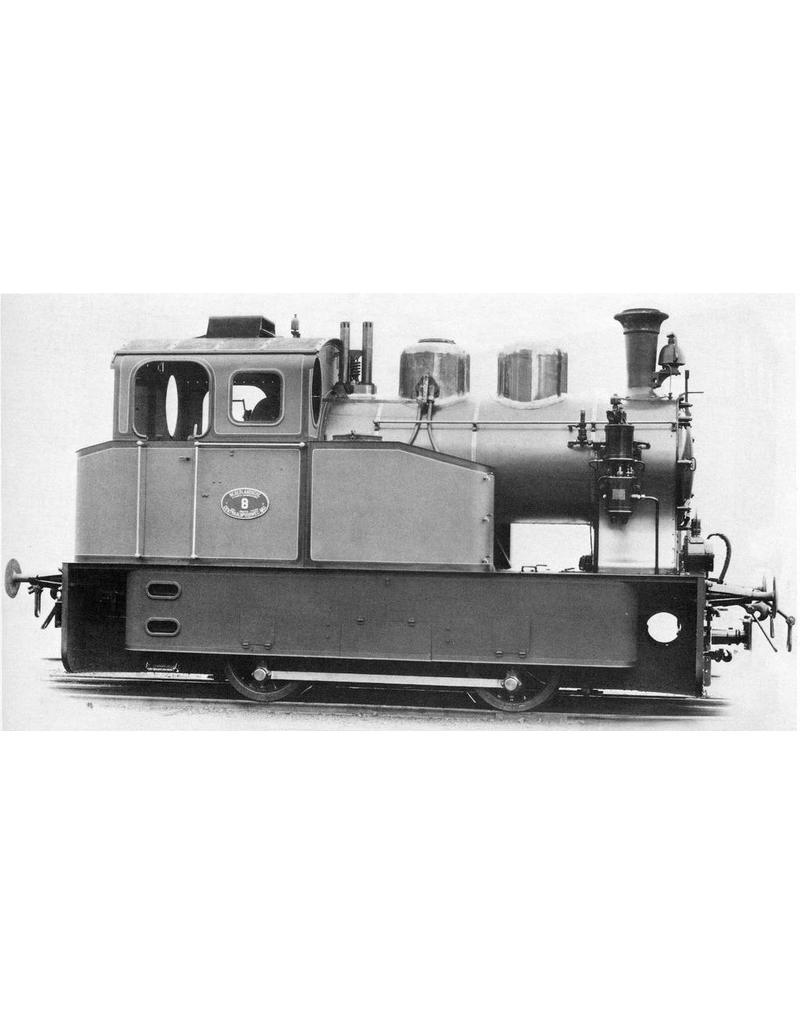

NTM steam tram locomotive (Maffei, 1914); for gauge 1 (45 mm)

Quality

detailed construction drawing, partly 2:1 for machine and frame; for the casing an extensive dimensioned sketch with dimensions 1:87 and prototype

Difficulty level

B

Scale

1 : 32

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

5

Number of sheets A4

1

Total number of drawing sheets

6

Number of A4 text sheets

0

Weight in grams

80

Special features

dM 1976/2,3,5

Copy article: 22.20.010 (5 pages)

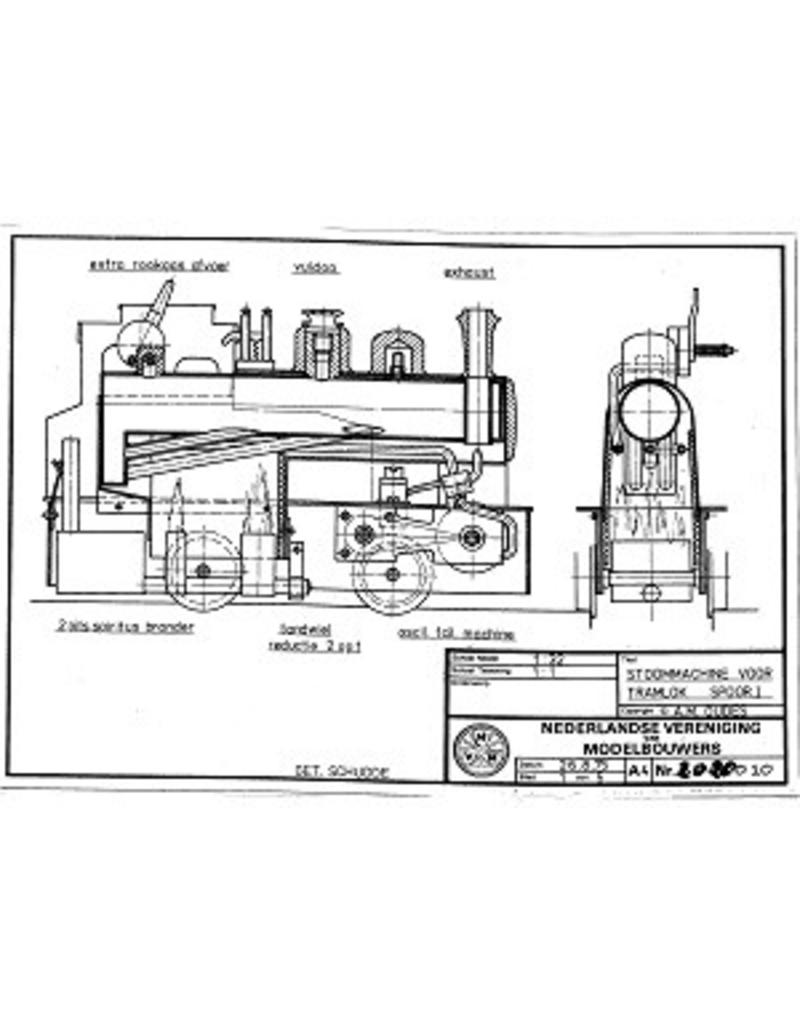

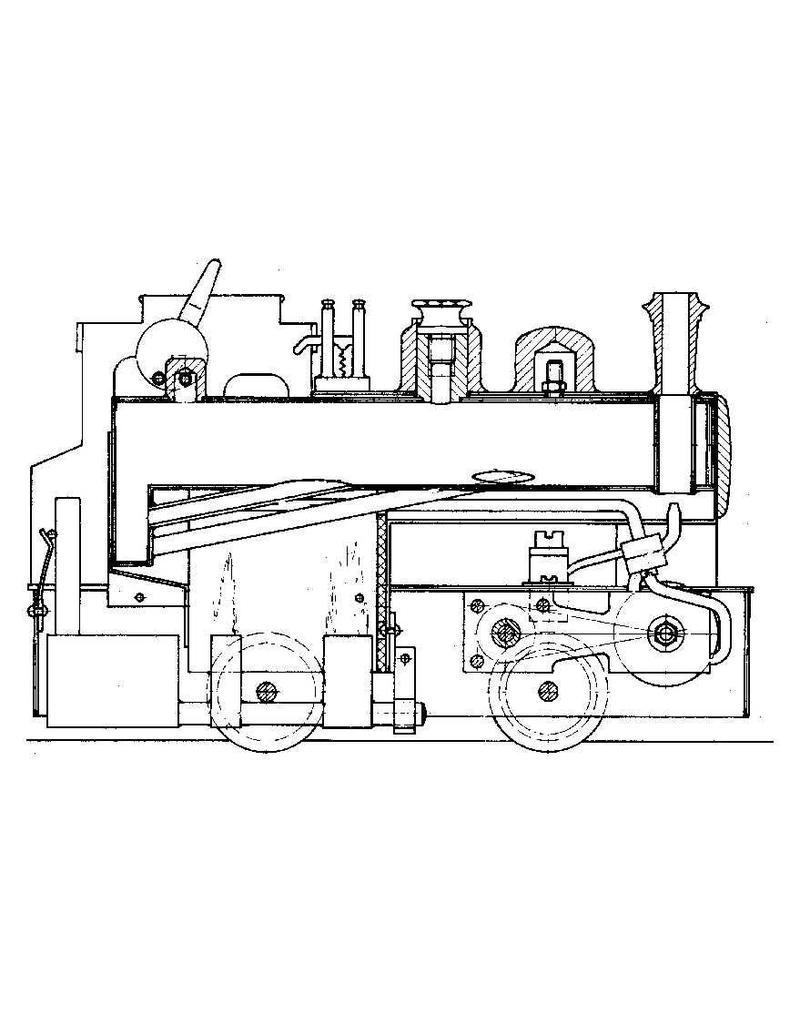

With oscillating cylinder

Gauge 1 (45 mm); spirit-fired; 3 bar; engine bore x stroke 16 x 14 m

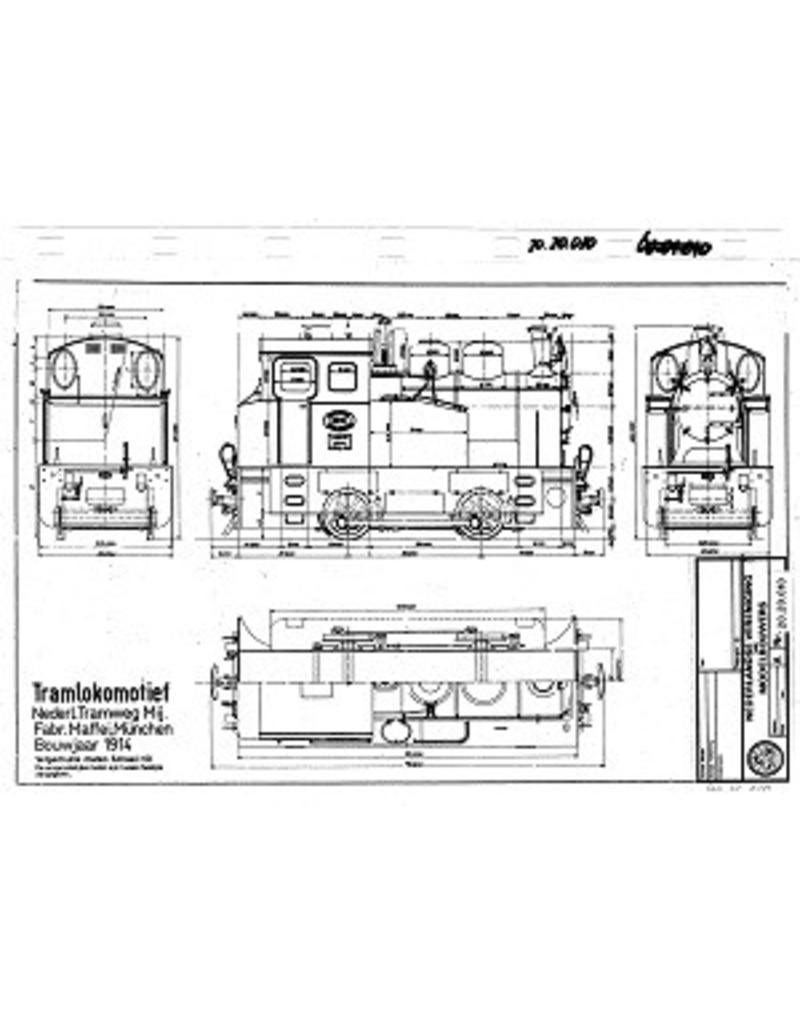

The drawing for the casing only shows the views

Remarks

was 60.01.010
