MBT 20.20.003 carriage no.1 of the Gooische Steam Tram for track 1

Drawing number

20.20.003

Author

A.M. Oudes

Description

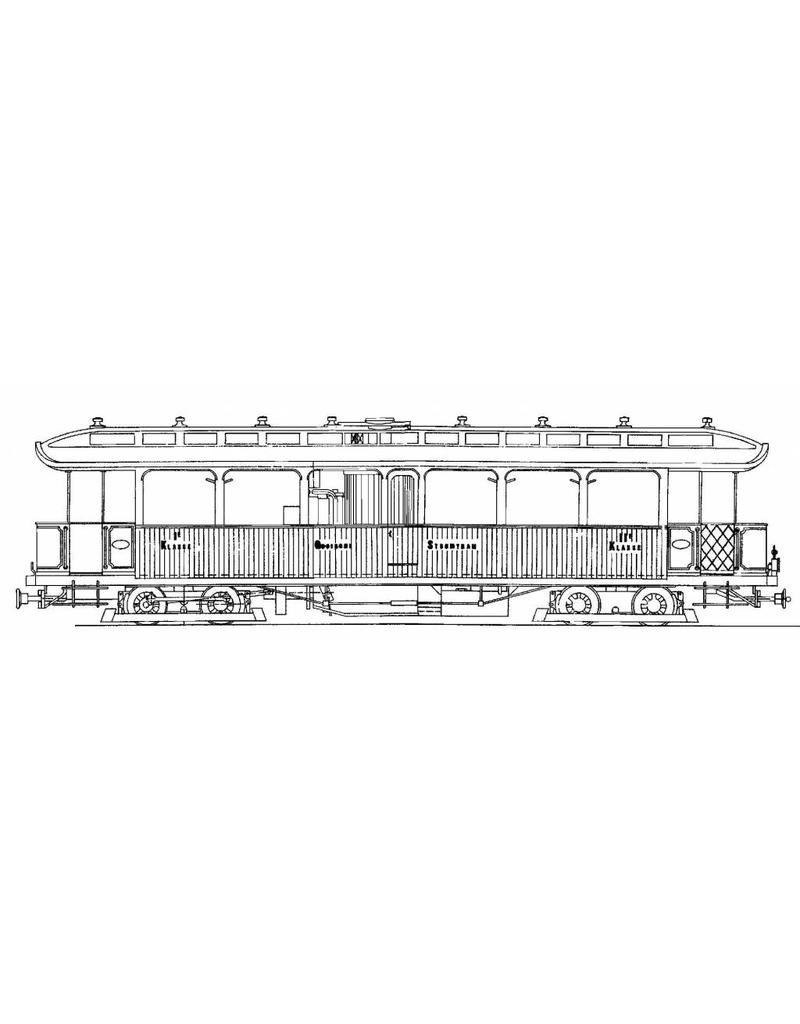

carriage no.1 of the Gooische Steam Tram for track 1

Quality

detailed construction drawing

Difficulty level

B

Scale

1 : 32

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

3

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

3

Number of A4 text sheets

0

Weight in grams

145

Special features

m.mv. H. te Paske

dM 1980/9

Copy article:22.20.003 (10 pages)

Spirit-fired; 3 bar; osc. machine; cyl. dia 8 mm, stroke 14 mm; driving wheels diam. 28 mm

Remarks

was 20.72.001
