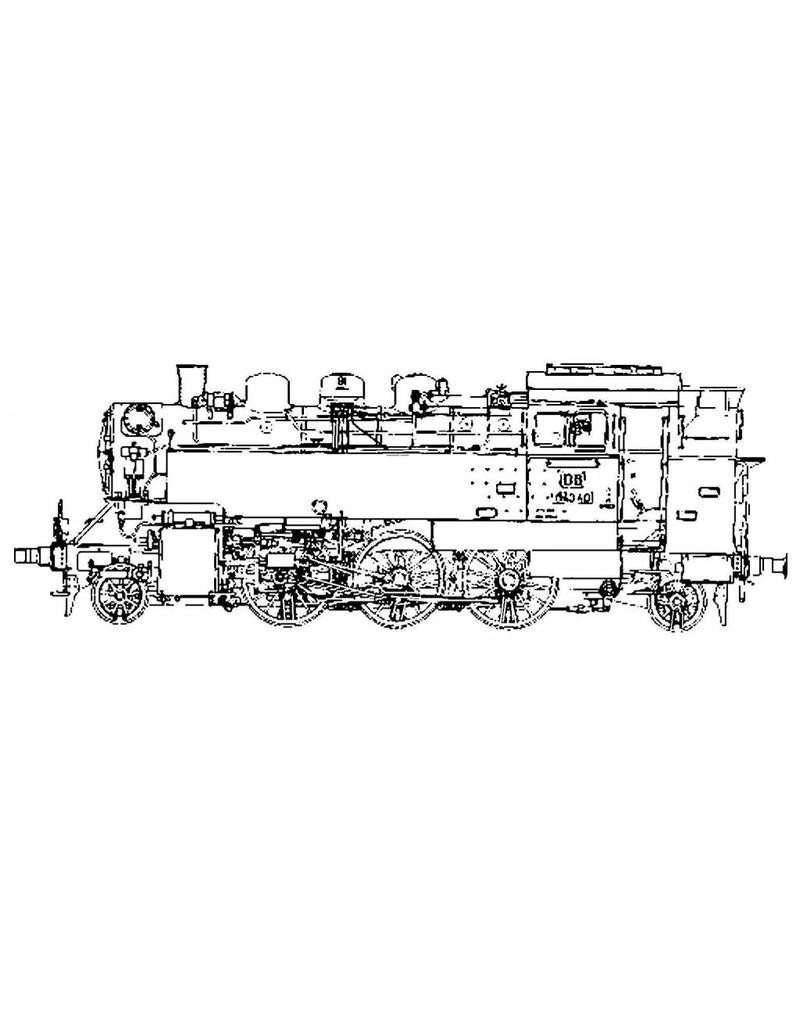

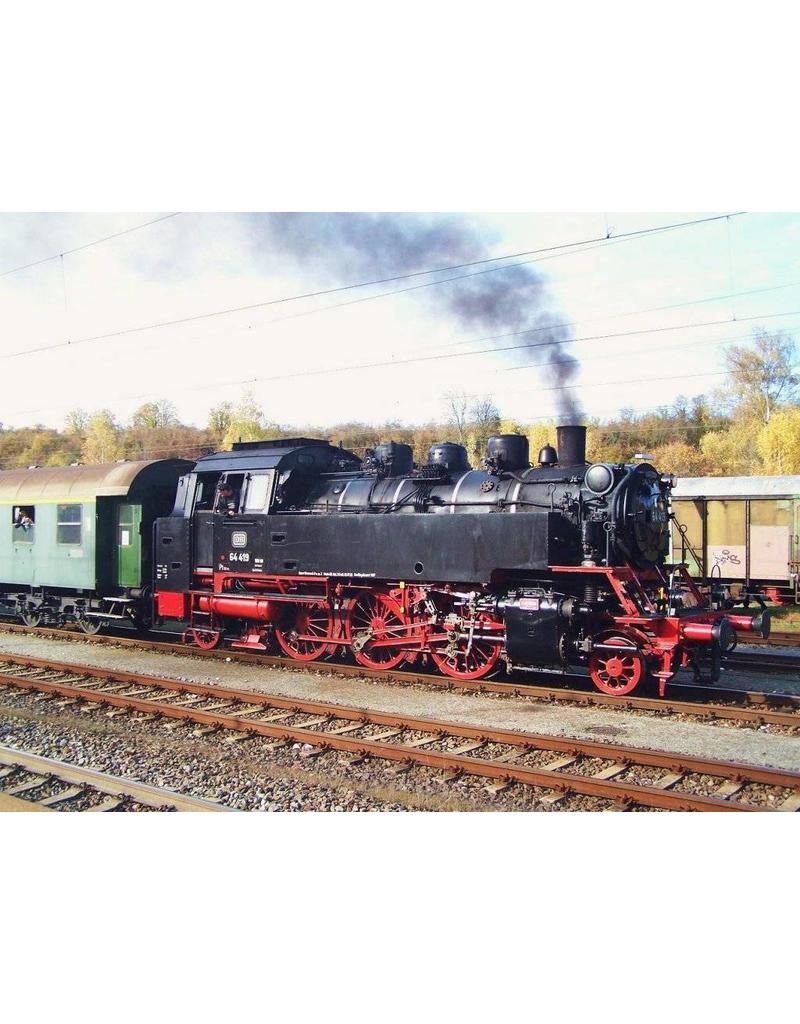

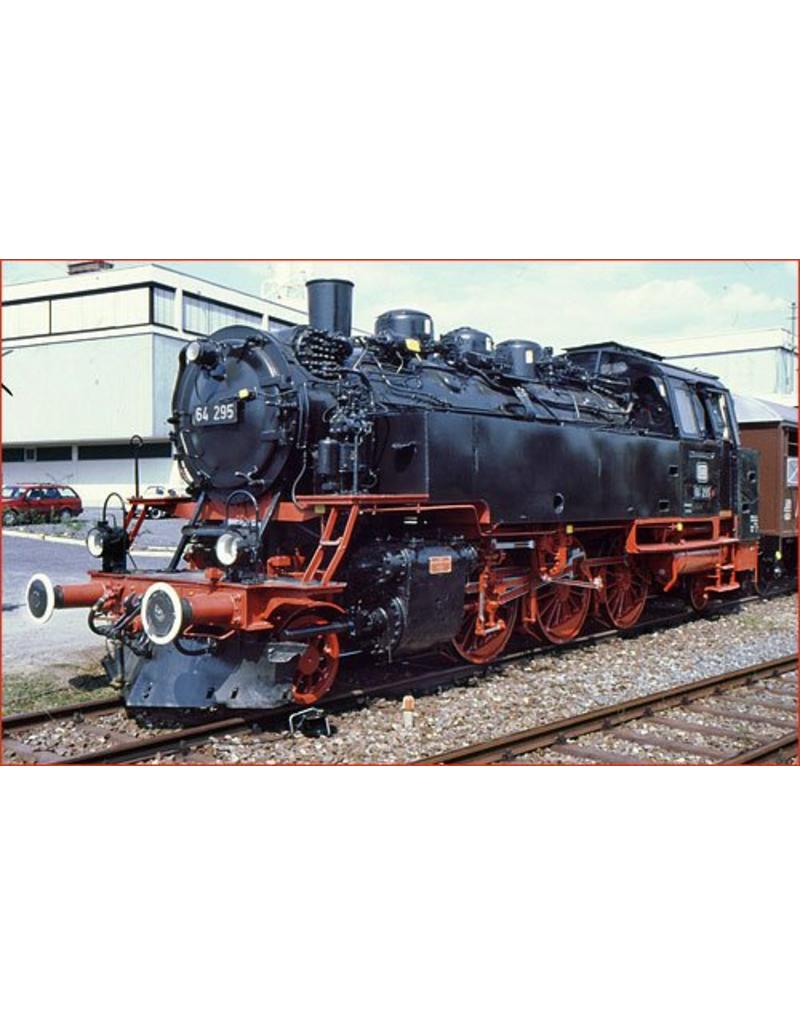

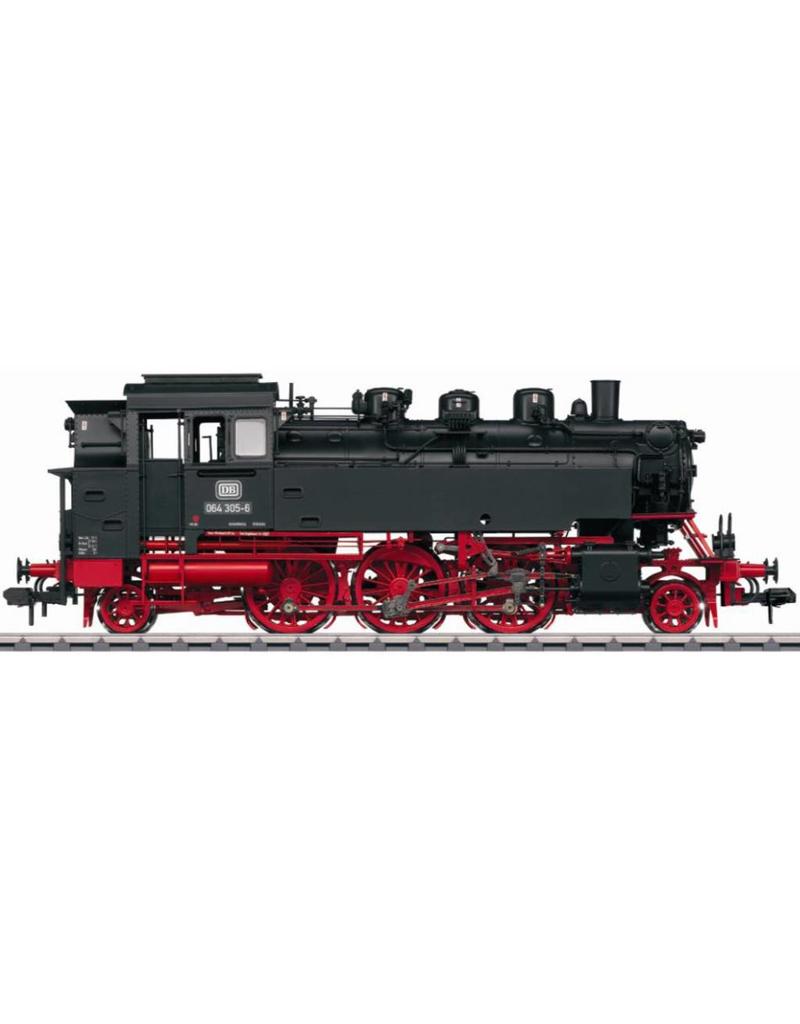

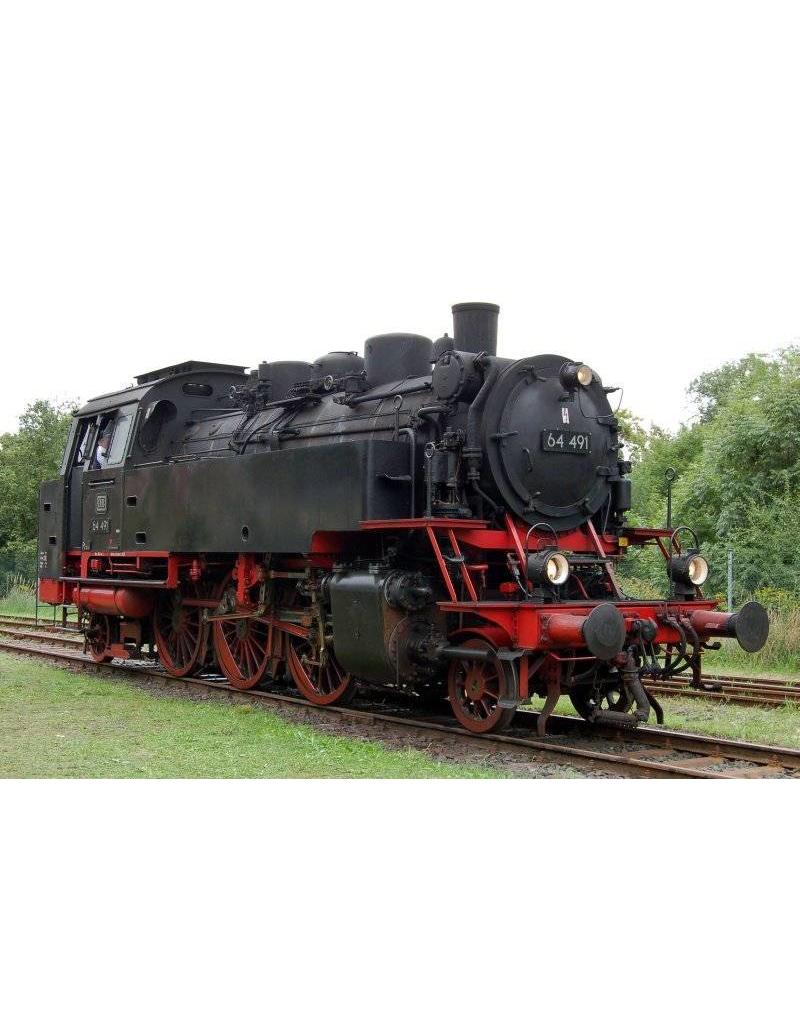

MBT 20.20.009 CD Steam Locomotive Baureihe 64; for 7.25" gauge; Autocad drawings, illustrations and description

Drawing number

20.20.009

Author

Th.A. de Zwart

Description

CD Steam Locomotive Baureihe 64; for 7.25" gauge; Autocad drawings, illustrations and description

Quality

detailed construction drawings in AutoCad format

Difficulty level

D

Scale

1 : 7.5 (approx)

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

0

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

0

Number of A4 text sheets

0

Weight in grams

0

Special features

dM 2004/10 - 2009/1

Copy of description: included on the CD

The drawing set does not contain a general plan

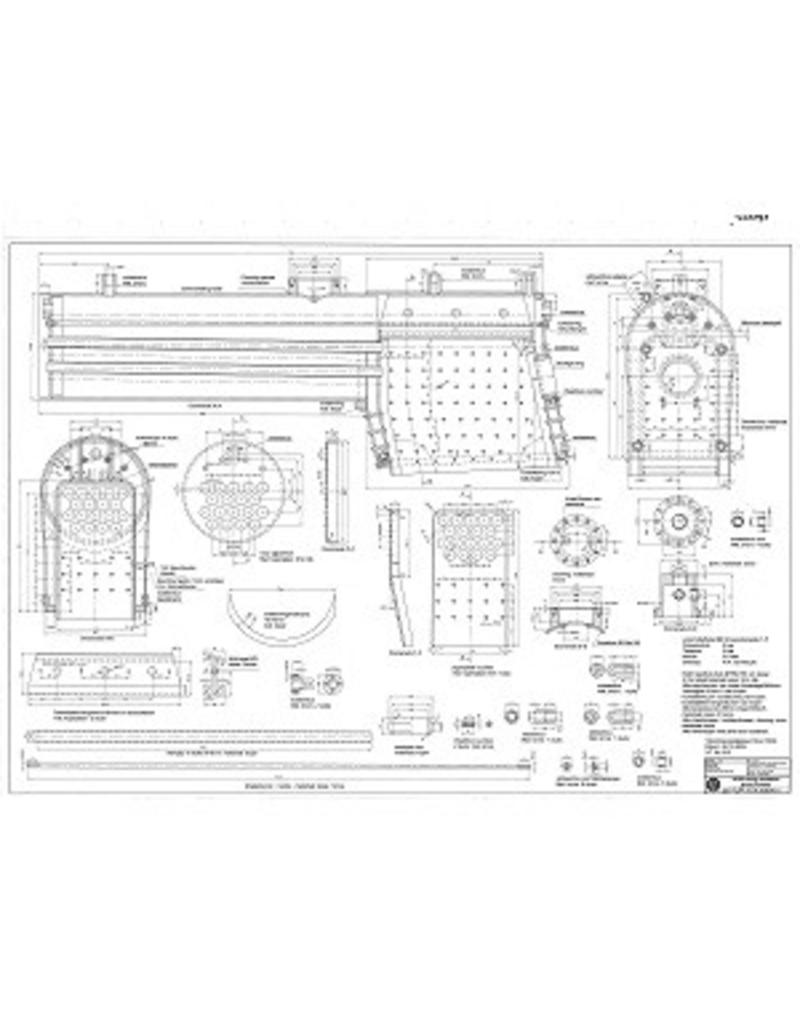

This drawing set (in .pdf format) contains a boiler design in stainless steel (RVS). This is NOT a design approved by the NVM Safety Committee. The Safety Committee is of the opinion that, given the specific properties of stainless steel, boilers made of this material must be professionally built and inspected.

Notes
