| Article number: | 20.20.004 |
Specifications :
|
Drawing number |
20.20.004 |
|
Author |
J.C.W. Steffers |
|
Description |

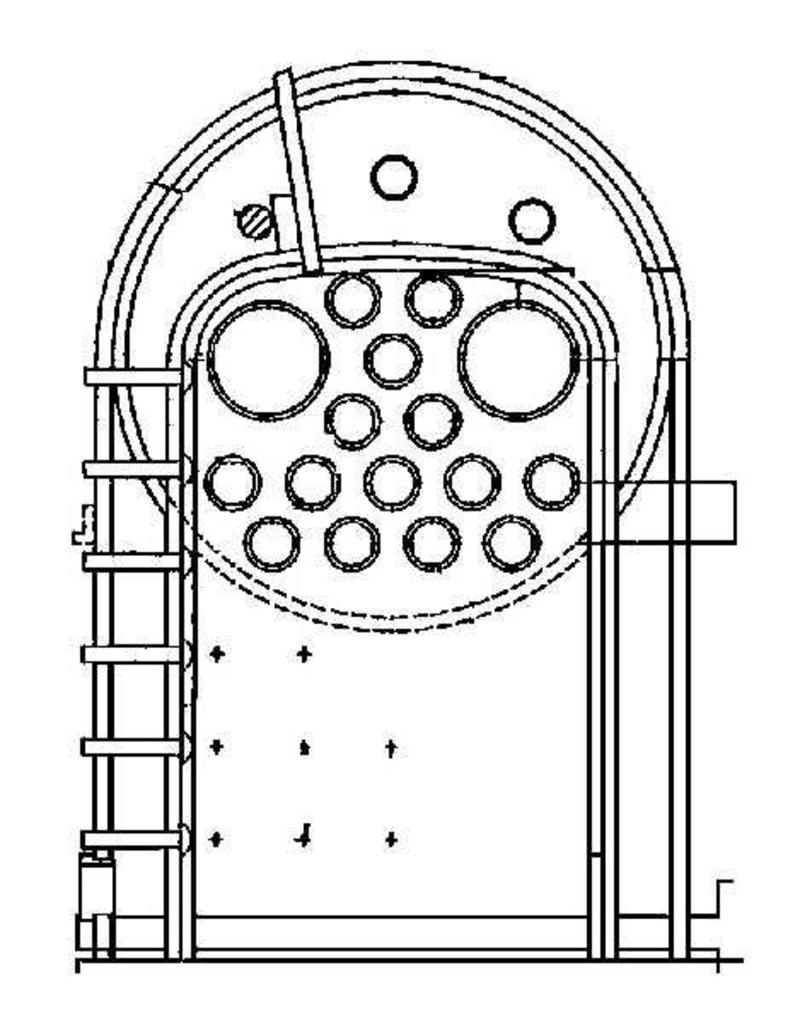

boiler for Crampton locomotive, for 5"-gauge (127 mm) |
|
Quality |
detailed construction drawing; |
|
Difficulty level |
D |
|
Scale |
1 : 11.3 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
2 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Special features |
The construction description for this locomotive appeared in "Onder Stoom", 1997 to 2002; this drawing is for builders who wish to have their boiler inspected by the NVM Safety Committee. |
|
Remarks |
