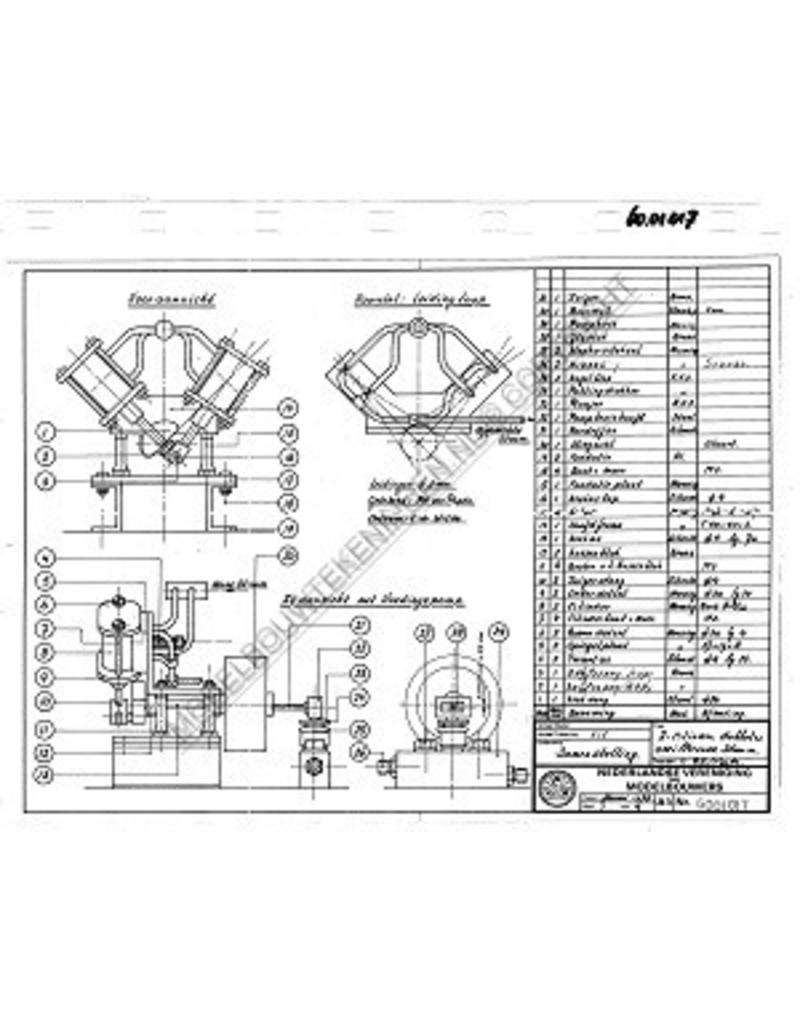

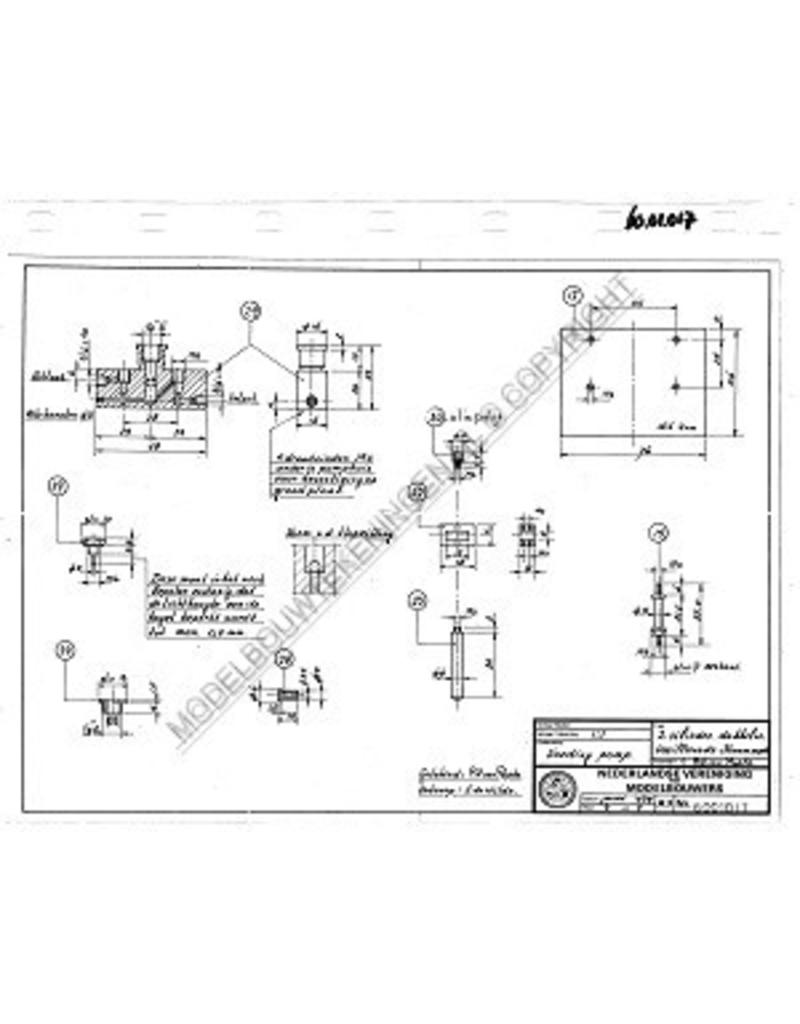

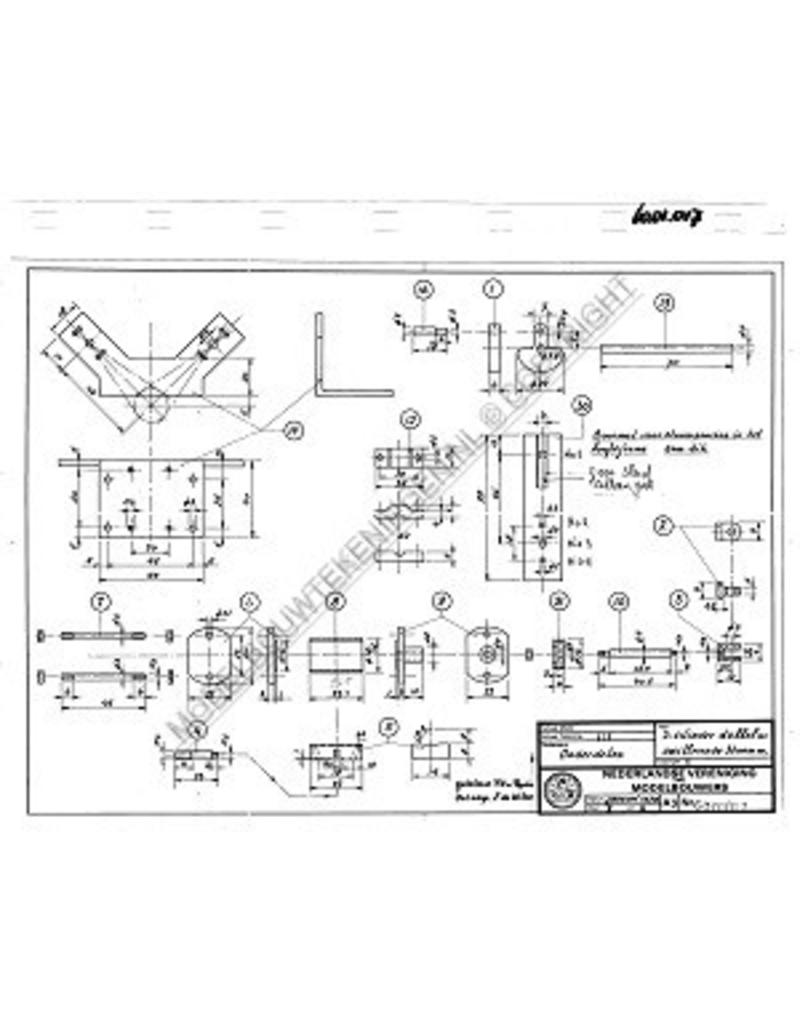

MBT 60.01.017 double-acting 2 cyl. oscillating steam engine with boiler

Drawing number

60.01.017

Author

P.H. van Popta

Description

double-acting 2 cyl. oscillating steam engine with boiler

Quality

Difficulty level

B

Scale

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

4

Number of sheets A4

0

Total number of drawing sheets

4

Number of A4 text sheets

0

Weight in grams

65

Details

dM 1979/5,7,8

Copy article: 32.01.017 (3 pages)

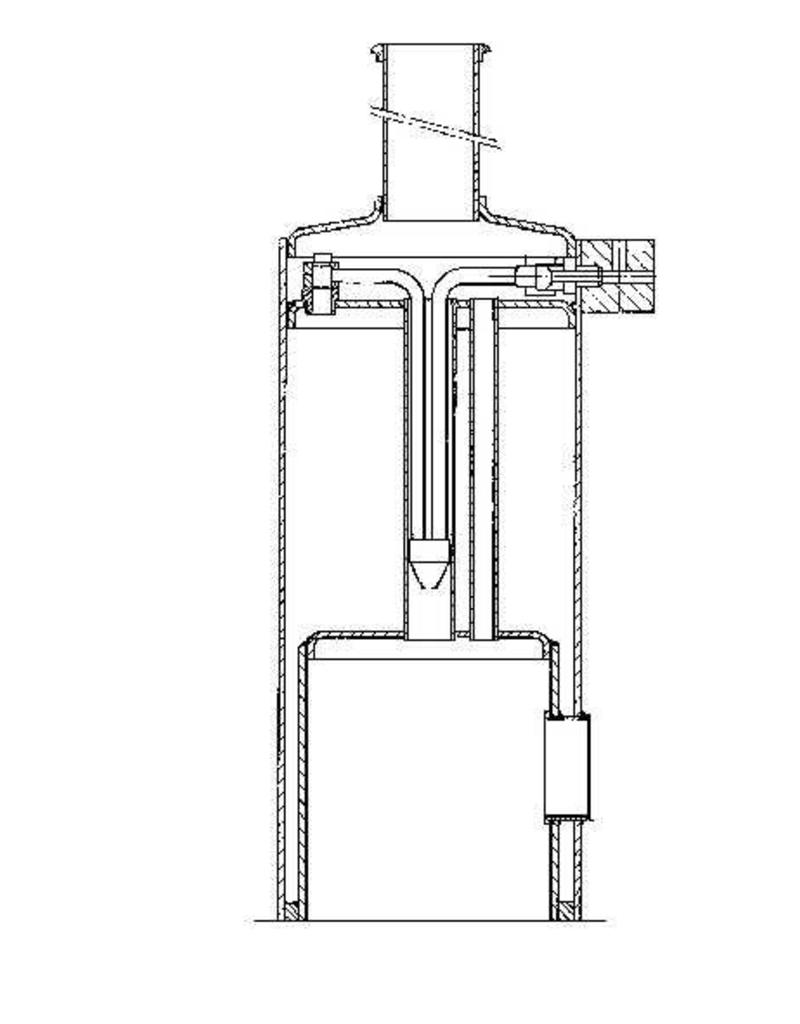

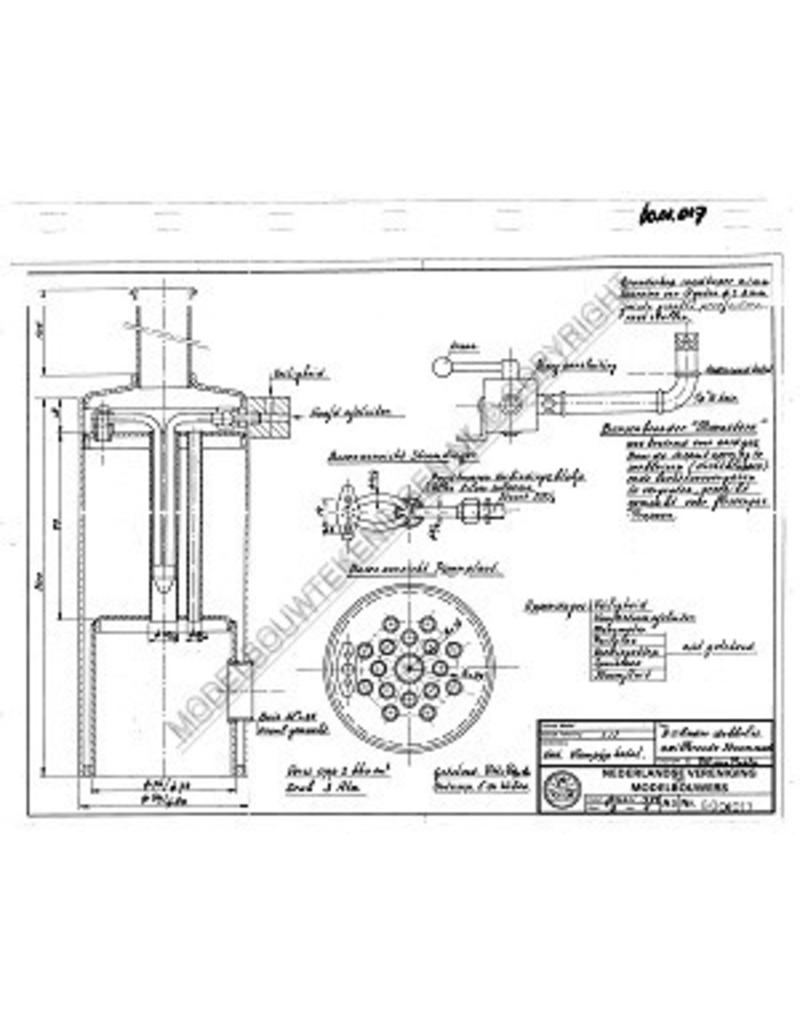

LxWxH: 120x70x110; bore x stroke: 16x18 mm; flywheel diam. 50 mm; incl. vertical boiler and feed pump; gas-fired, 3 bar; boiler diam. 89 mm
