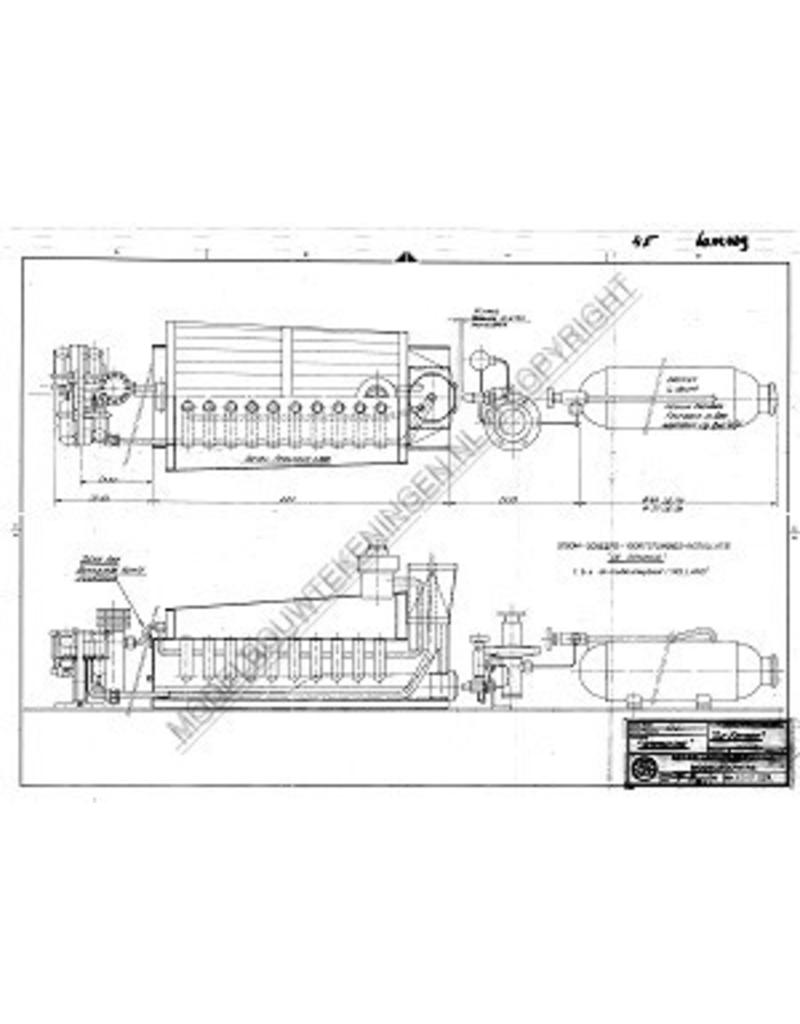

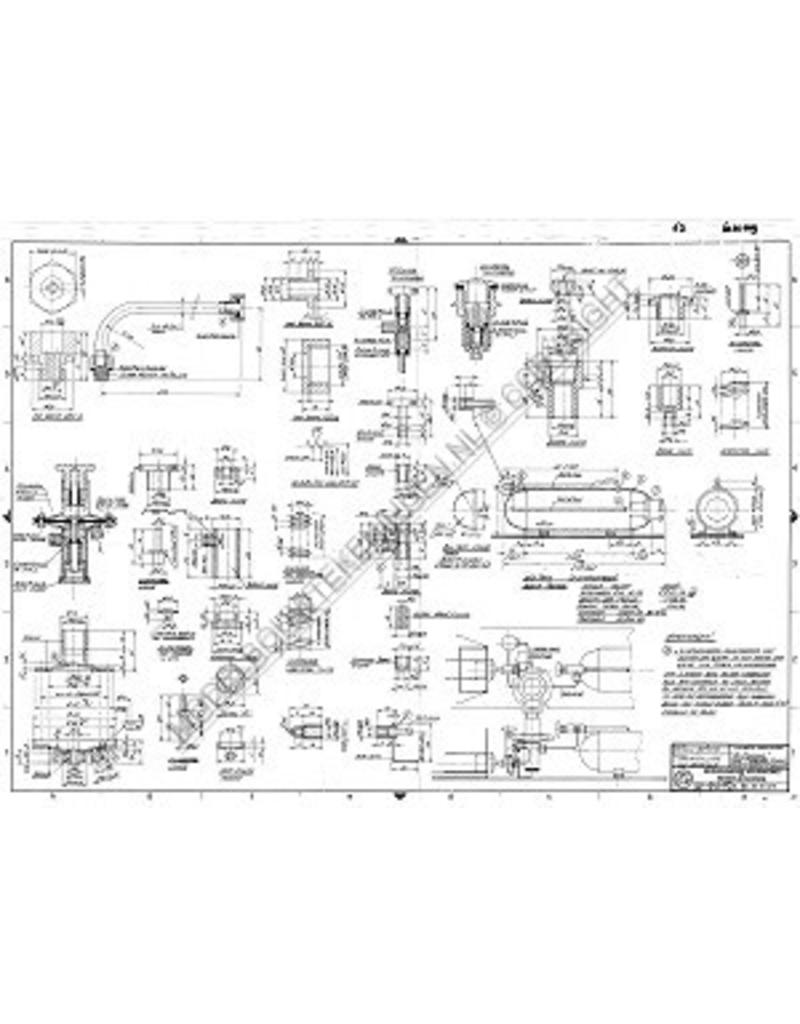

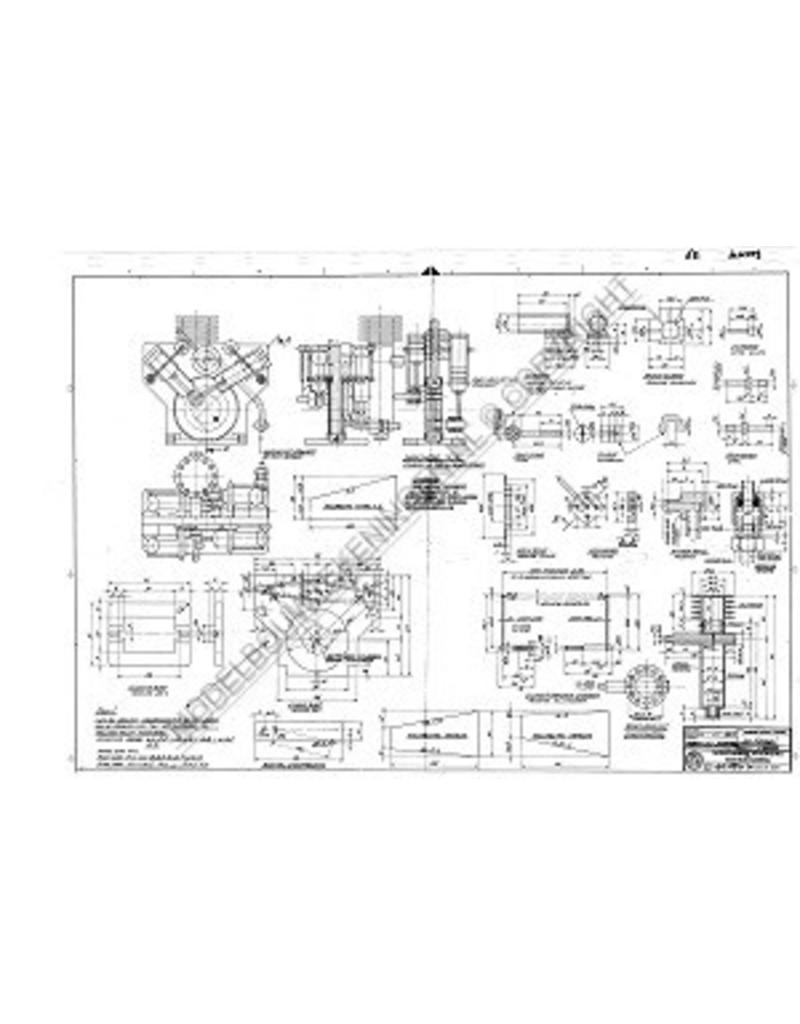

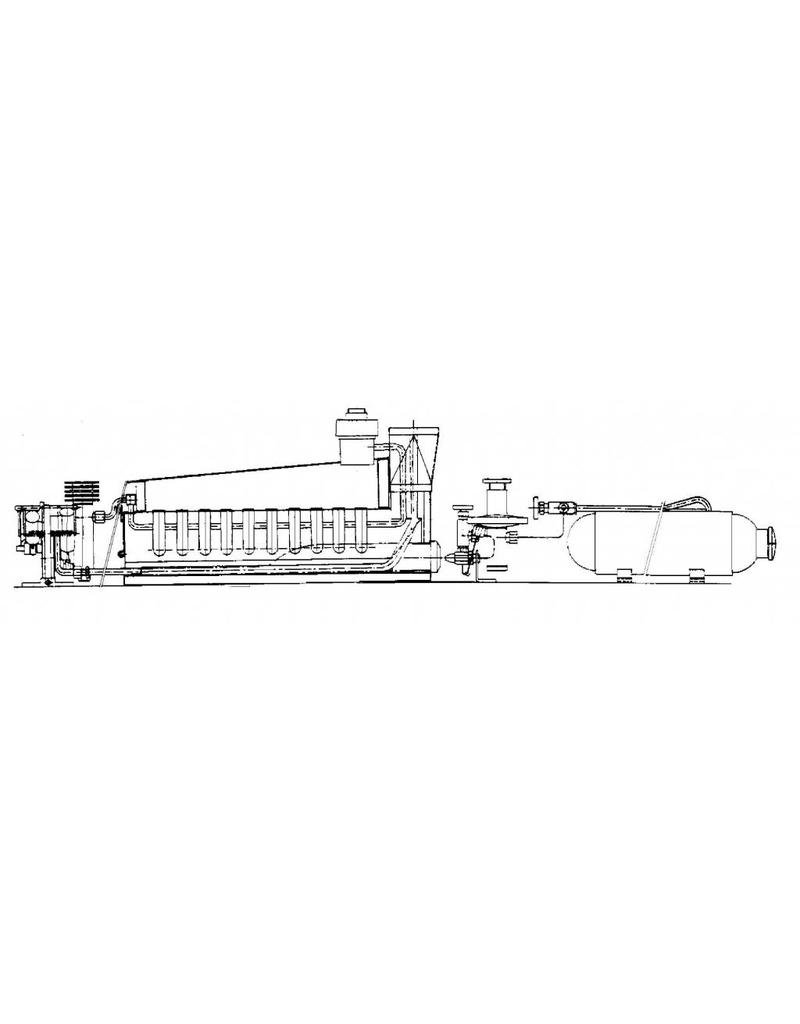

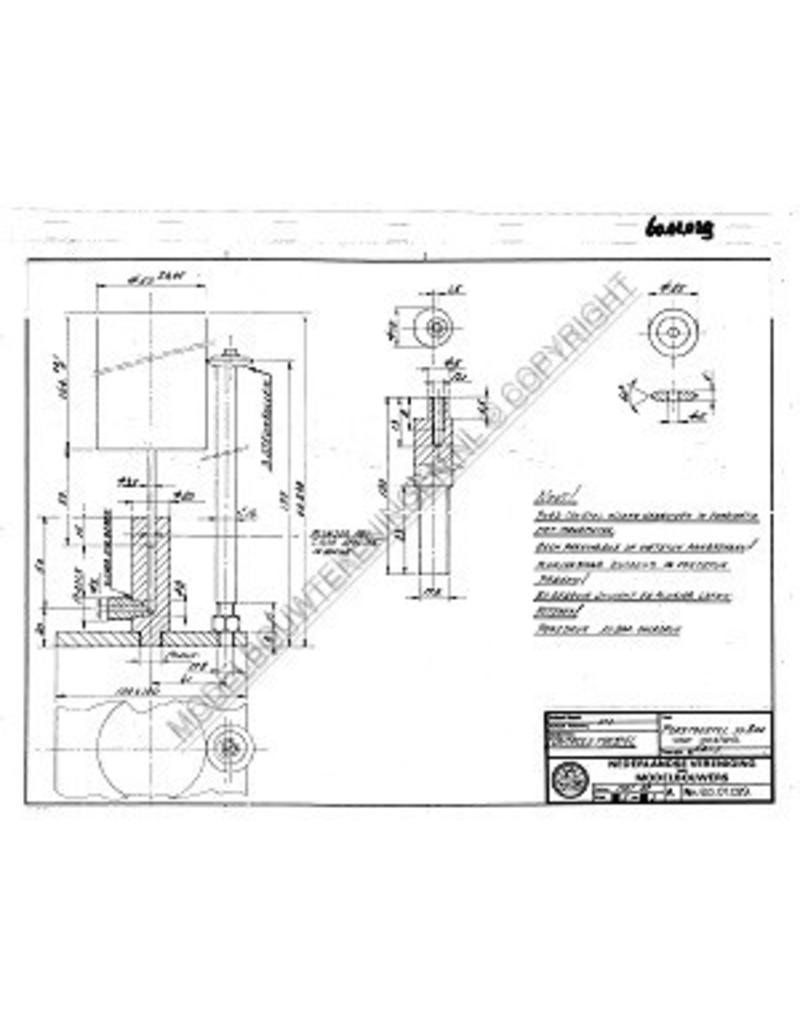

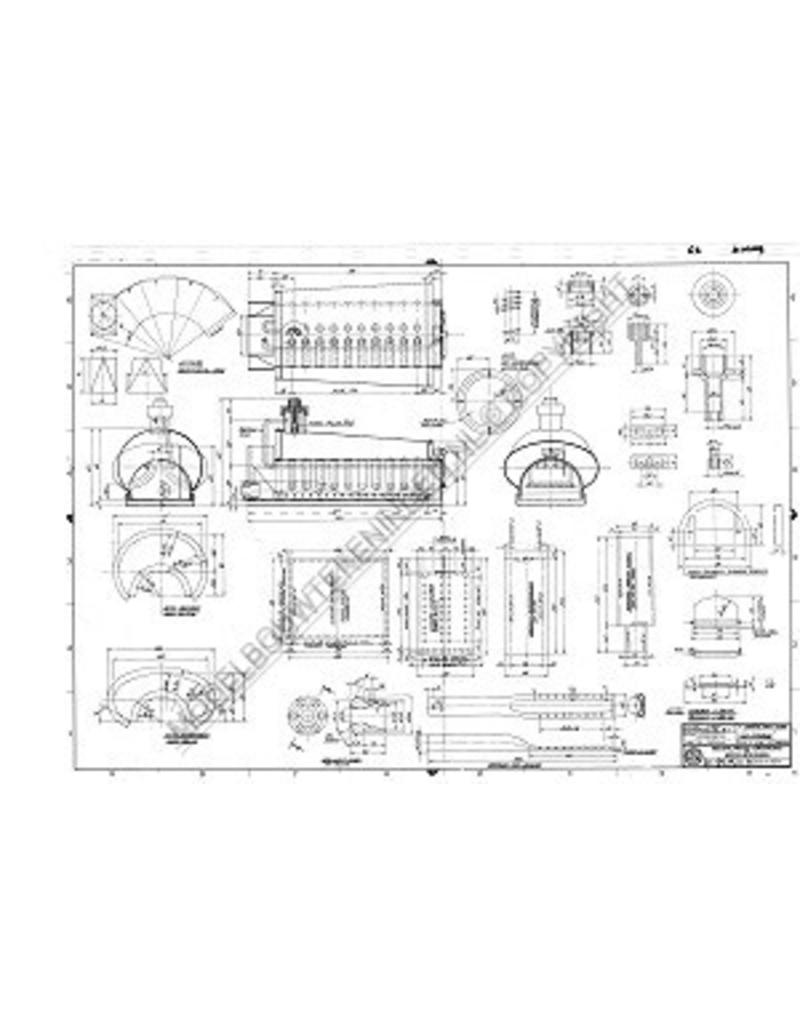

MBT 60.01.029 Marine Steam Plant The Simplicity

Drawing Number

60.01.029

Author

F. Brouwer/Bunt

Description

marine steam plant The Simplicity

Quality

Difficulty Level

D

Scale

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

4

Number of A2 sheets

0

Number of A3 sheets

1

Number of A4 sheets

0

Total number of drawing sheets

5

Number of A4 text sheets

0

Weight in grams

175

Particulars

signed by K. Tersteege

dM 1990/1 to 11, 1991/3

Copy article: 62.01.029 (16 pages)

lxwxh: 660x130x115; 4 cyl osc. engine, bore x stroke: 8x16 mm; gas-fired, 3 bar

This installation was designed for installation in the tug "Holland" (10.14.056)
