MBT Tandem Compound Machine - Construction Drawing Scale 1 : N/A (60.01.035)

Drawing number

60.01.035

Author

B.H.M. Loring

Description

tandem compound machine

Quality

incl. BB (13 pages)

Difficulty level

D

Scale

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

16

Number of A2 sheets

0

Number of A3 sheets

0

Number of A4 sheets

13

Total number of drawing sheets

29

Number of A4 text sheets

0

Weight in grams

720

Details

dM 1990/2, 1992/6,10

Copy article: 62.01.035 (7 pages)

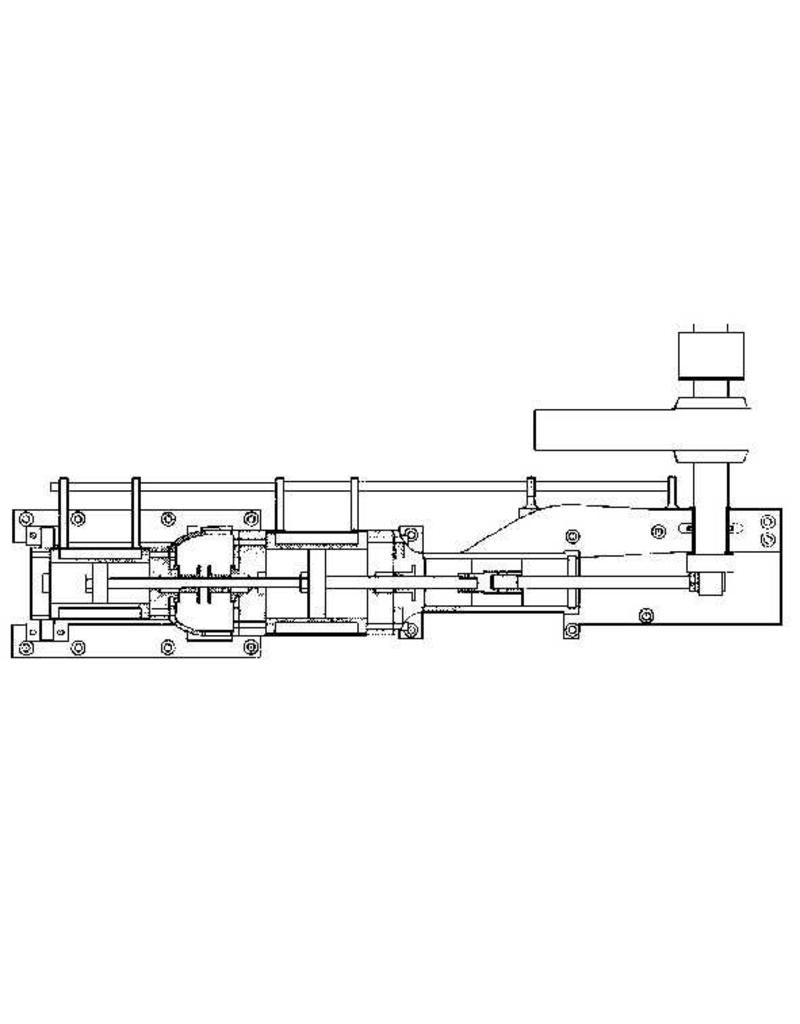

LxW: 970x 380 mm; bore x stroke: 45/75 x 90 mm; flywheel diam. 380 mm

Remarks

check BB
