| Article number: | 60.01.047 |
Specifications :
|
Drawing number |
60.01.047 |
|
Author |
J.R. Holman |
|
Description |

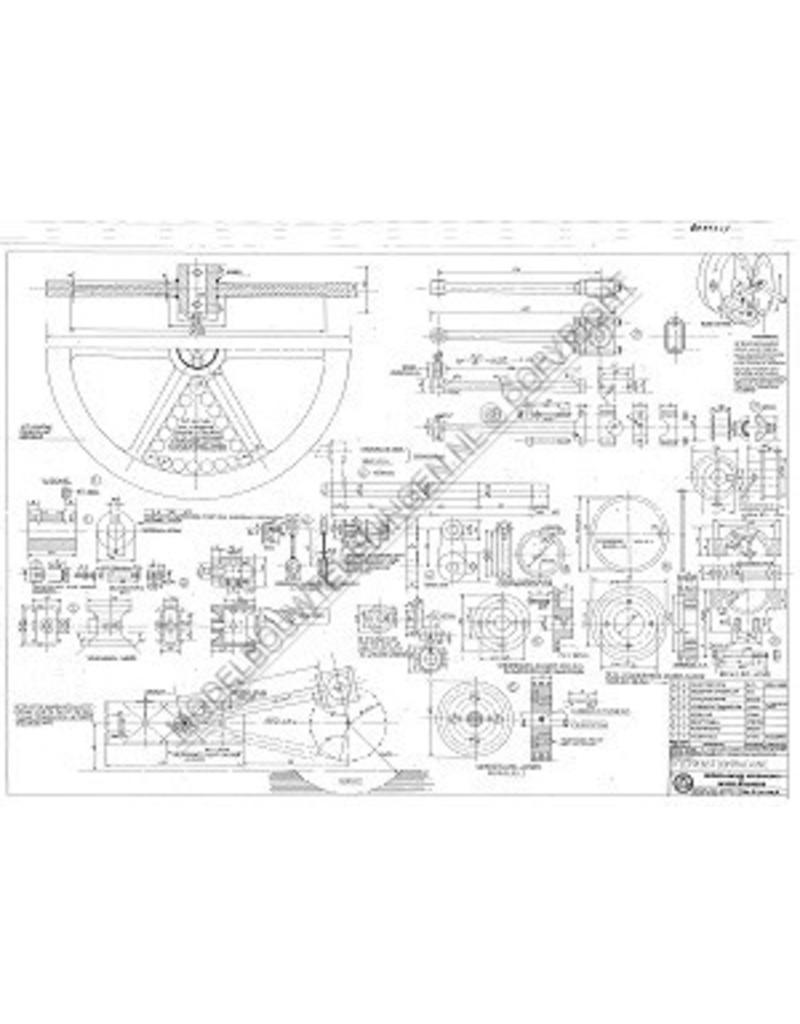

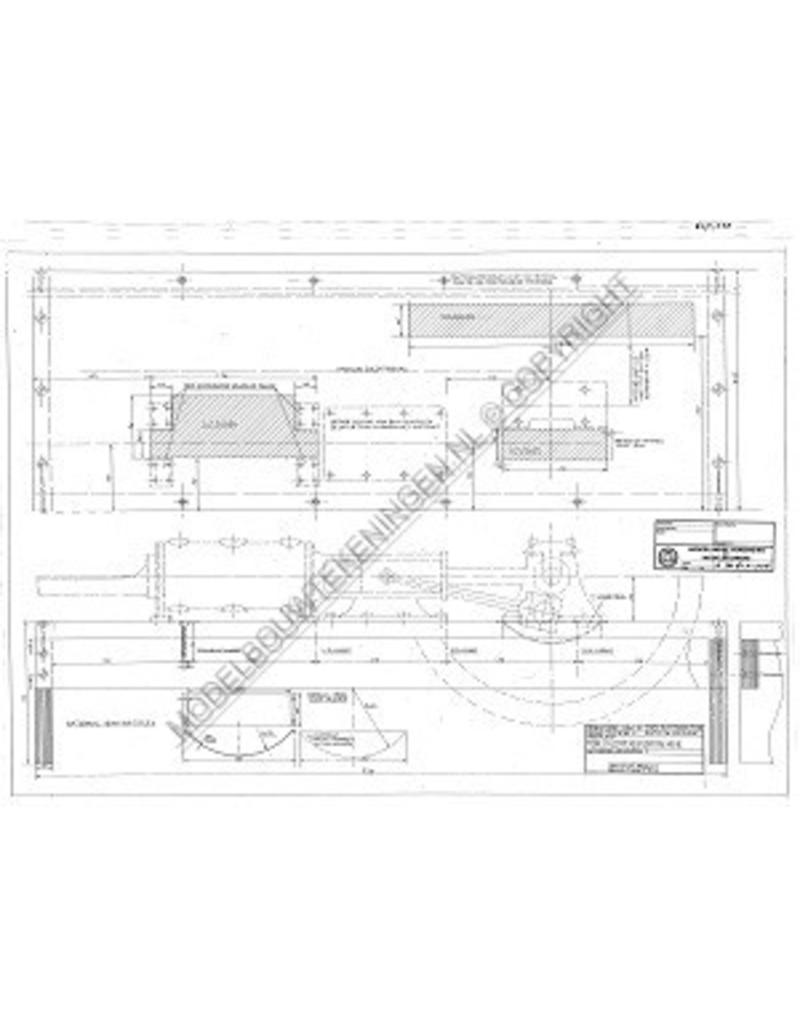

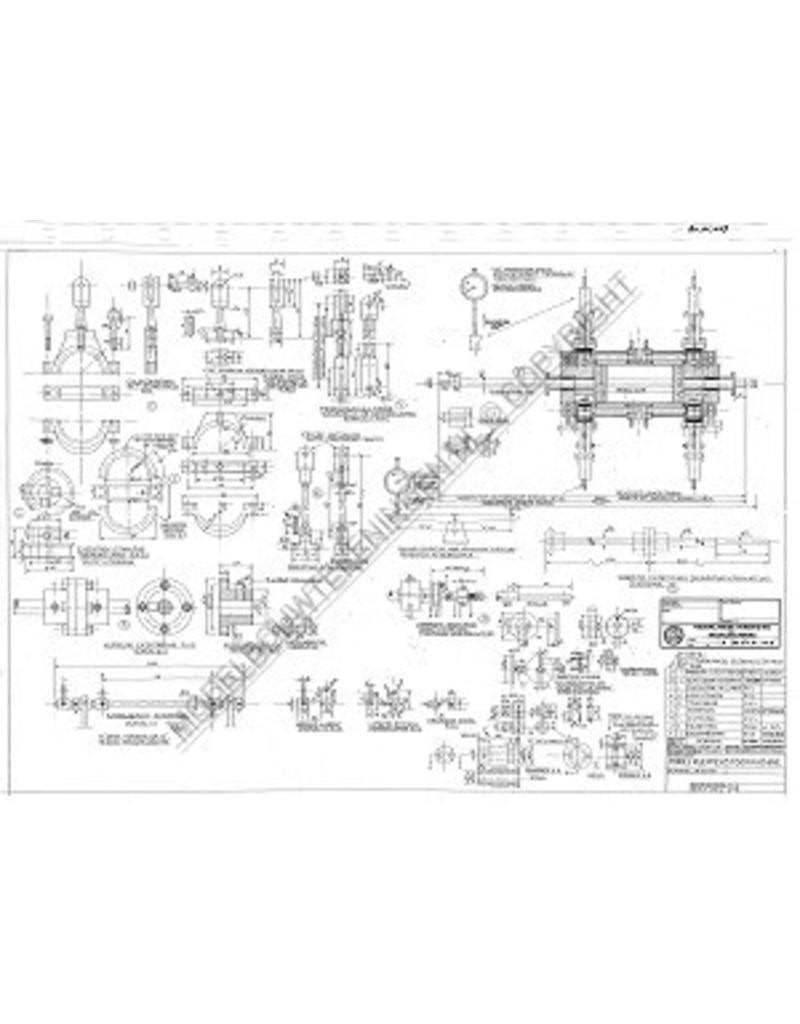

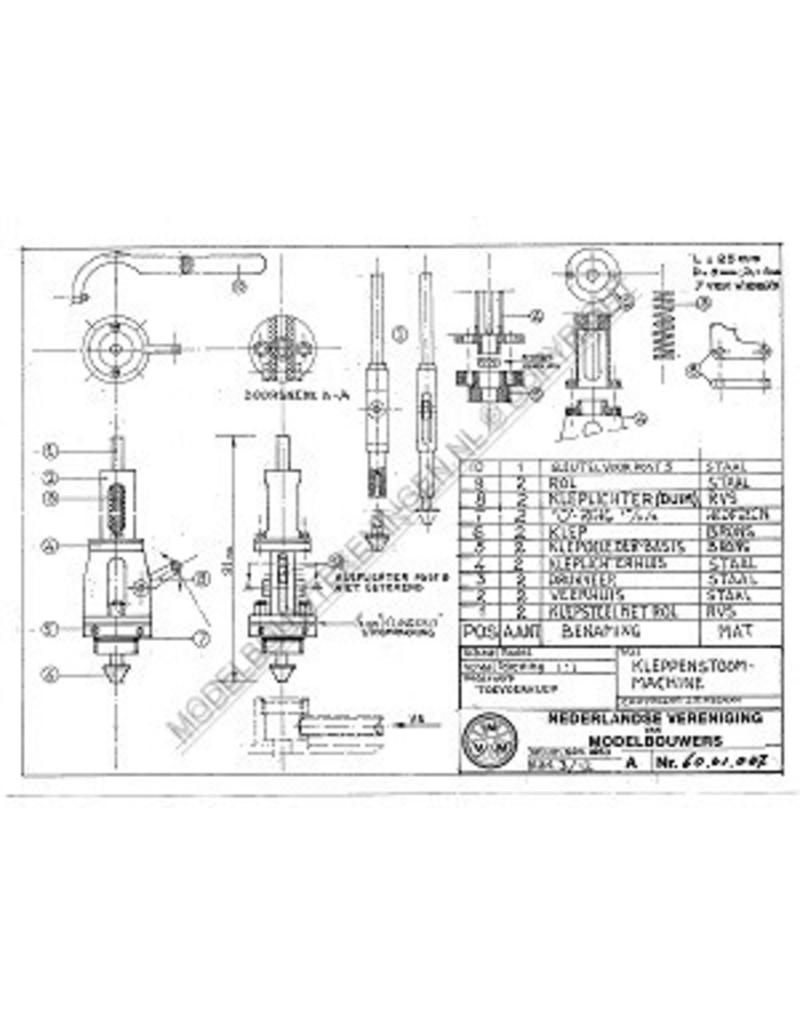

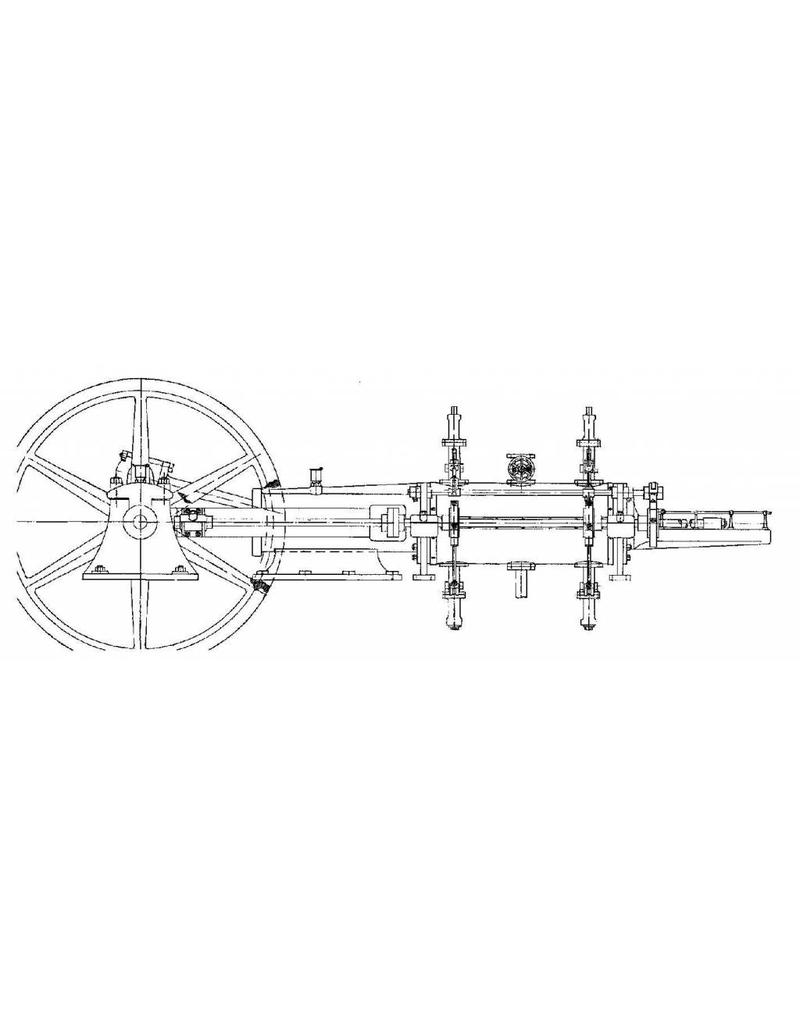

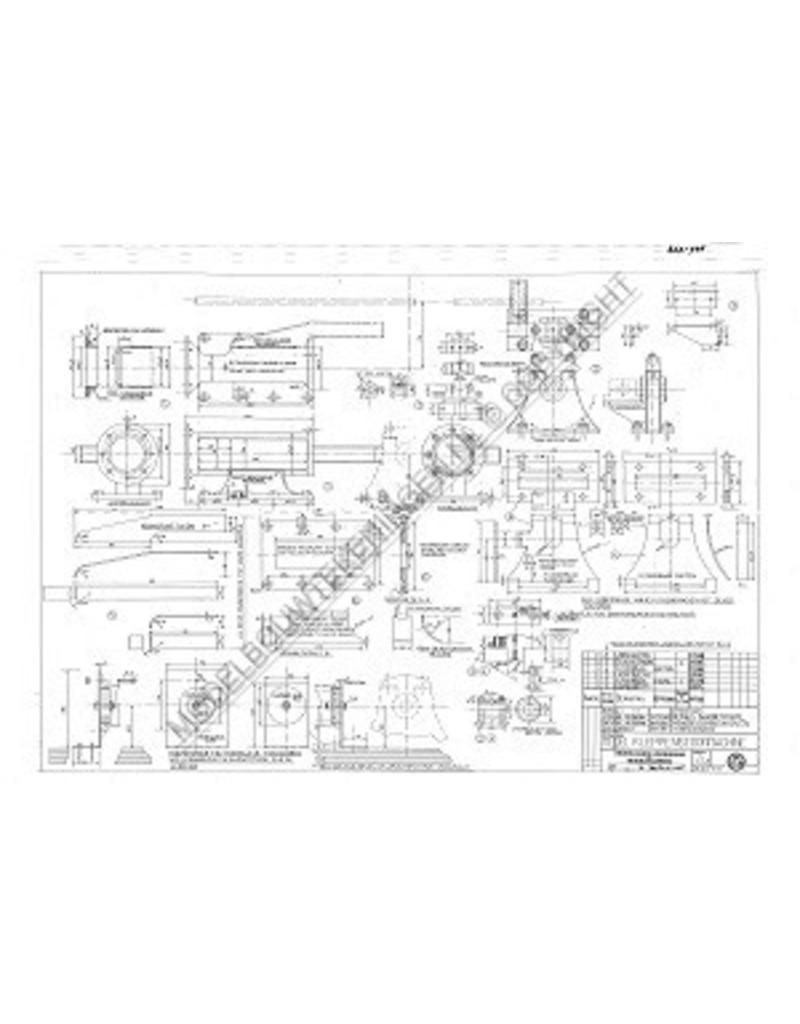

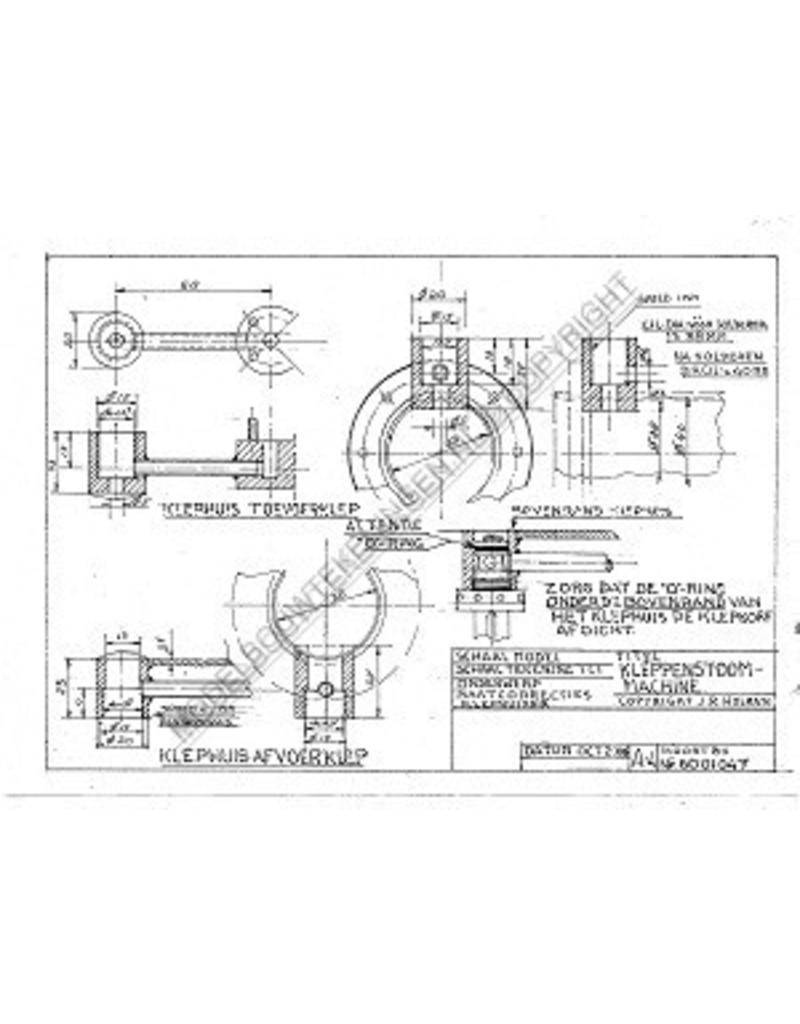

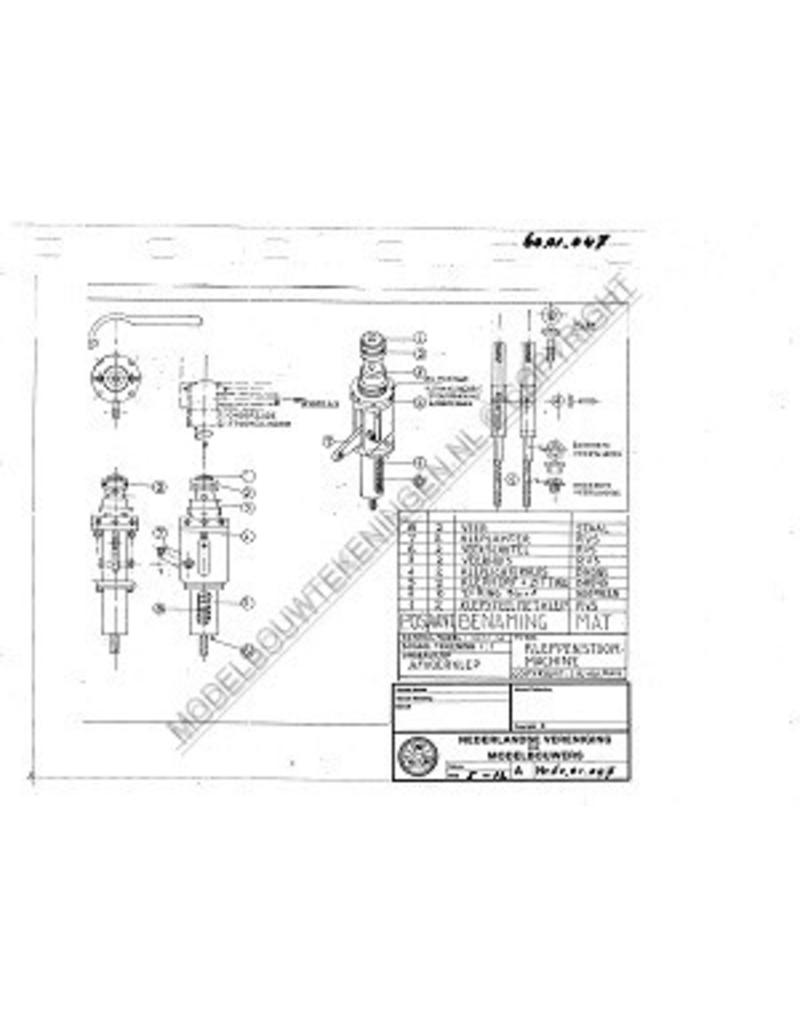

Lentz valve steam engine |
|
Quality |
|
|
Difficulty level |
D |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
6 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
20 |
|
Total number of drawing sheets |
27 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
370 |
|
Special features |
dM 2005/5,9,10; 2006/3,5; 2007/1,3 |
|
Notes |
