| Article number: | 60.01.053 |
Specifications :
|
Drawing number |
60.01.053 |
|
Author |
J.A.M. de Waal |
|
Description |

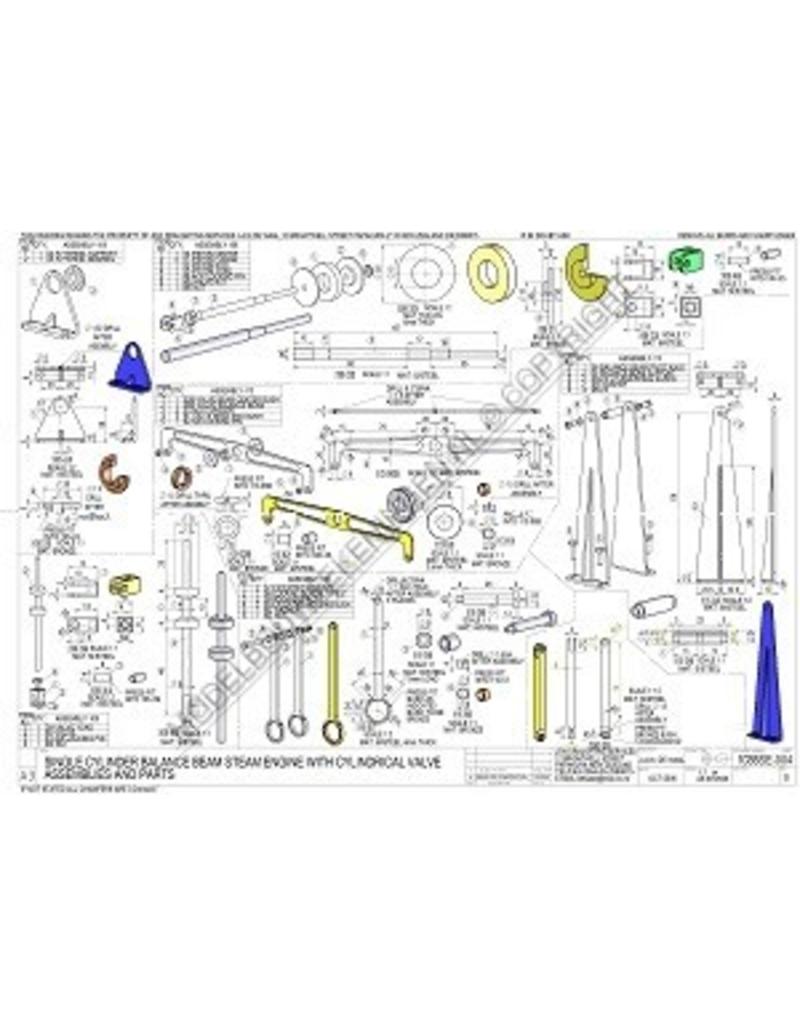

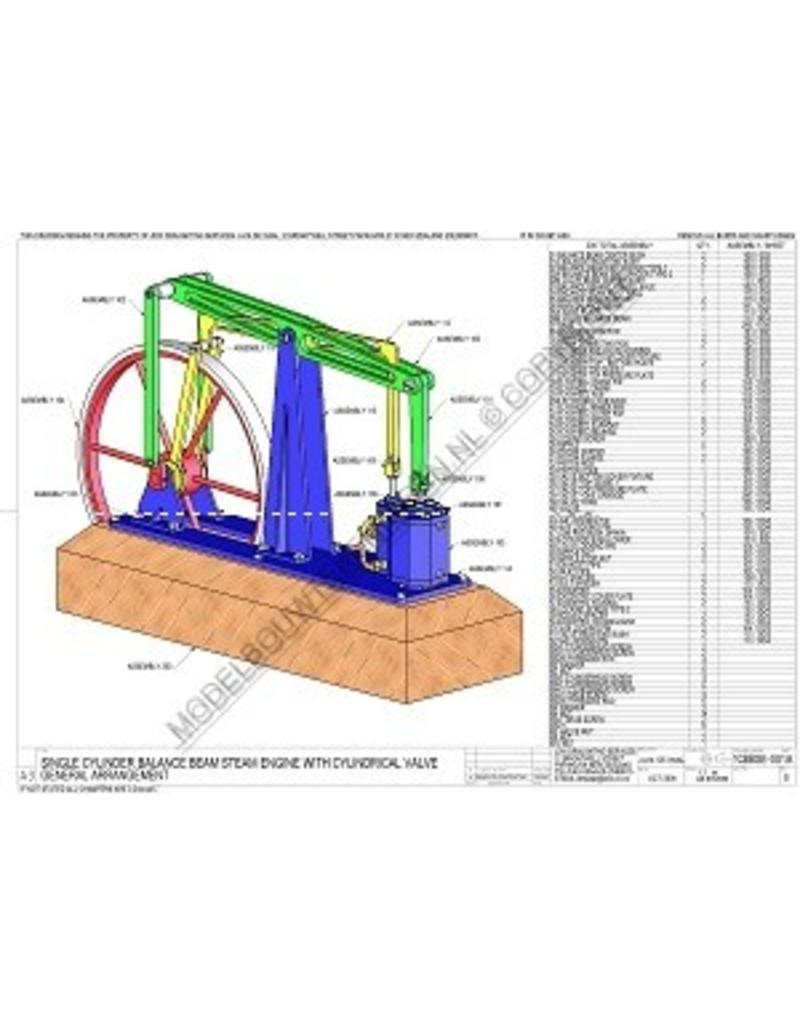

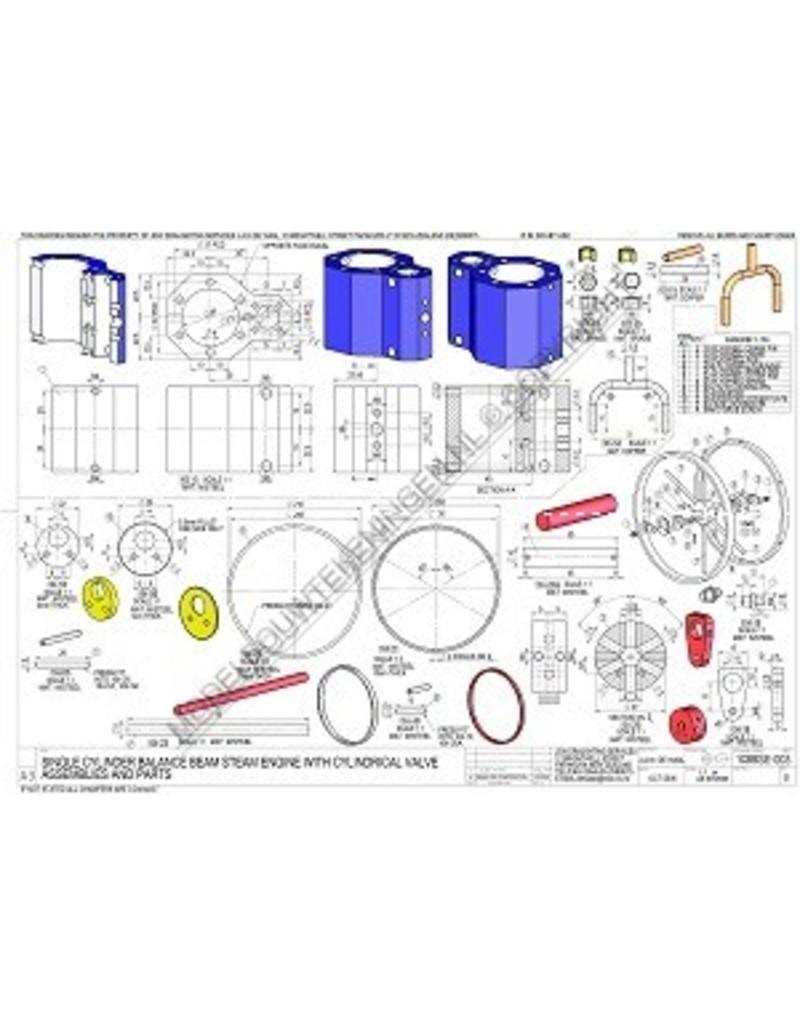

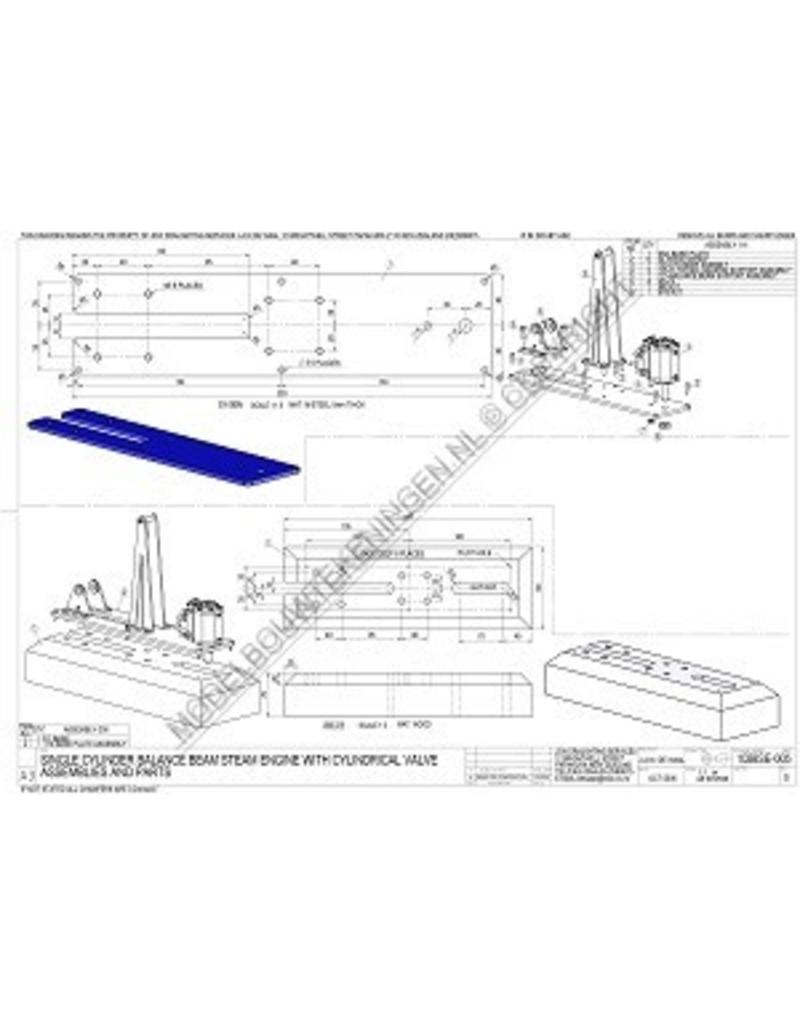

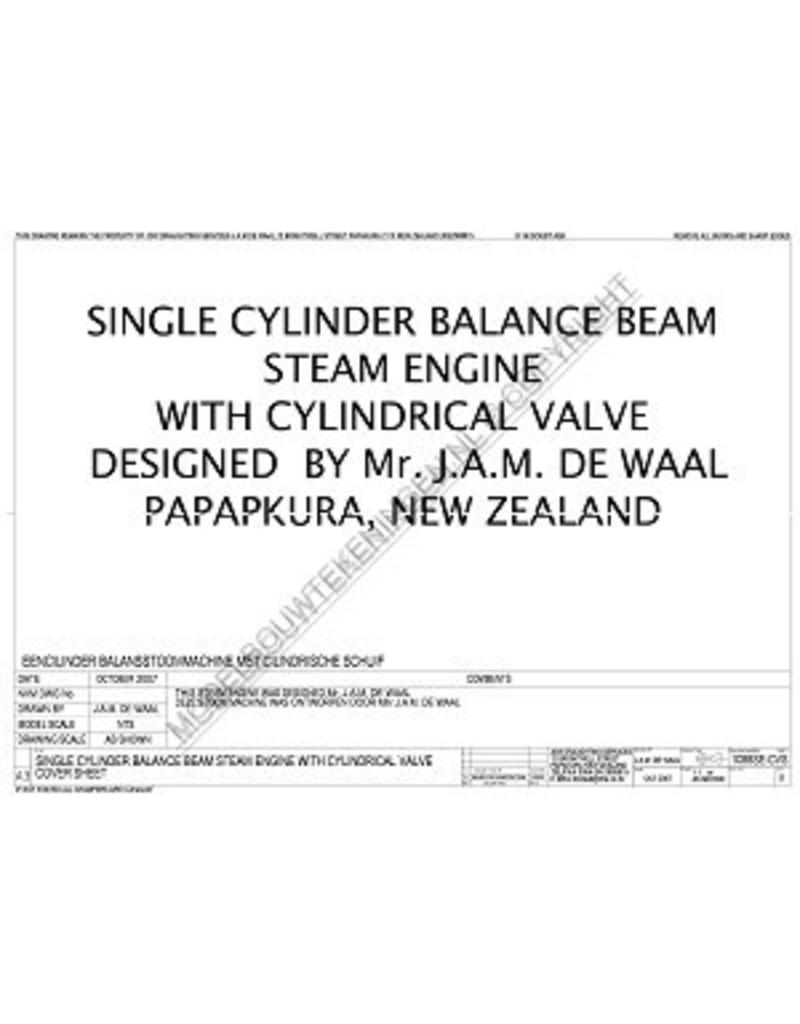

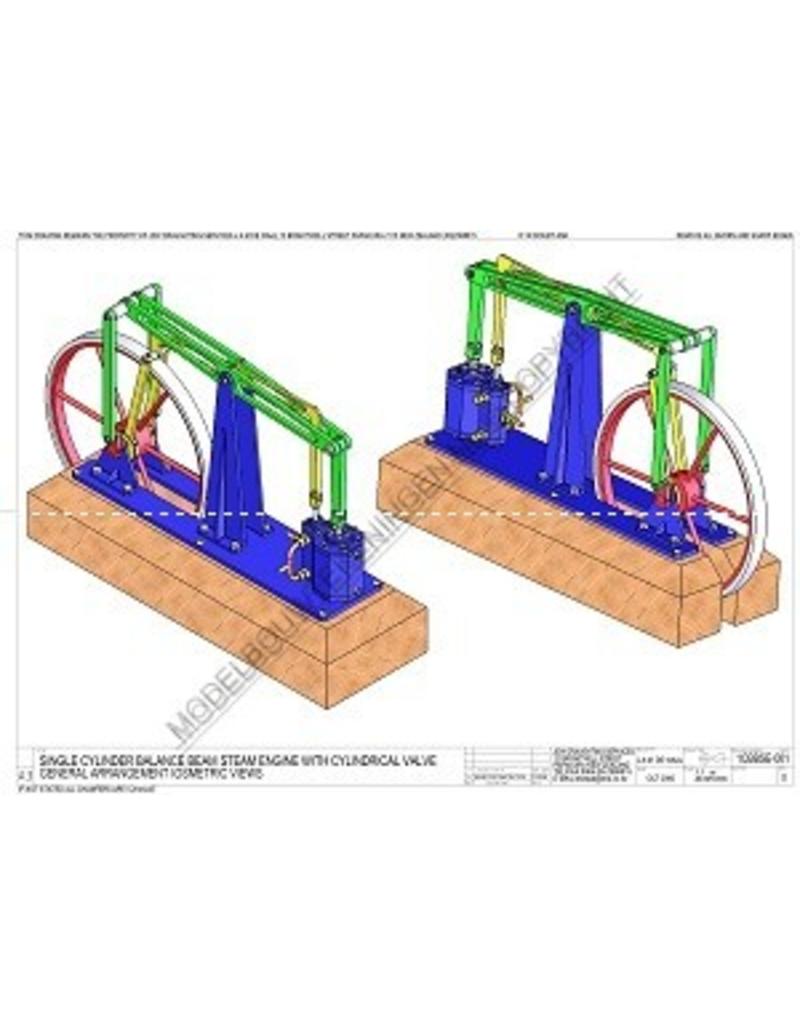

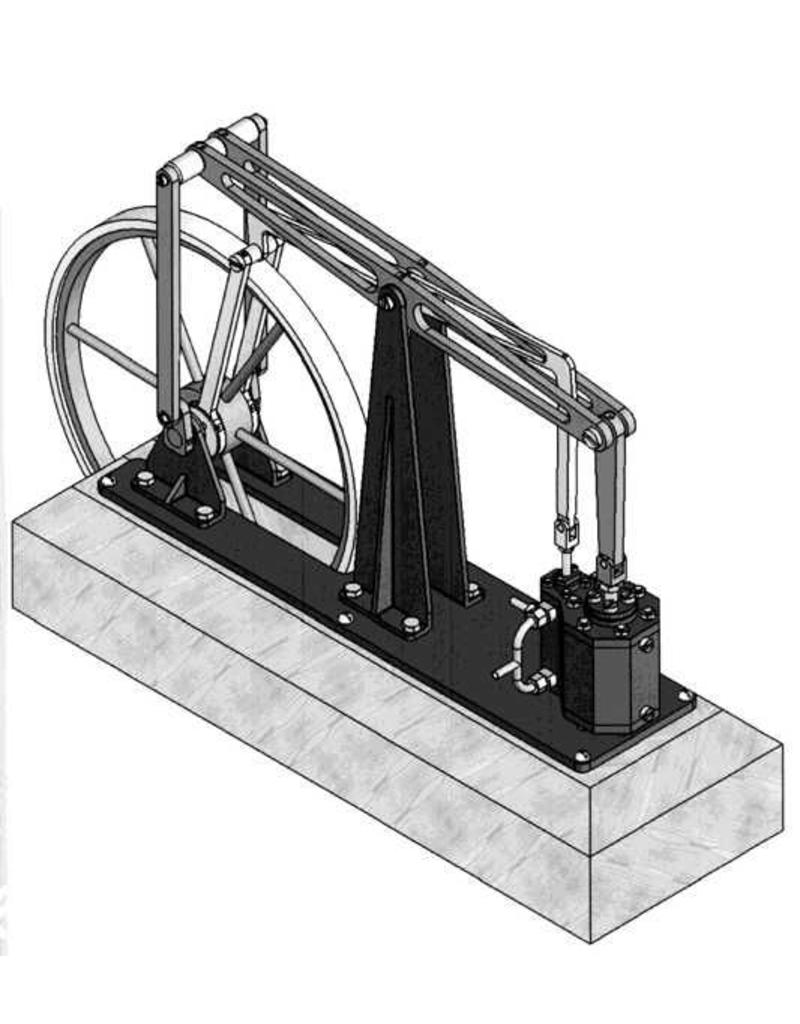

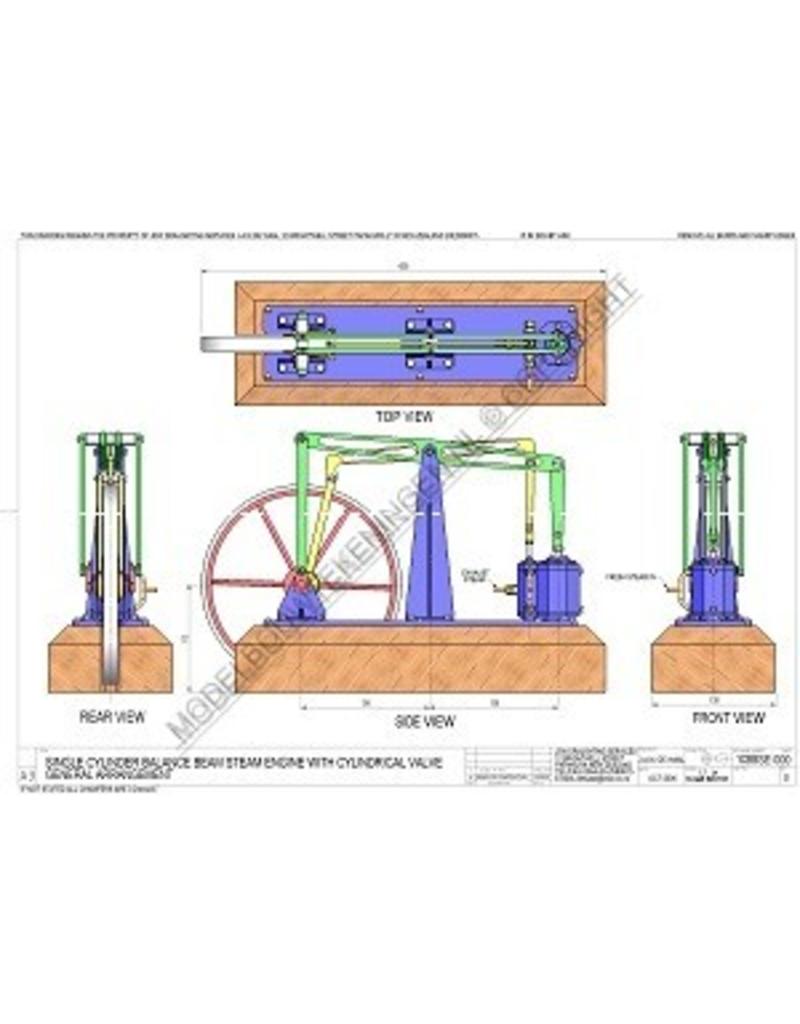

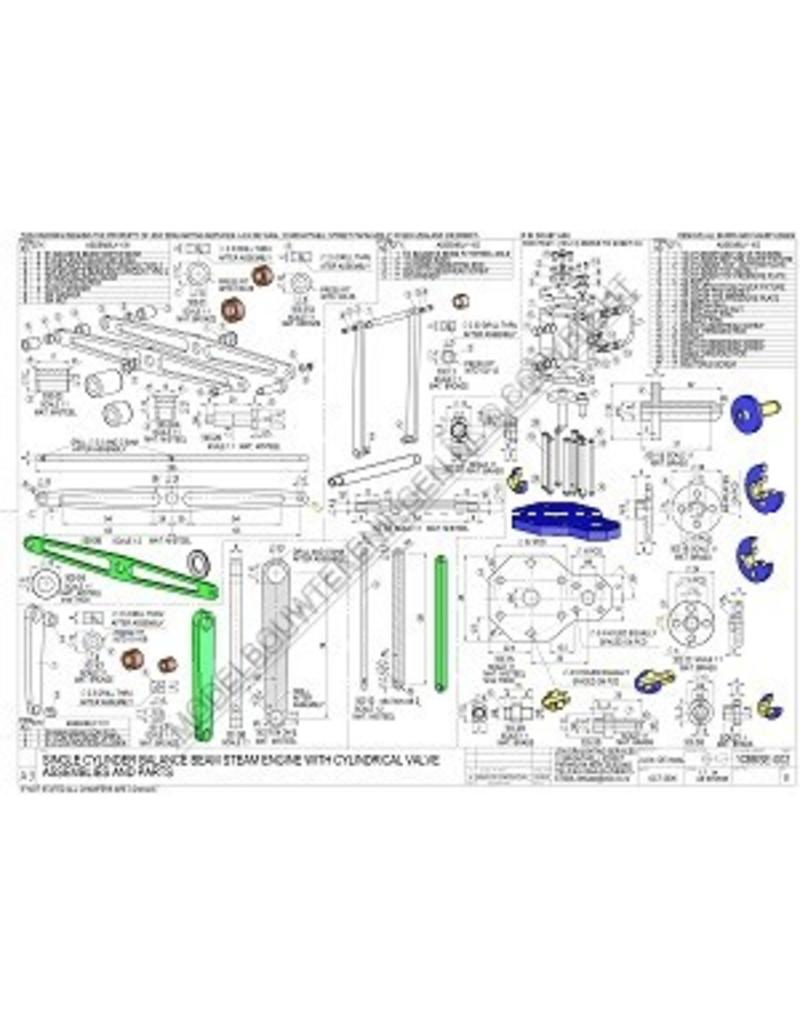

CD - single-cylinder beam steam engine with cylindrical slide valve |
|
Quality |
complete detailed drawing in Solid Works; files in .pdf and utility program |
|
Difficulty level |
C |
|
Scale |
1 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
0 |
|
Special features |
The CD contains the Solid Works files, the drawings in .pdf and .dxf format, animations, and a utility program to read Solid Works drawings. |
|
Remarks |
